DTC C1916: Malfunction in Rear Active Stabilizer Control ECU Local CAN Transmission: Wiring Diagram

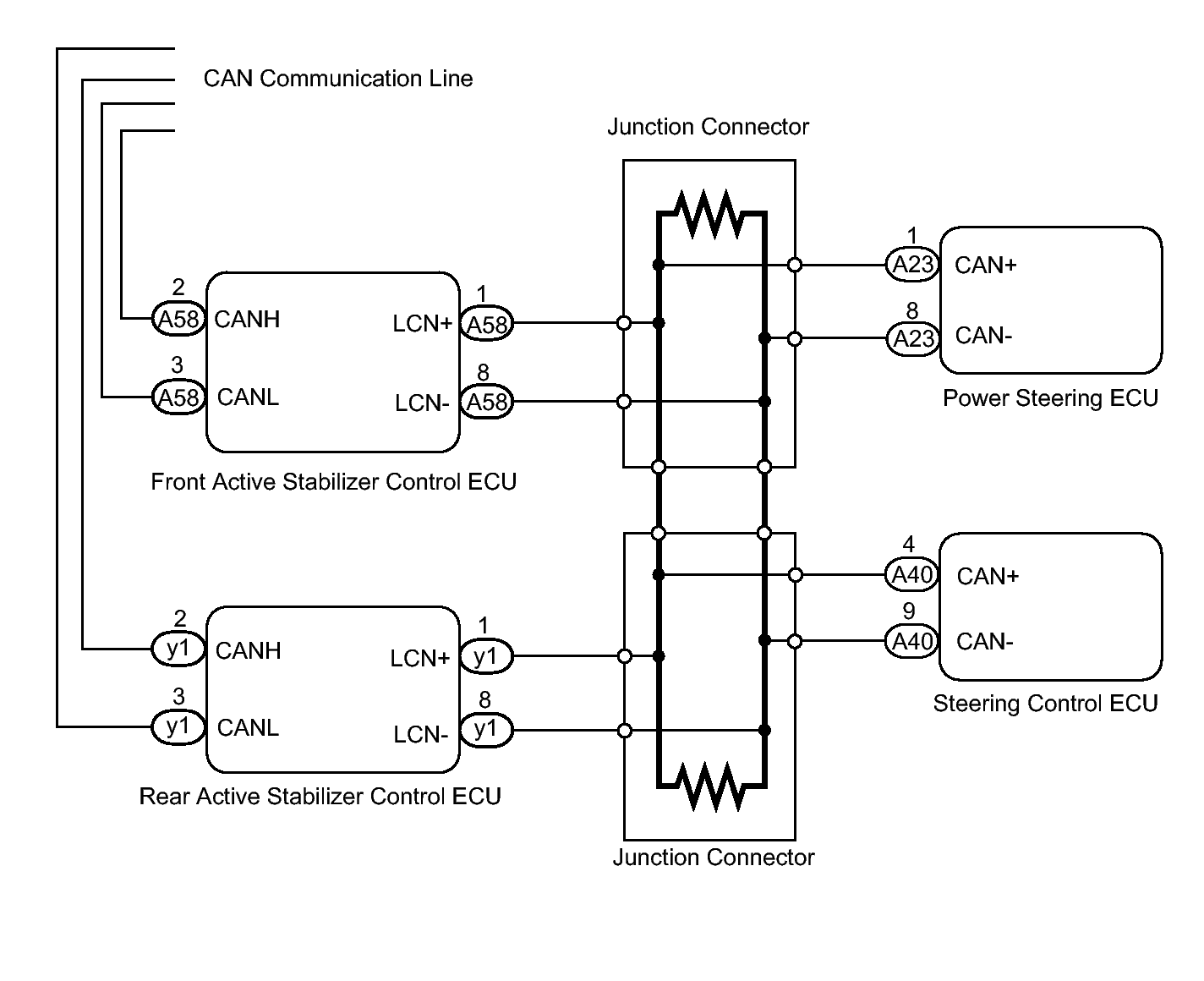

Fig 1: Front And Rear Active Stabilizer Control ECU - Wiring Diagram
GTY111737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
