Passenger Side Junction Block ECU Power Source Circuit: Wiring Diagram

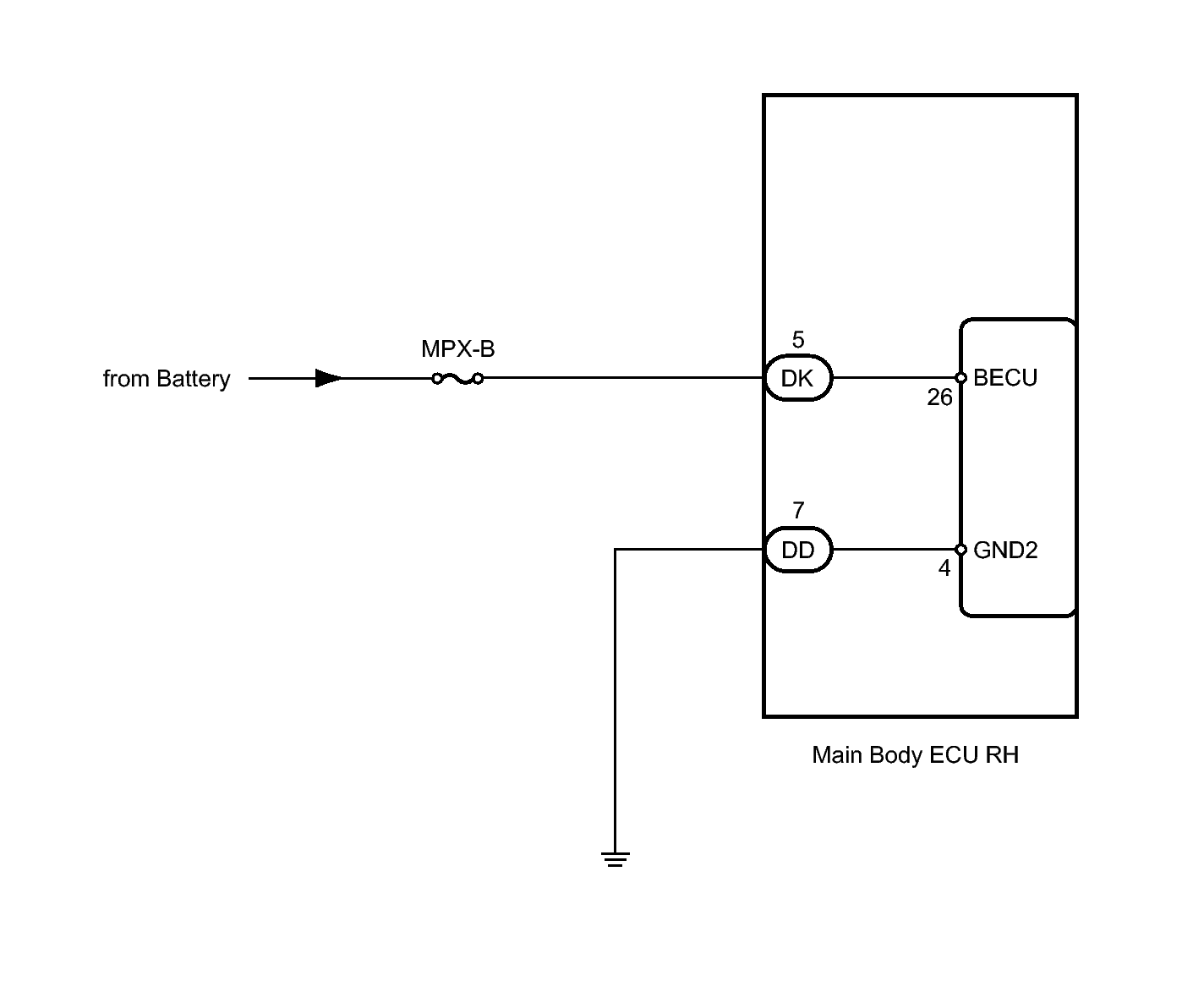

Fig 1: Main Body ECU RH - Wiring Diagram

GTY133654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
