Parts Location: Illustration

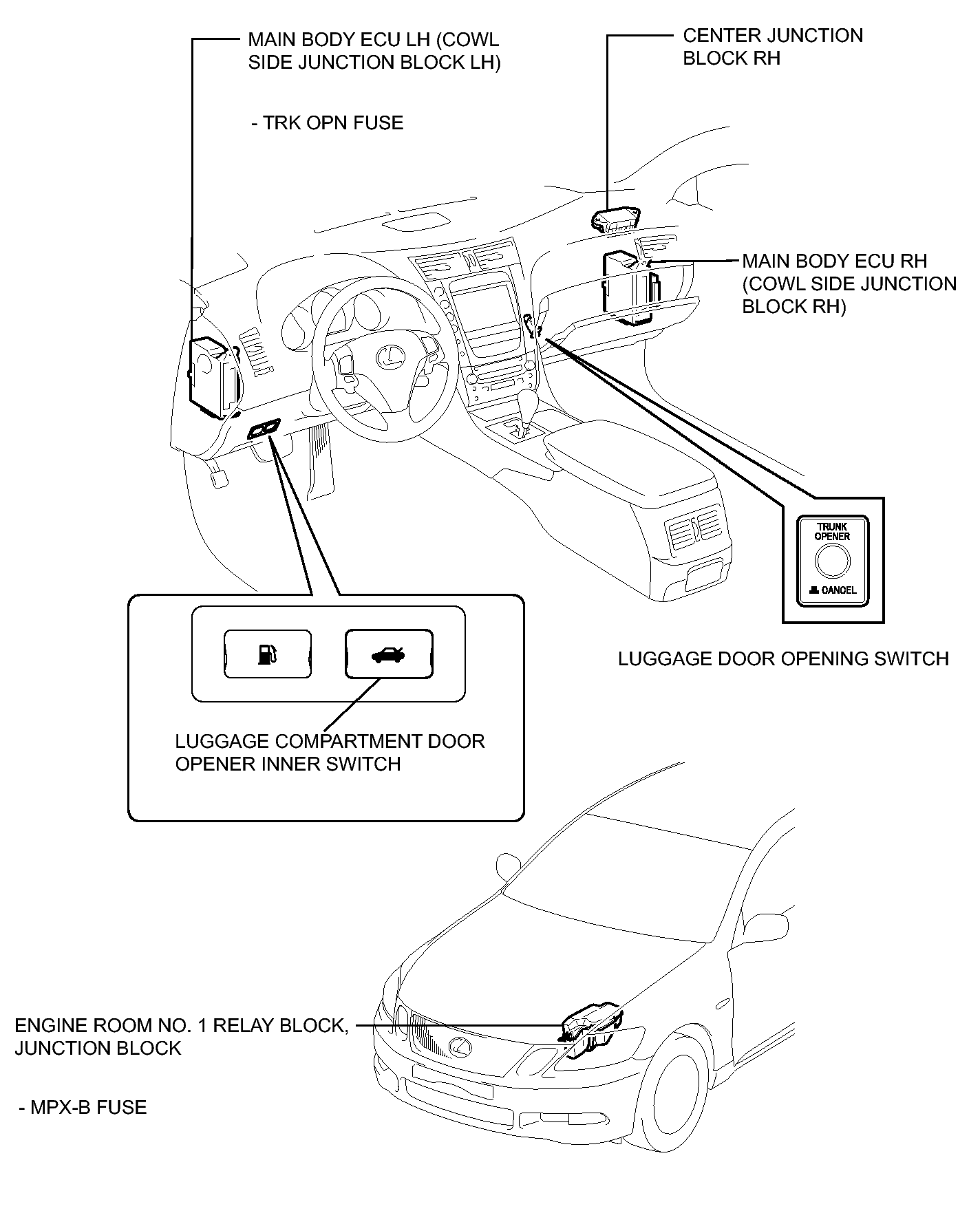

Fig 1: Identifying Luggage Compartment Door Opener Parts Location (1 Of 2)
GTY288904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

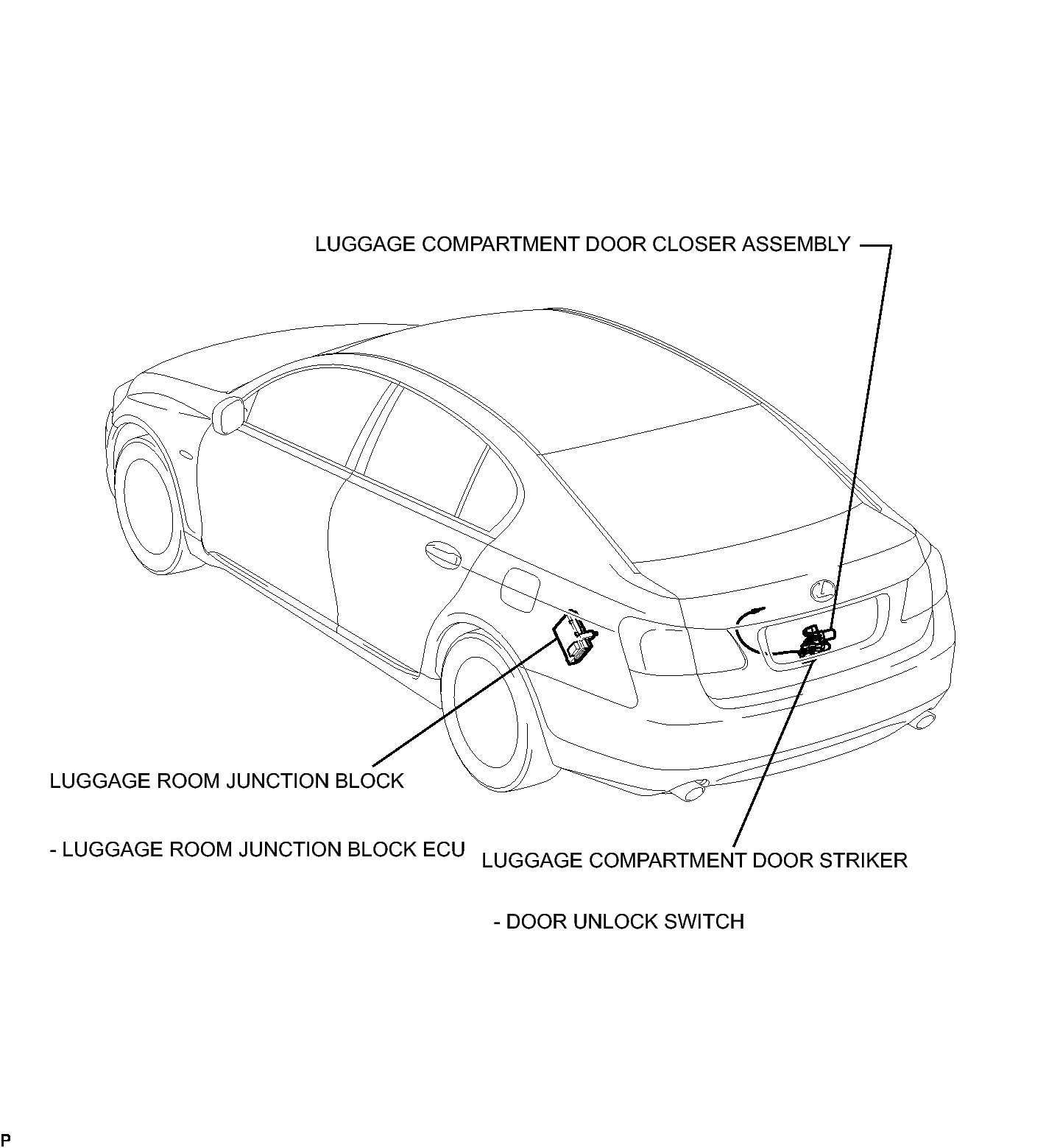

Fig 1: Identifying Luggage Compartment Door Opener Parts Location (2 Of 2)
GTY283926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
