Luggage Compartment Door Opener Switch Circuit: Wiring Diagram

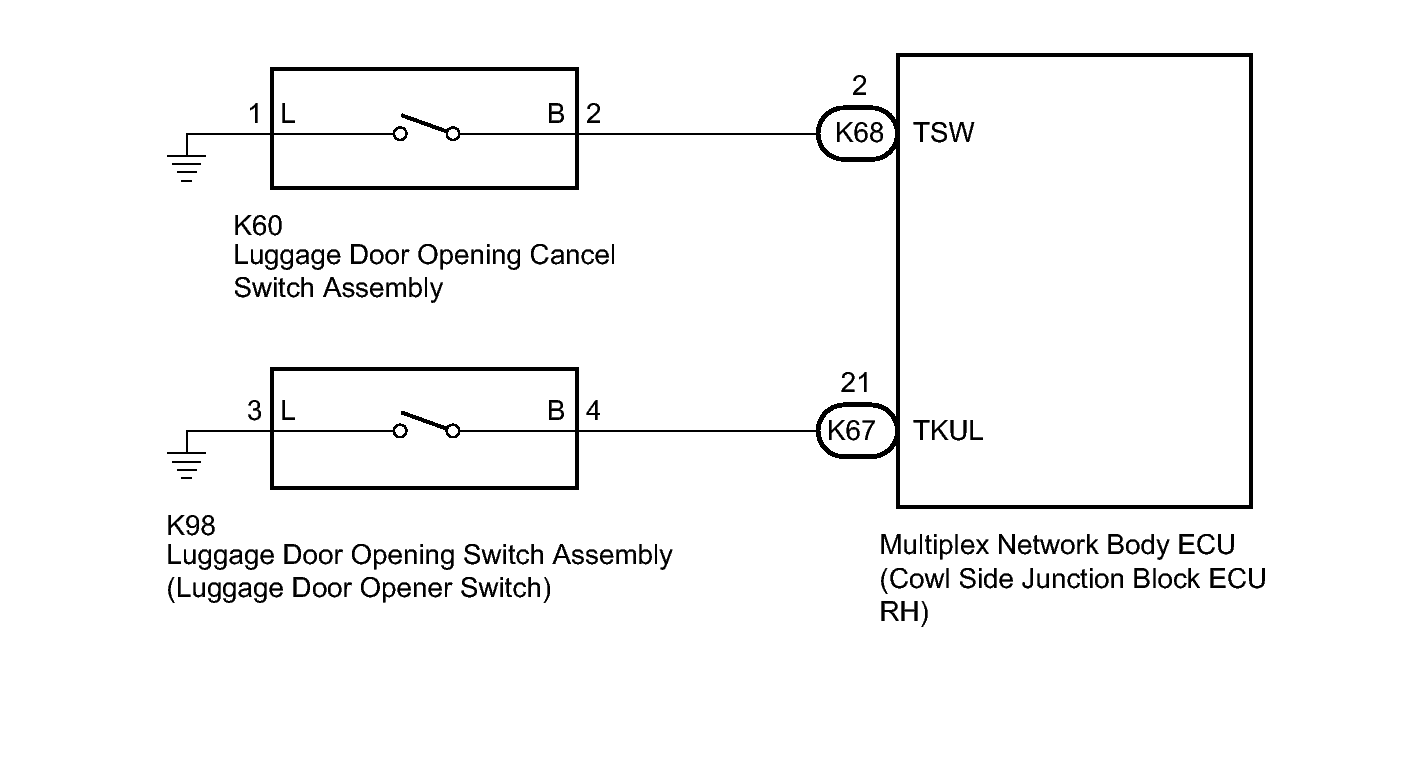

Fig 1: Luggage Compartment Door Opener Switch - Wiring Diagram

GTY135404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
