Driver Side Junction Block ECU Power Source Circuit: Procedure

1. Remove the TRK OPN fuse from the main body ECU LH.
2. Remove the MPX-B fuse from the engine room No. 1 relay block.
3. Measure the resistance of the fuses.

   Standard resistance

   Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

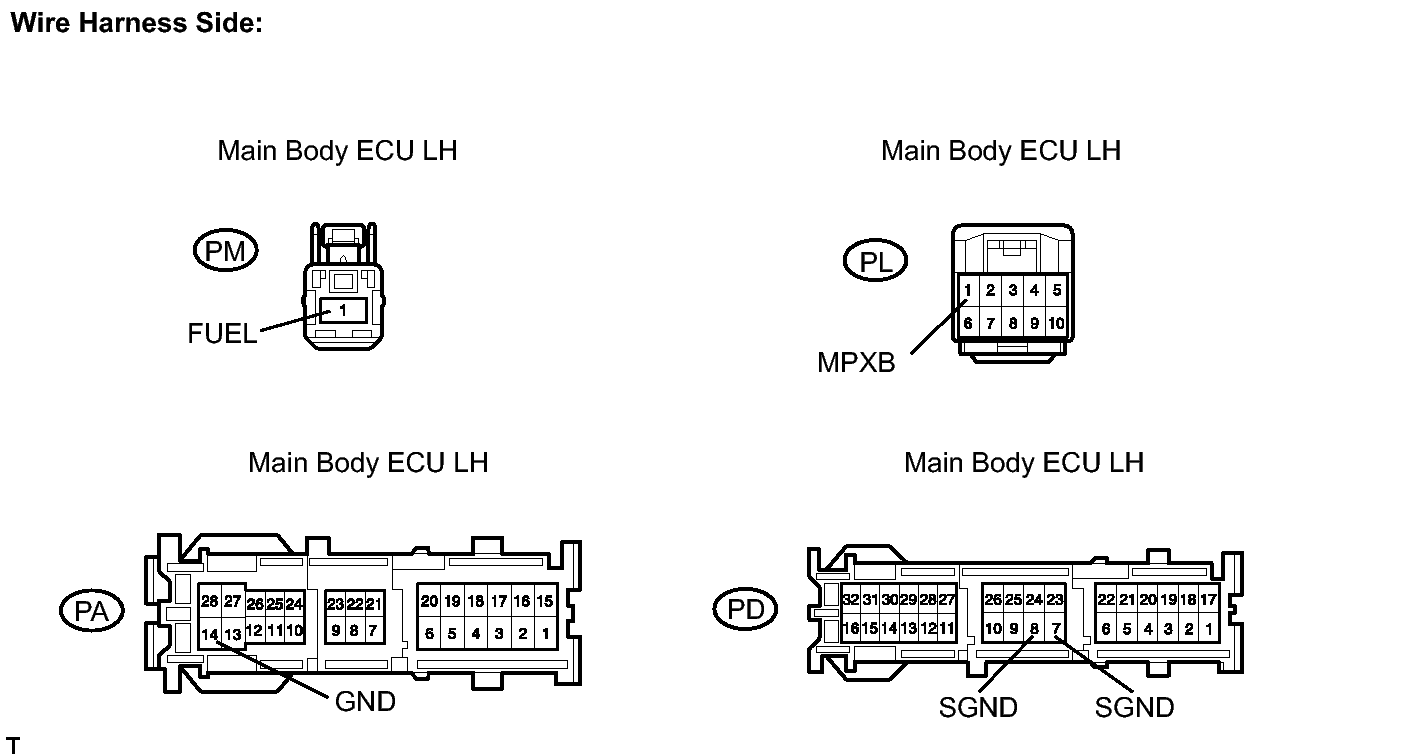

Fig 1: Checking Wire Harness (Main Body ECU LH - Battery And Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the PM, PL, PA and PD ECU connectors.
2. Measure the voltage and resistance of the wire harness side connectors.

   Standard voltage

   Standard resistance

   Tester Connection	Specified Condition
   PM-1 (FUEL) - Body ground	10 to 14 V
   PL-1 (MPXB) - Body ground	10 to 14 V

   Tester Connection	Specified Condition
   PA-14 (GND) - Body ground	Below 1 Ω
   PD-7 (SGND) - Body ground	Below 1 Ω
   PD-8 (SGND) - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE  PROBLEM SYMPTOMS TABLE
