Turn Signal Light Circuit: Wiring Diagram

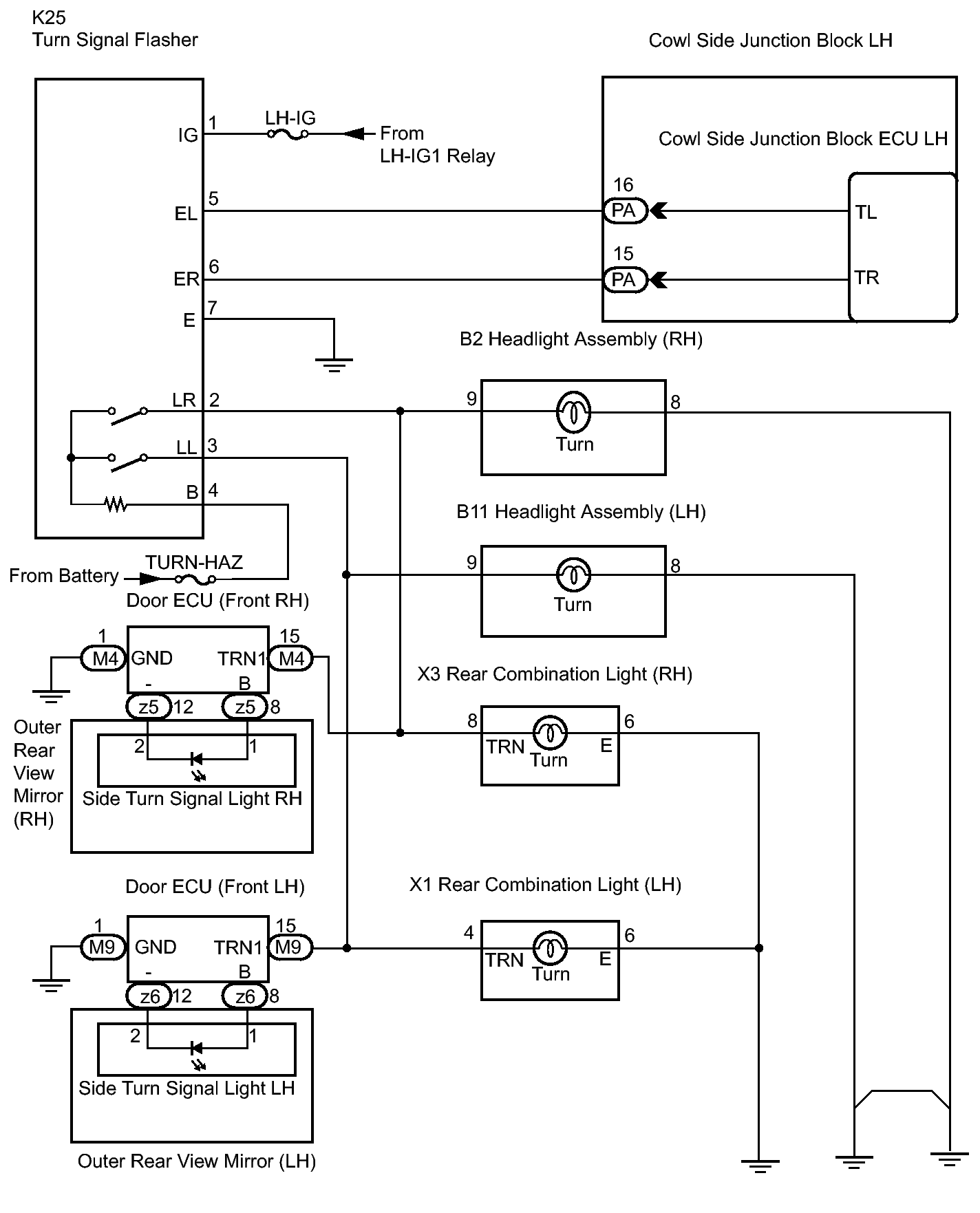

Fig 1: Identifying Turn Signal Light - Wiring Diagram

GTY271943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
