Taillight Circuit: Wiring Diagram

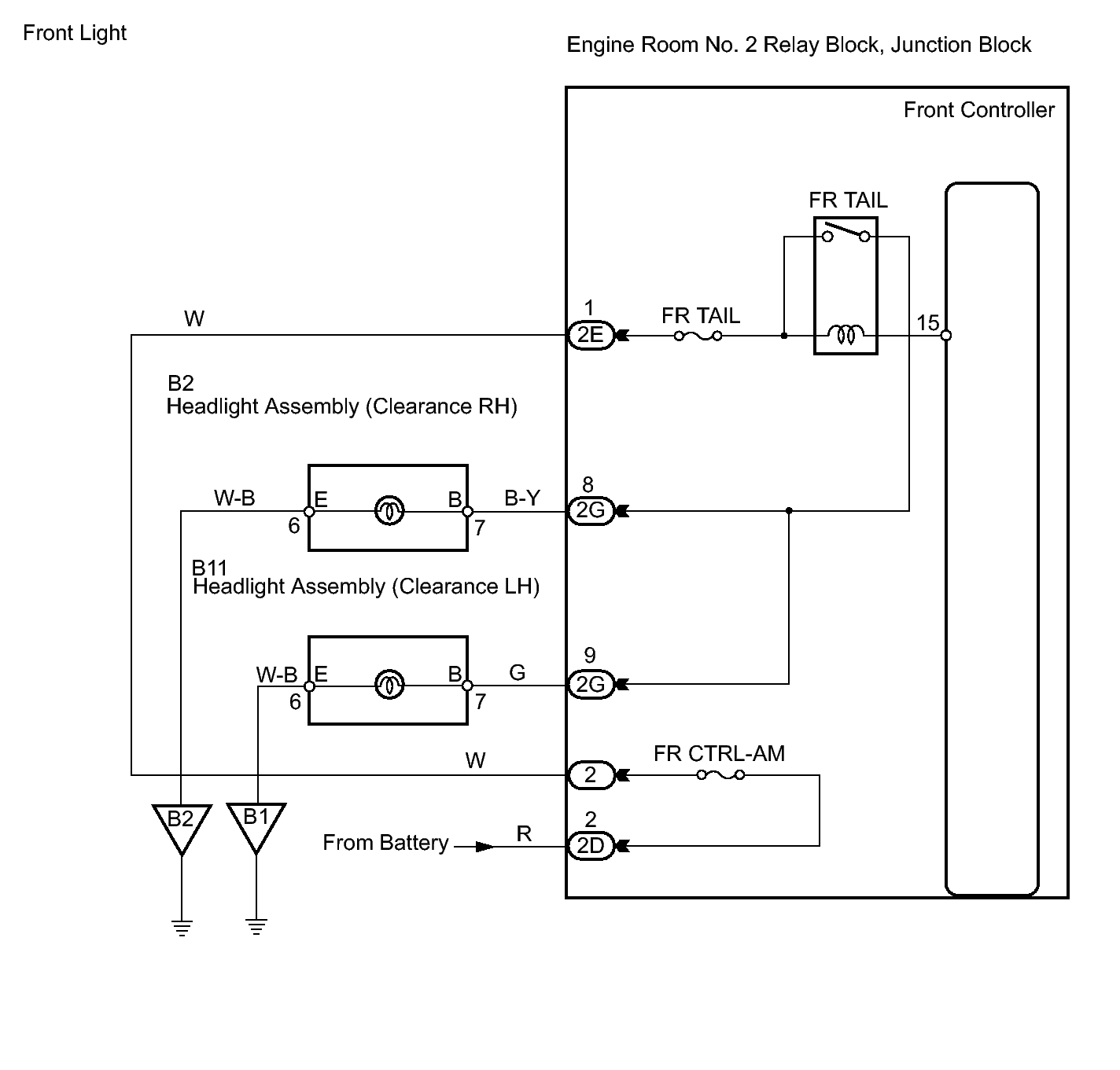

Fig 1: Identifying Taillight - Wiring Diagram (1 Of 2)
GTY100050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

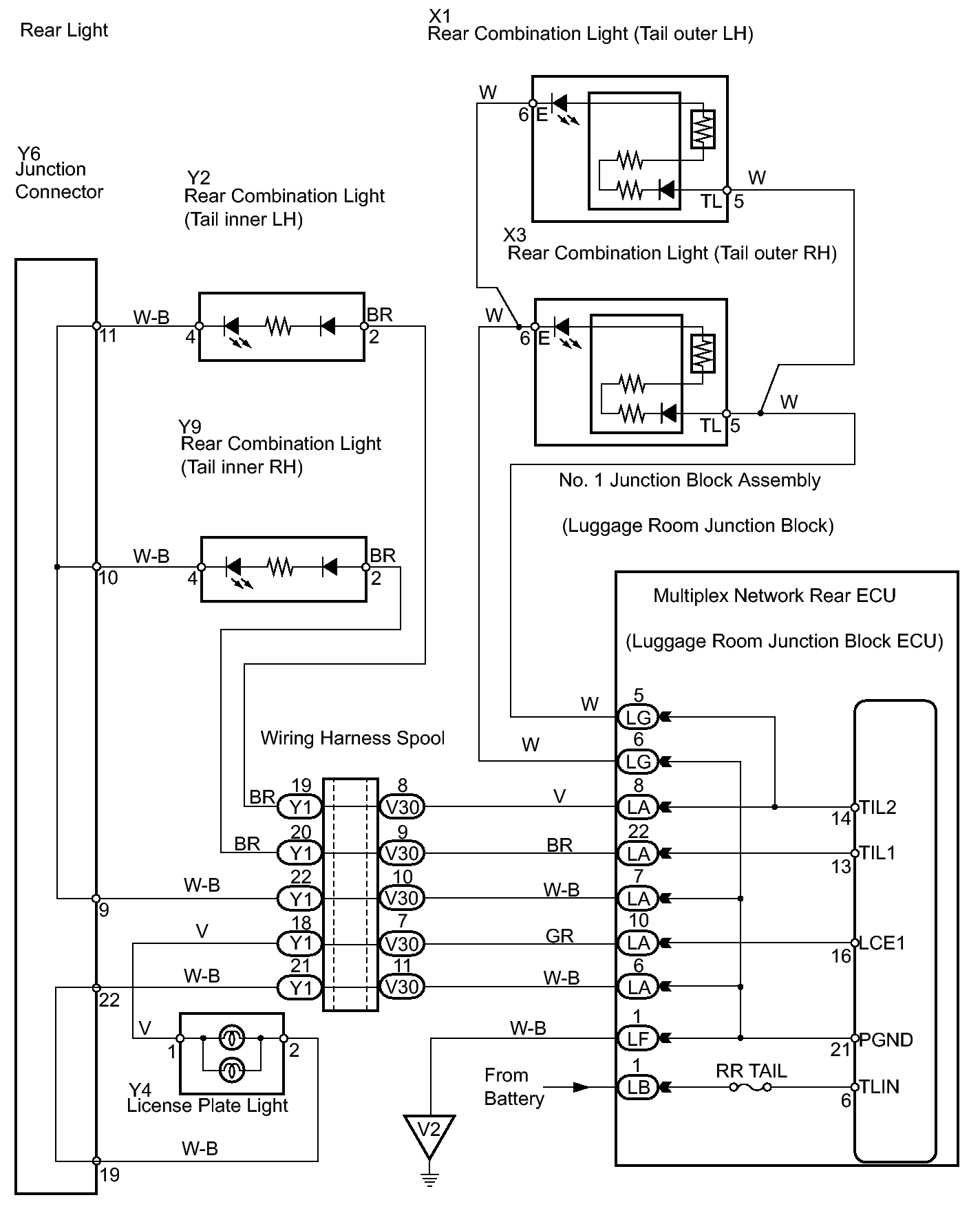

Fig 2: Identifying Taillight - Wiring Diagram (2 Of 2)
GTY285632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
