Stop Light Circuit: Wiring Diagram

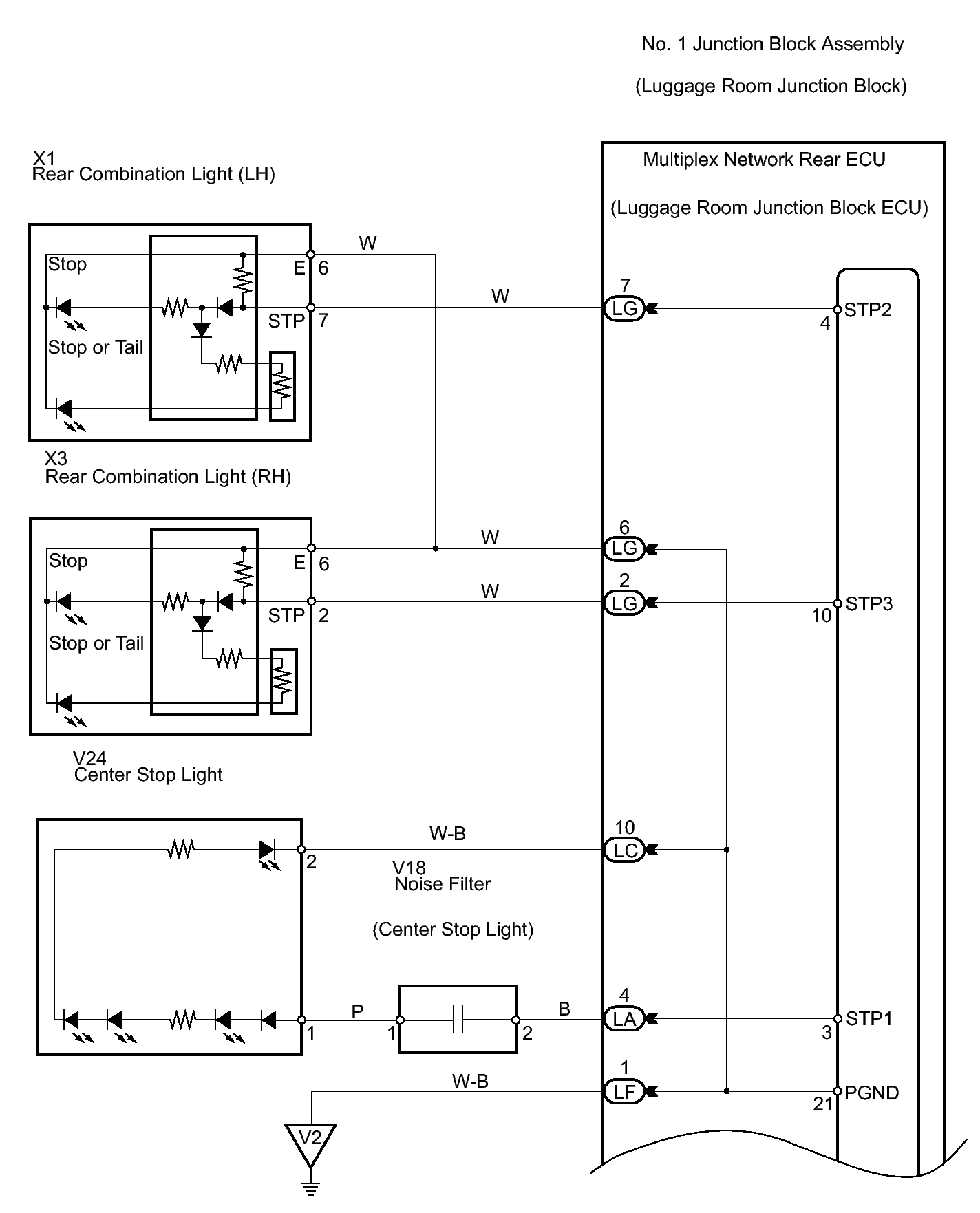

Fig 1: Identifying Stop Light -- Wiring Diagram (1 Of 2)
GTY108145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Stop Light -- Wiring Diagram (2 Of 2)
GTY108224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
