Step Illumination Circuit: Wiring Diagram

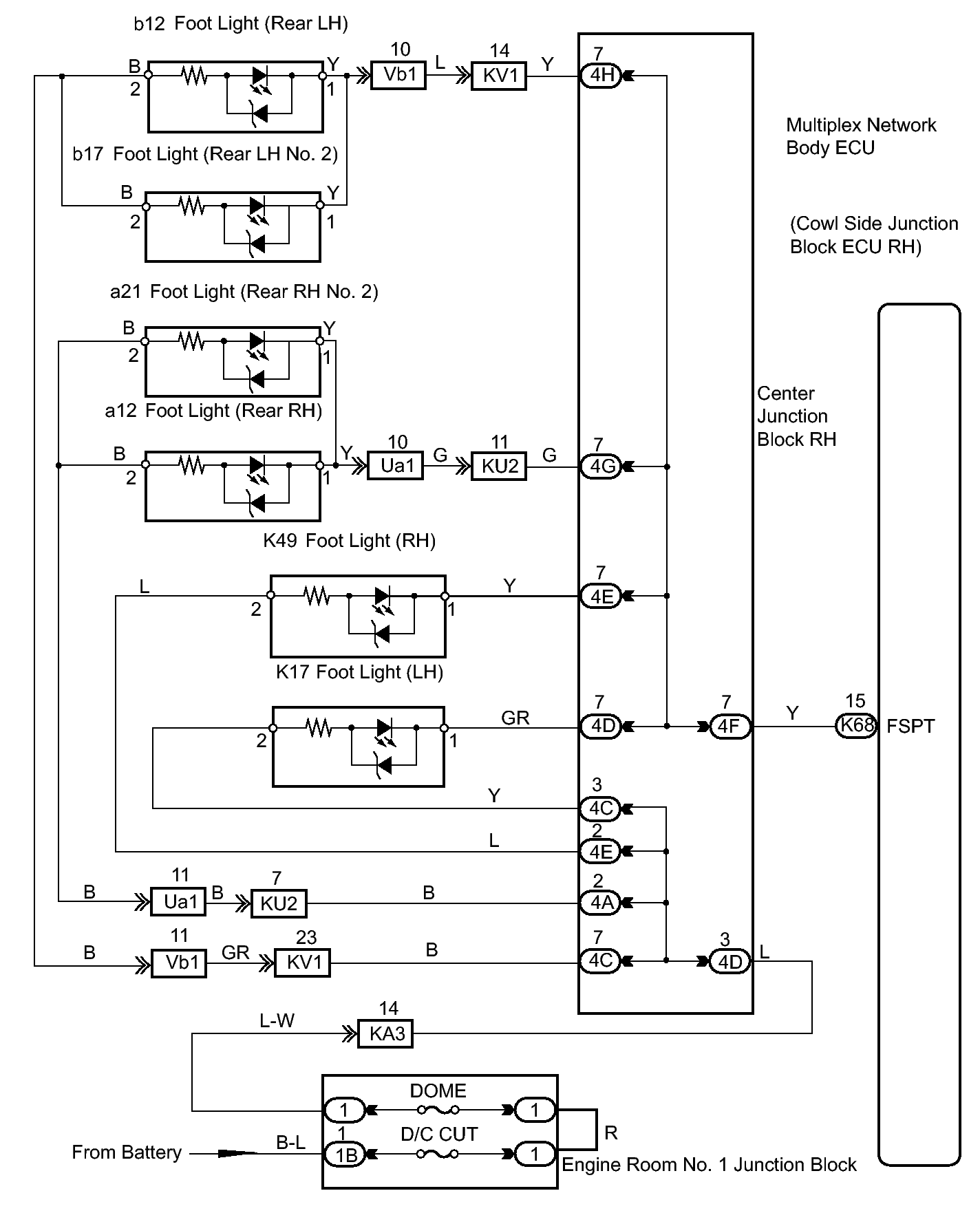

Fig 1: Identifying Step Illumination - Wiring Diagram

GTY103258
