Room Light Circuit: Wiring Diagram

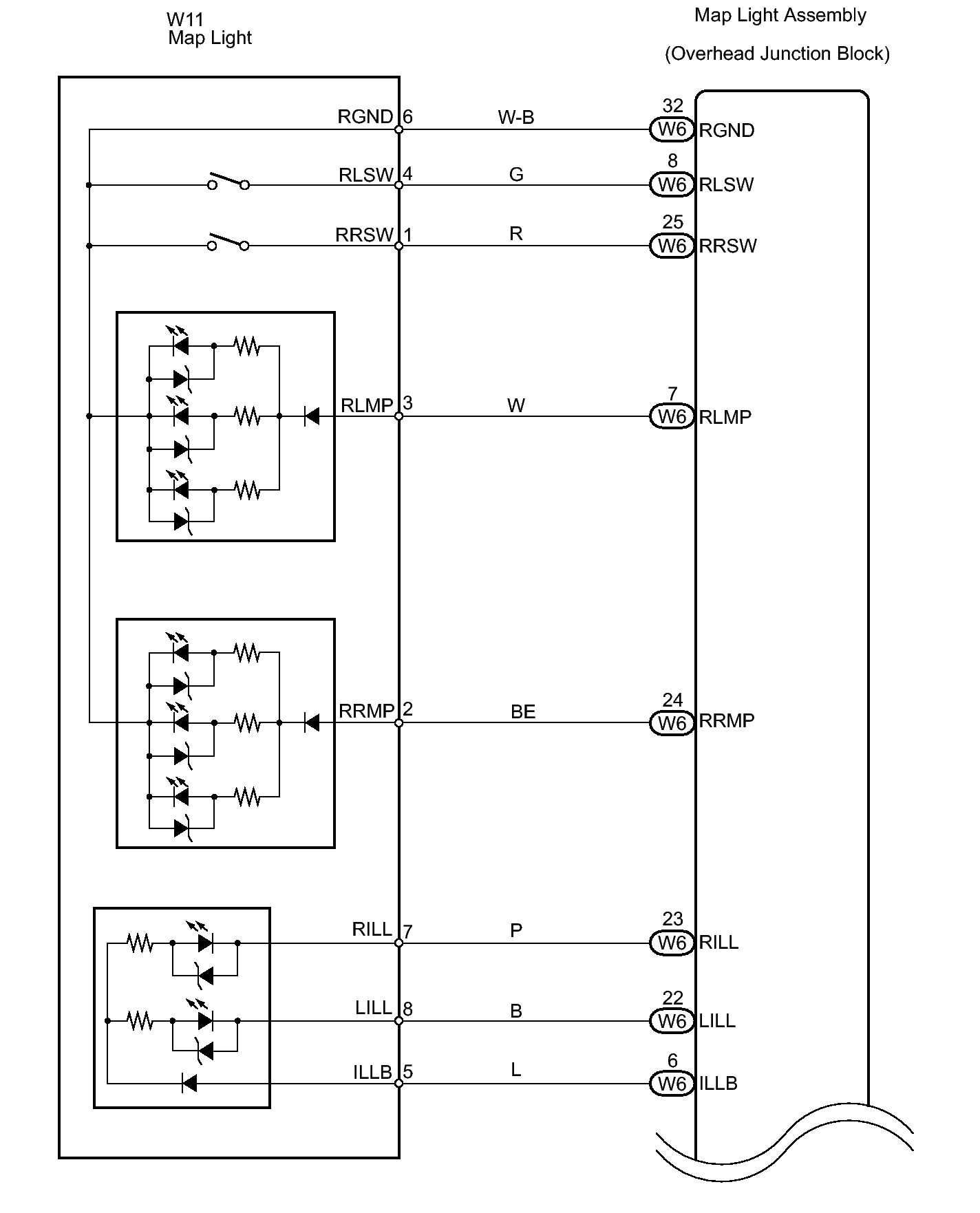

Fig 1: Identifying Room Light - Wiring Diagram (1 Of 2)
GTY100842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

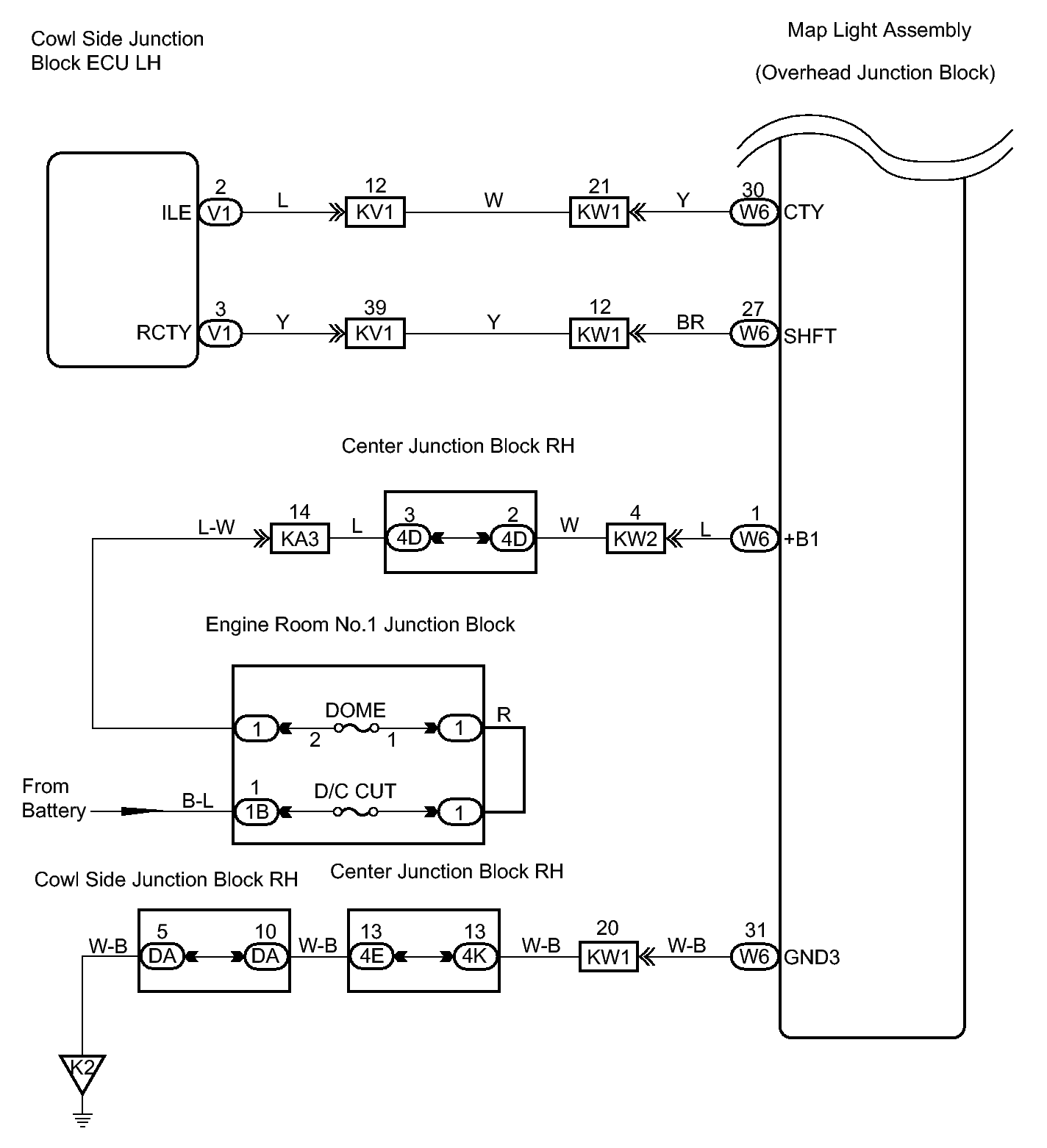

Fig 2: Identifying Room Light - Wiring Diagram (2 Of 2)
GTY102912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
