Headlight Signal Circuit: Wiring Diagram

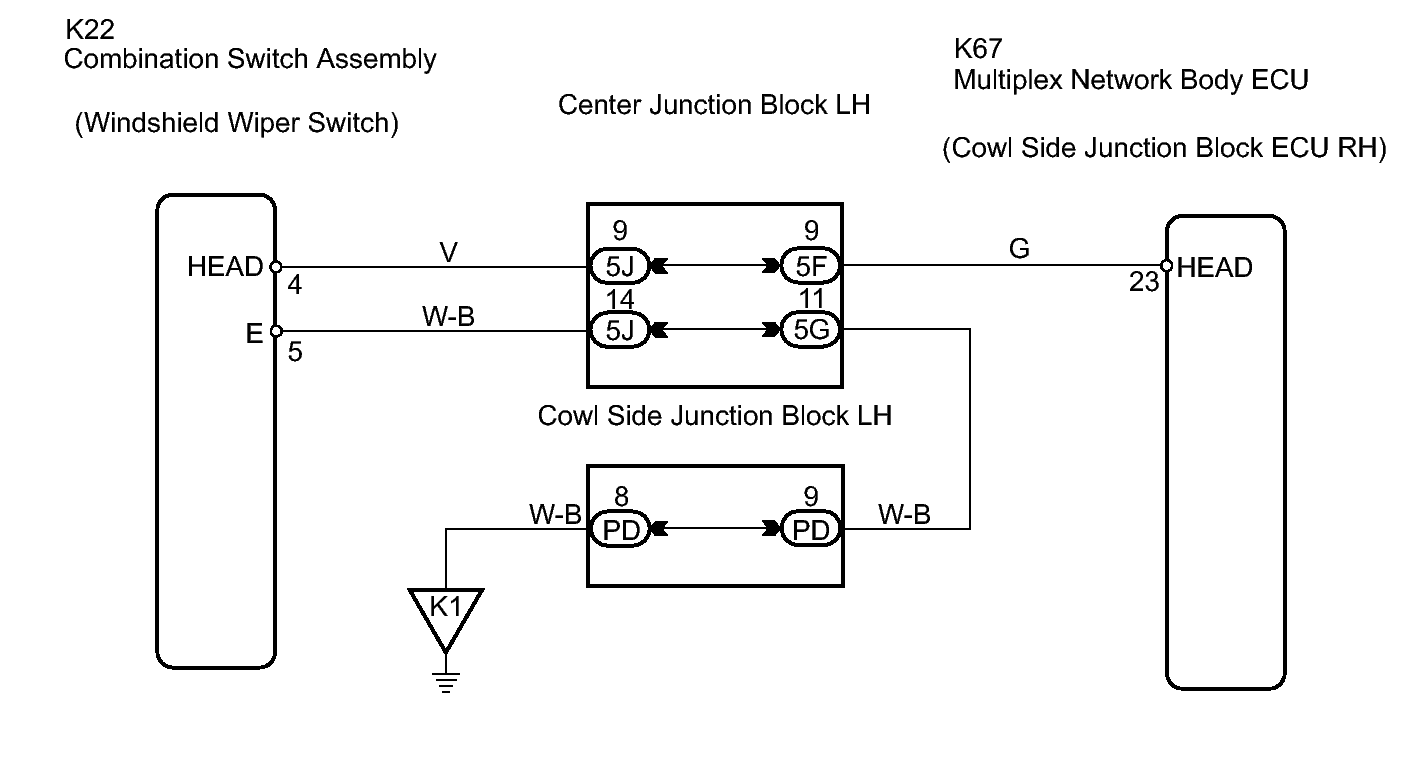

Fig 1: Identifying Headlight Signal Circuit -- Wiring Diagram

GTY108146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
