Headlight (HI-BEAM) Circuit: Wiring Diagram

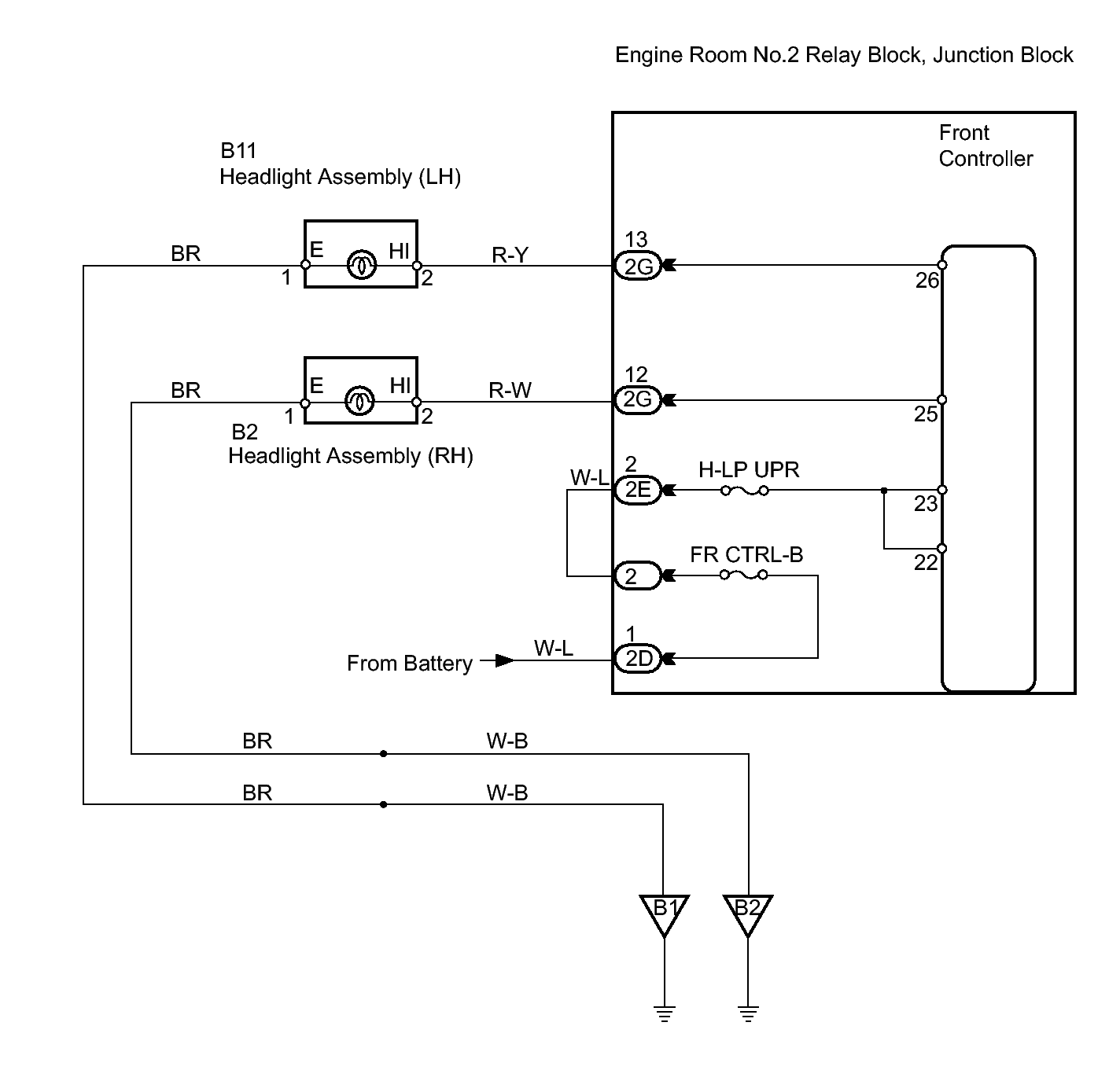

Fig 1: Identifying Headlight (HI-BEAM) - Wiring Diagram

GTY267037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
