Hazard Warning Switch Circuit: Wiring Diagram

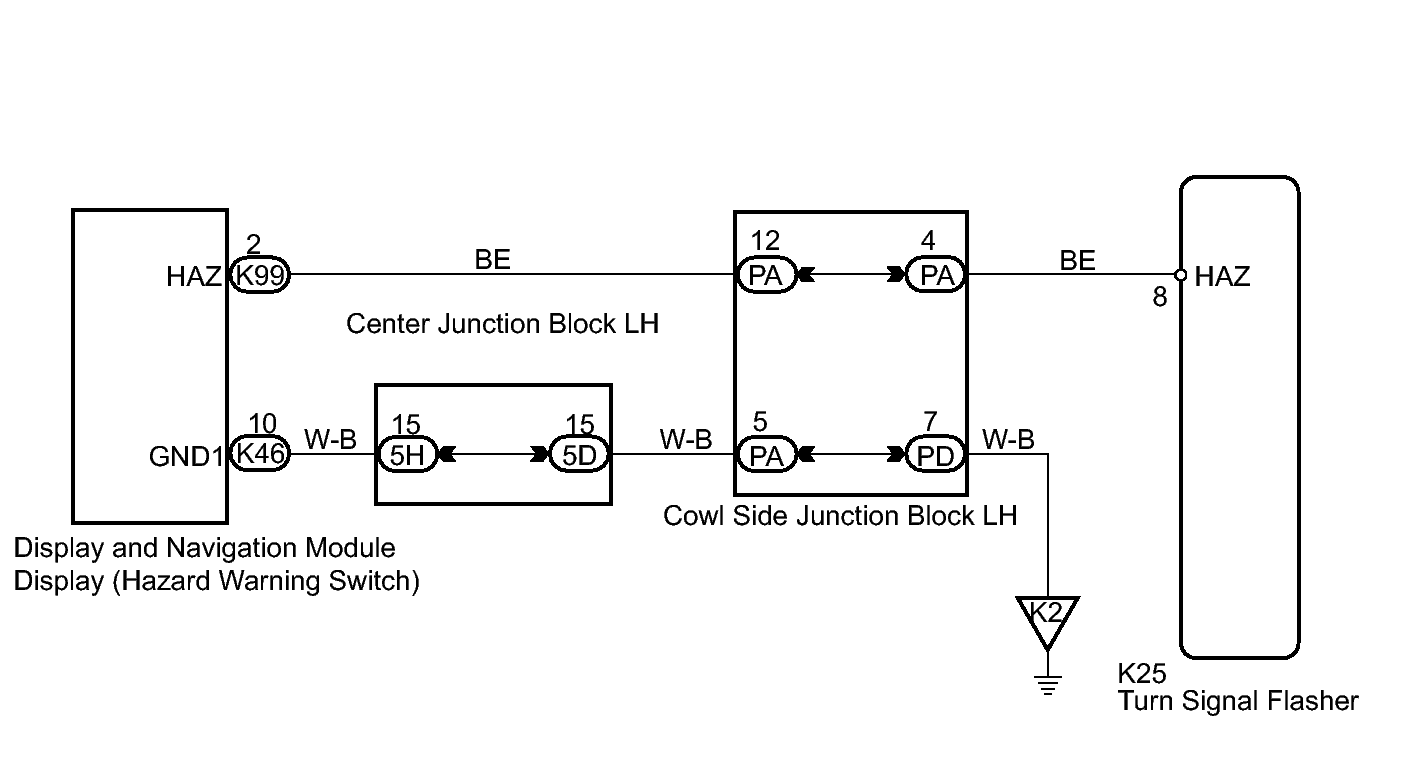

Fig 1: Identifying Hazard Warning Switch - Wiring Diagram

GTY261748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
