Door Courtesy Switch Circuit: Wiring Diagram

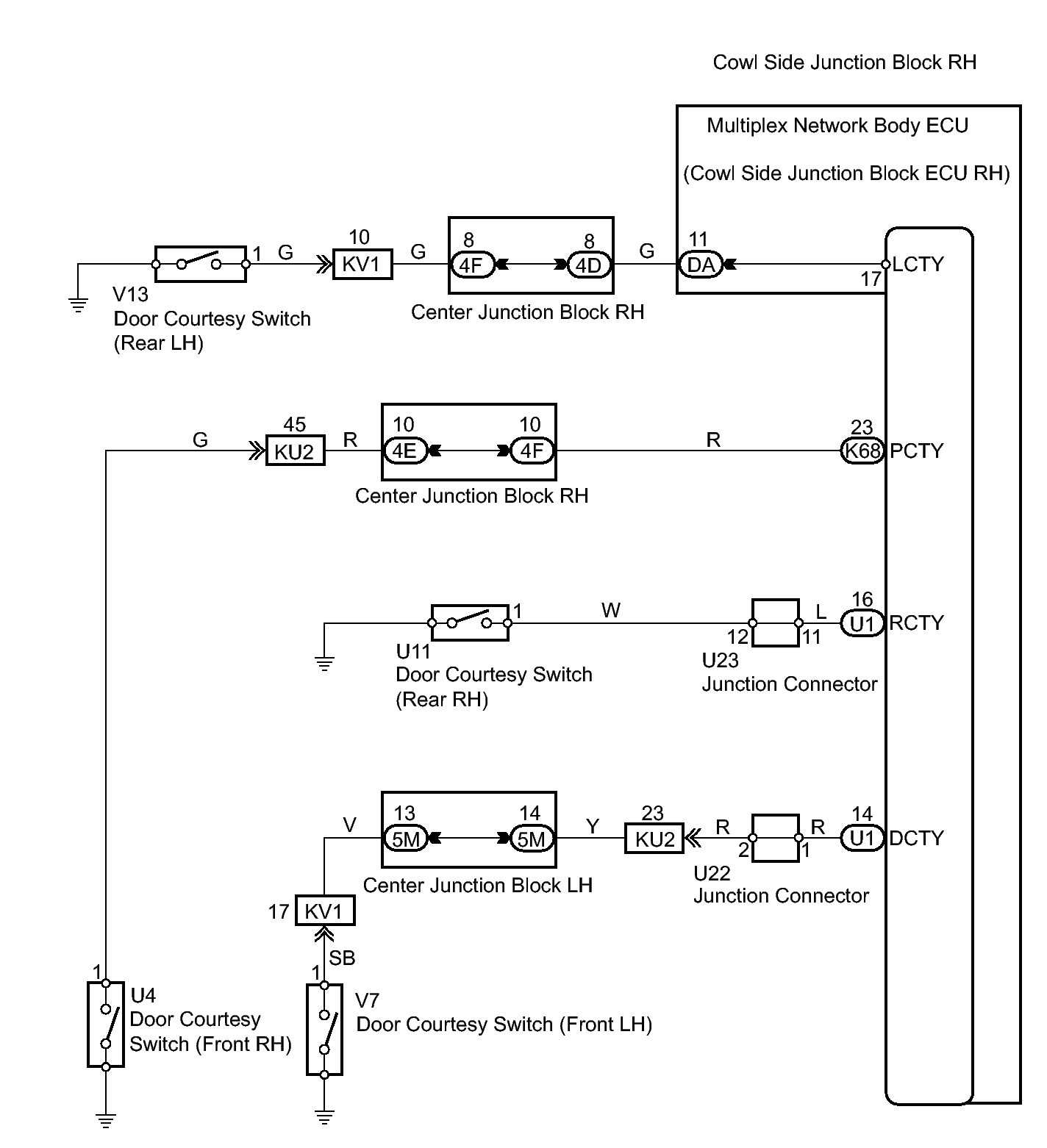

Fig 1: Identifying Door Courtesy Switch Circuit - Wiring Diagram

GTY101823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
