Door Courtesy Light Circuit: Wiring Diagram

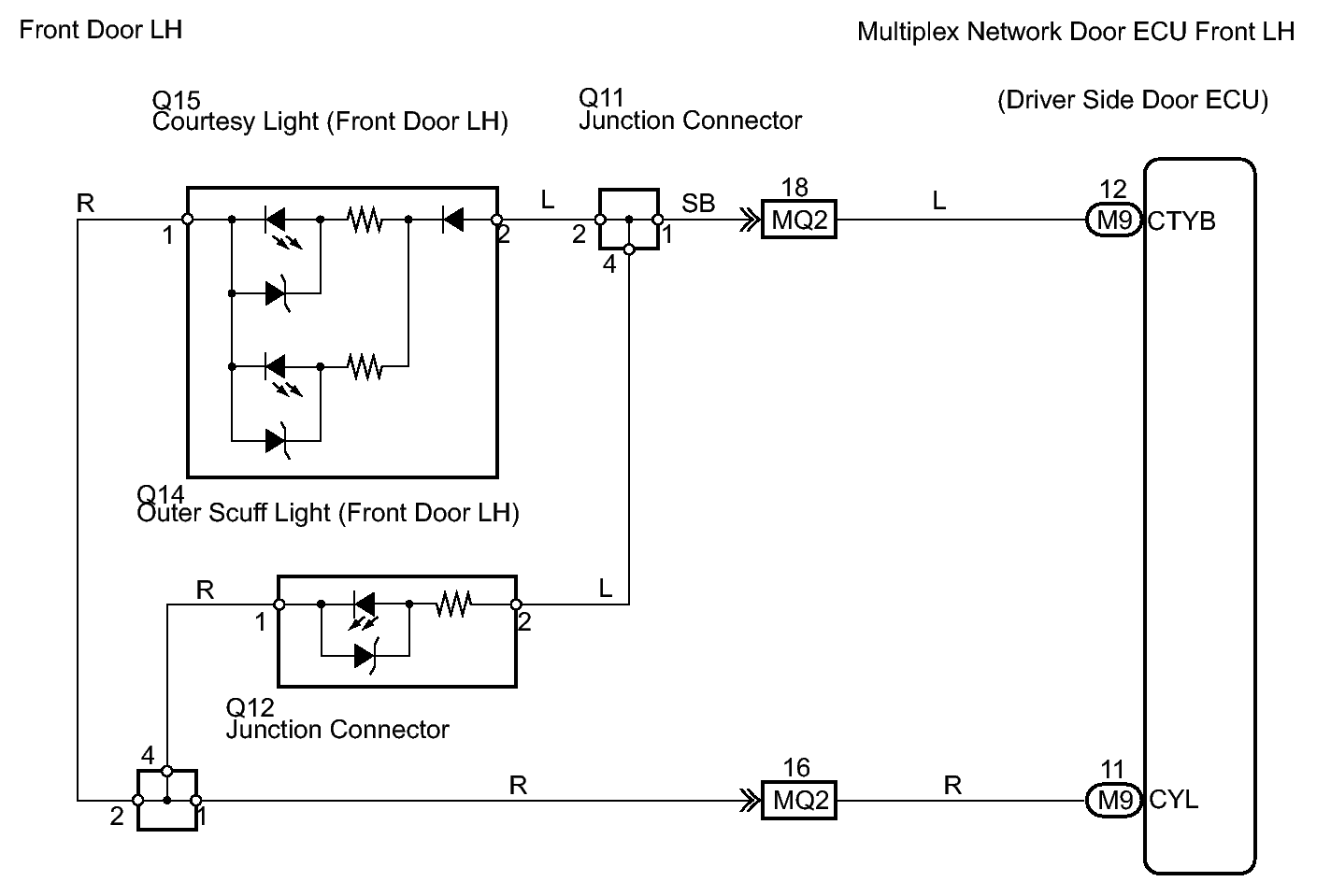

Fig 1: Identifying Door Courtesy Light Circuit -- Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

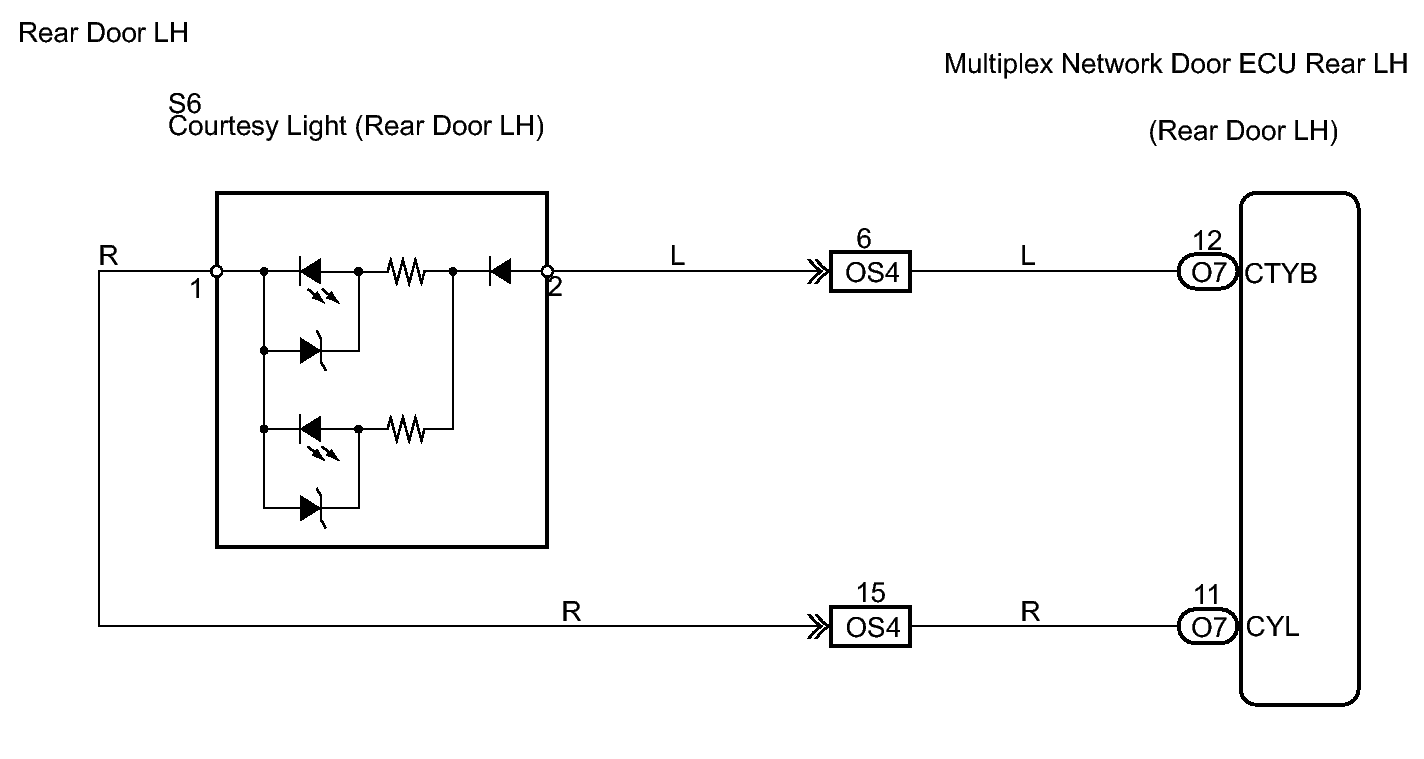

Fig 2: Identifying Door Courtesy Light Circuit -- Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

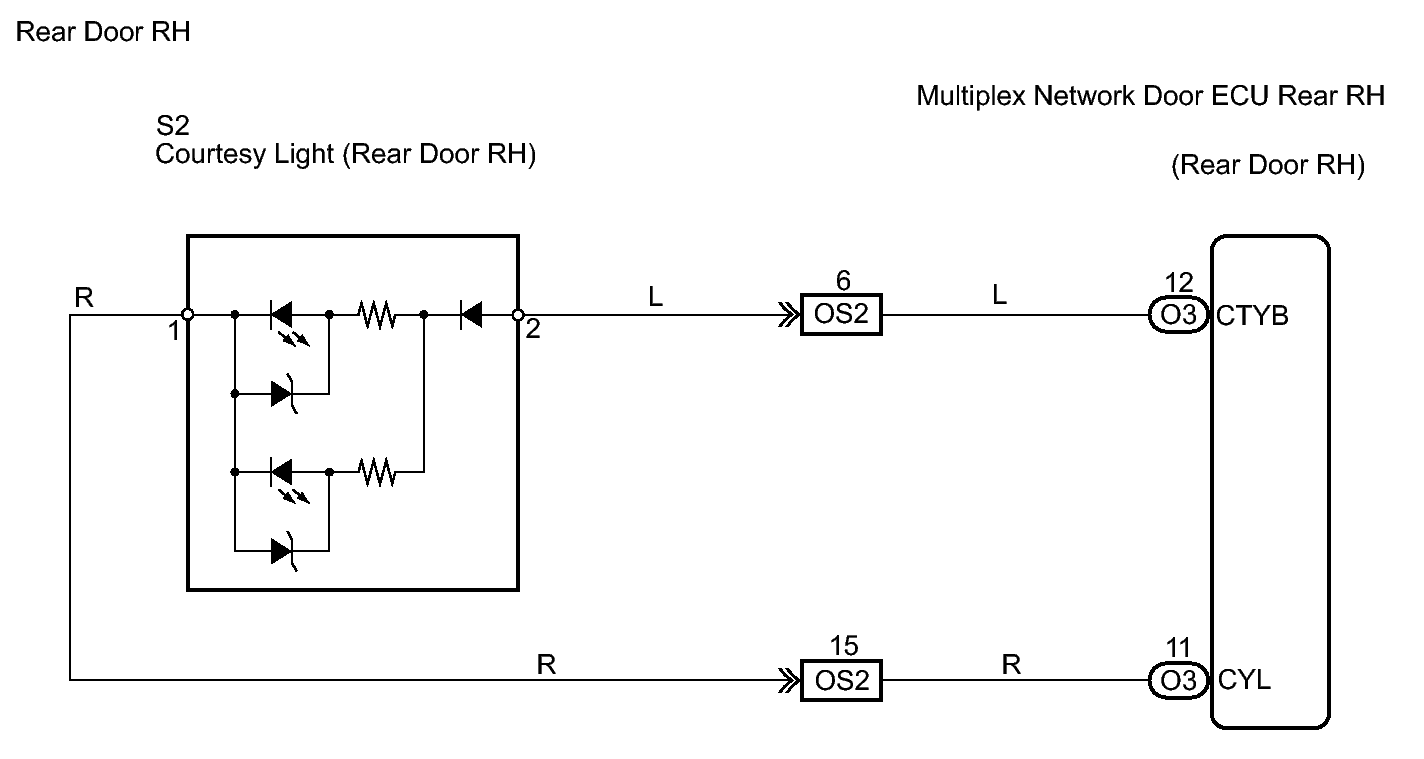

Fig 3: Identifying Door Courtesy Light Circuit -- Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

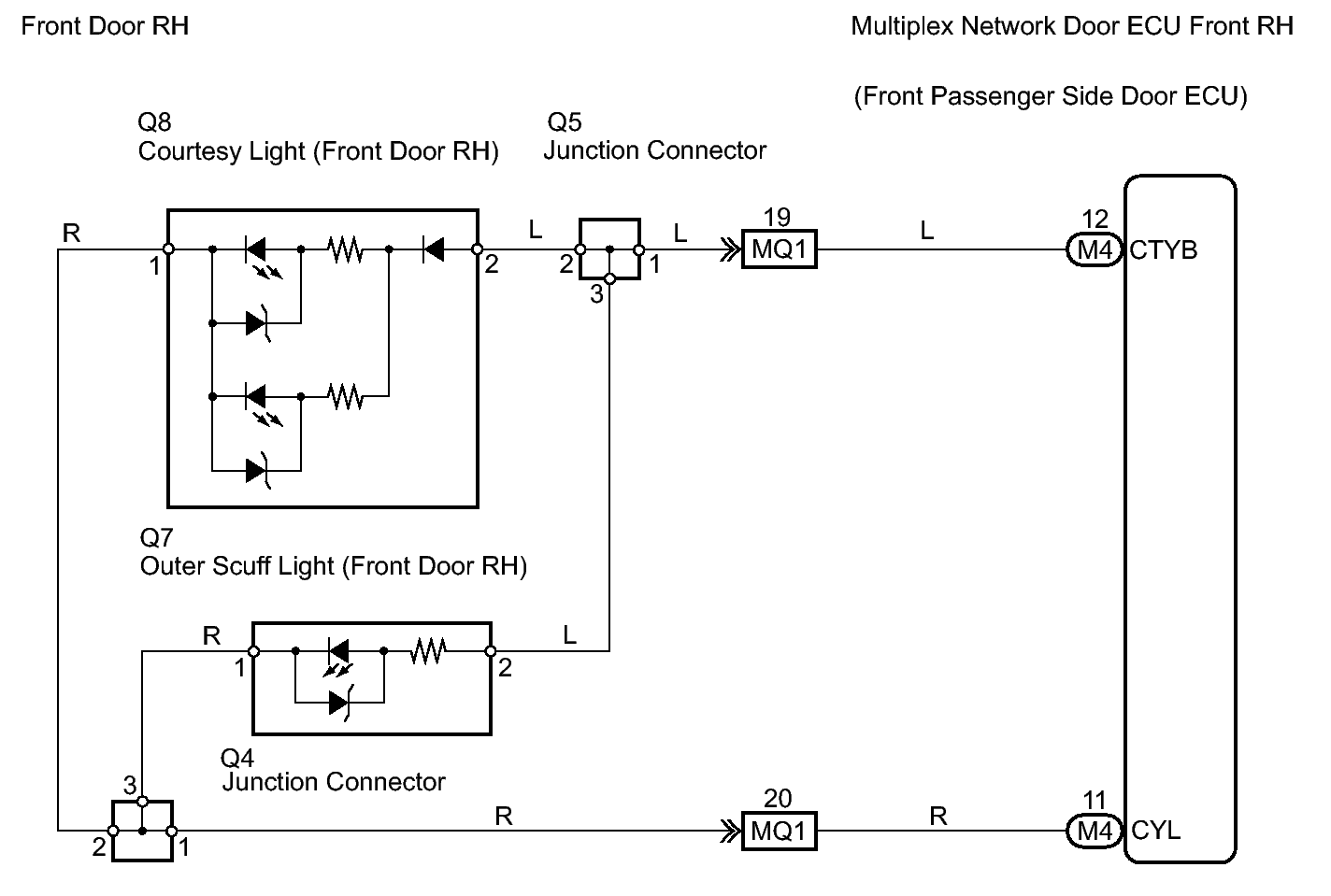

Fig 4: Identifying Door Courtesy Light Circuit -- Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
