DTC B2417: Headlight Beam Level Control Motor LH Malfunction; DTC B2418: Headlight Beam Level Control Motor RH Malfunction: Wiring Diagram

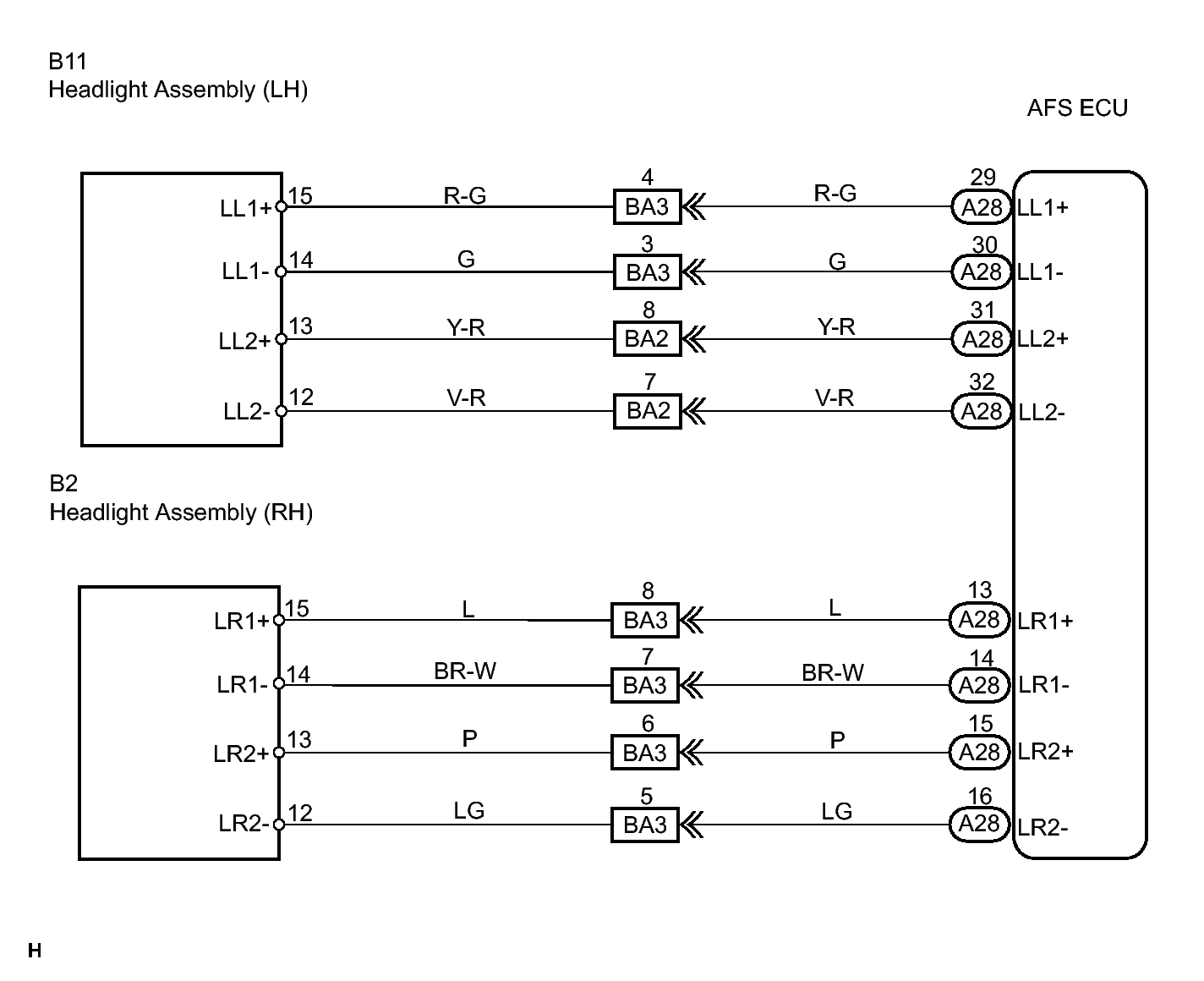

Fig 1: Identifying Headlight Beam Level Control Motor - Wiring Diagram
GTY103363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
