DTC B2414: Steering Position Sensor Malfunction: Wiring Diagram

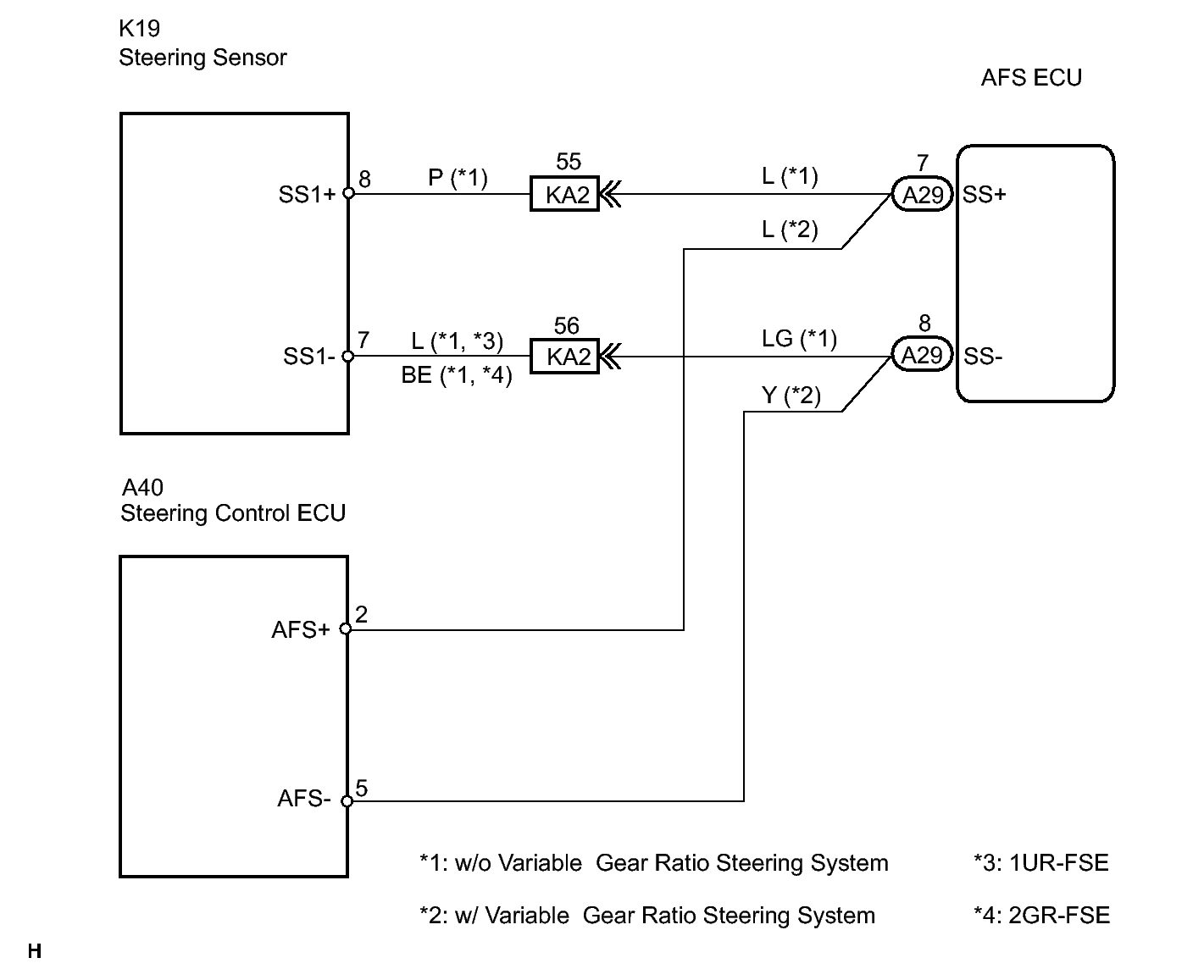

Fig 1: Identifying Steering Sensor - Wiring Diagram

GTY100920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
