DTC B2412: Headlight Swivel Motor LH Malfunction; DTC B2413: Headlight Swivel Motor RH Malfunction: Wiring Diagram

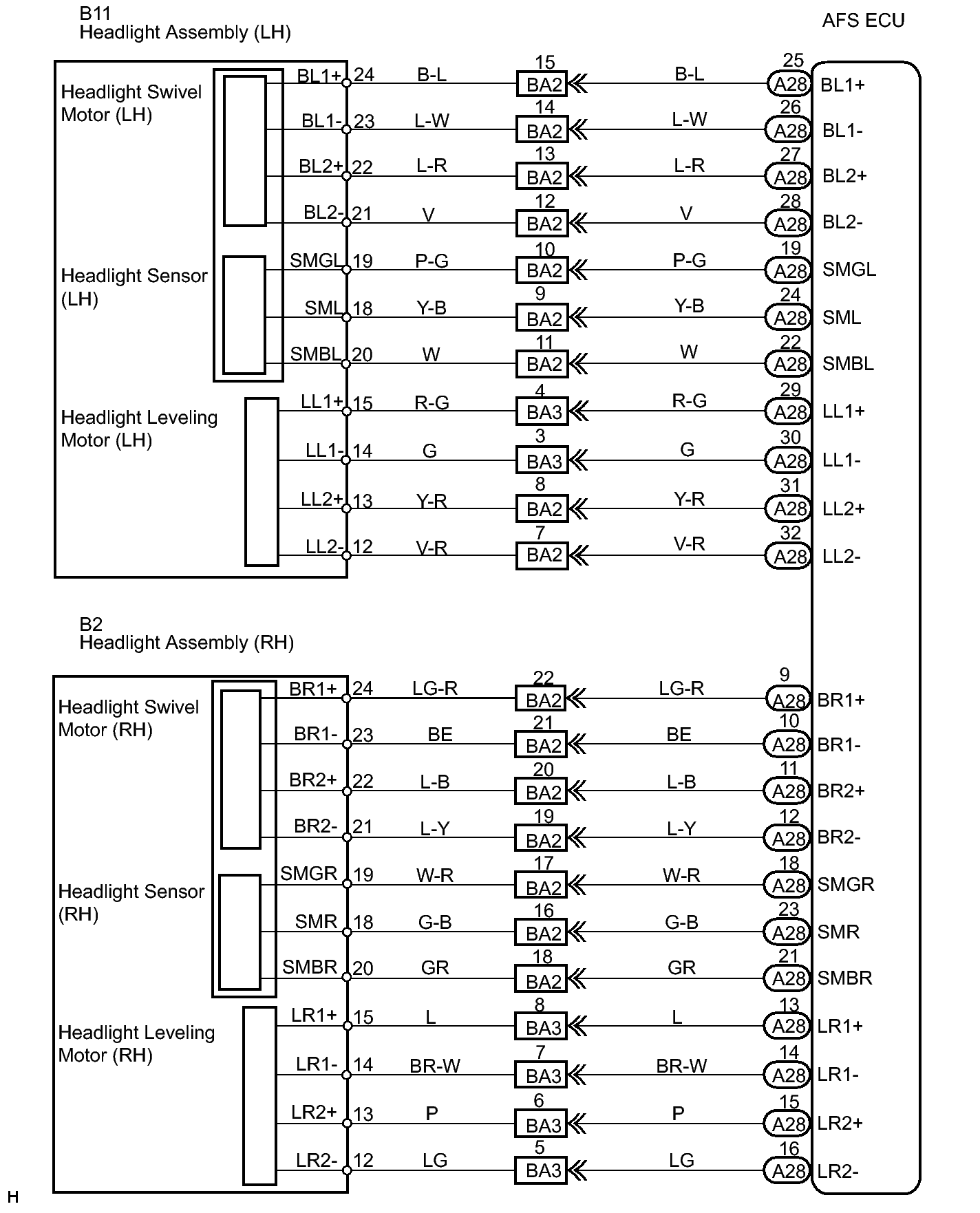

Fig 1: Identifying LH Headlight Swivel Motor - Wiring Diagram
GTY284719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
