DTC B2412: Headlight Swivel Motor LH Malfunction; DTC B2413: Headlight Swivel Motor RH Malfunction: Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream on.
- Select the item below in the ACTIVE TEST and then check that the motor operates.AFS (AFS ECU)
Item Test Details Diagnostic Note Drive Swirel Motor RH Drive the swivel motor RIGHT / OFF - Drive Swirel Motor LH Drive the swivel motor LEFT / OFF - OK
Swivel actuator operates.
Result
Result Proceed to OK (When checking from PROBLEM SYMPTOMS TABLE) A OK (When checking from DIAGNOSTIC TROUBLE CODE CHART) B NG C
C → See step 2
B → REPLACE AFS ECU
A → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

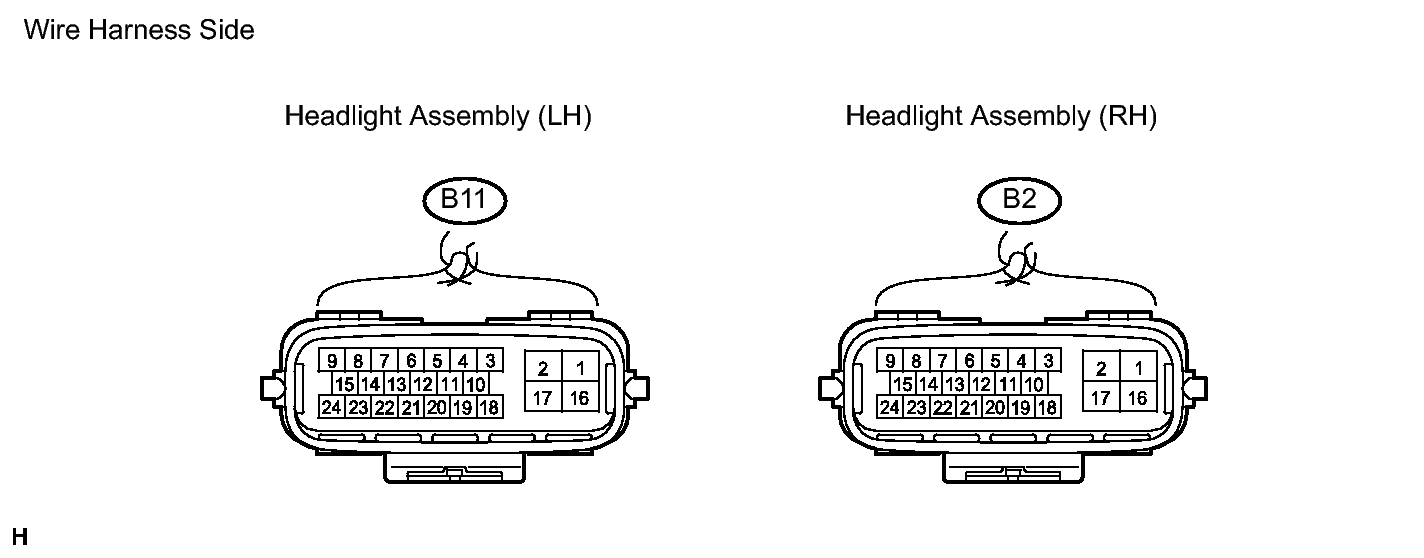

- INSPECT HEADLIGHT ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the B11 and B2 headlight assembly connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
LH SIDE (B2412)Tester Connection Condition Specified Condition B11-23 - B11-24 Always 6 to 8 Ω B11-21 - B11-22 Always 6 to 8 Ω RH SIDE (B2413):Tester Connection Condition Specified Condition B2-23 - B2-24 Always 6 to 8 Ω B2-22 - B2-21 Always 6 to 8 Ω HINT:
Measure the resistance after the headlight has cooled.
NG → REPLACE HEADLIGHT ASSEMBLY
OK: Go to next step

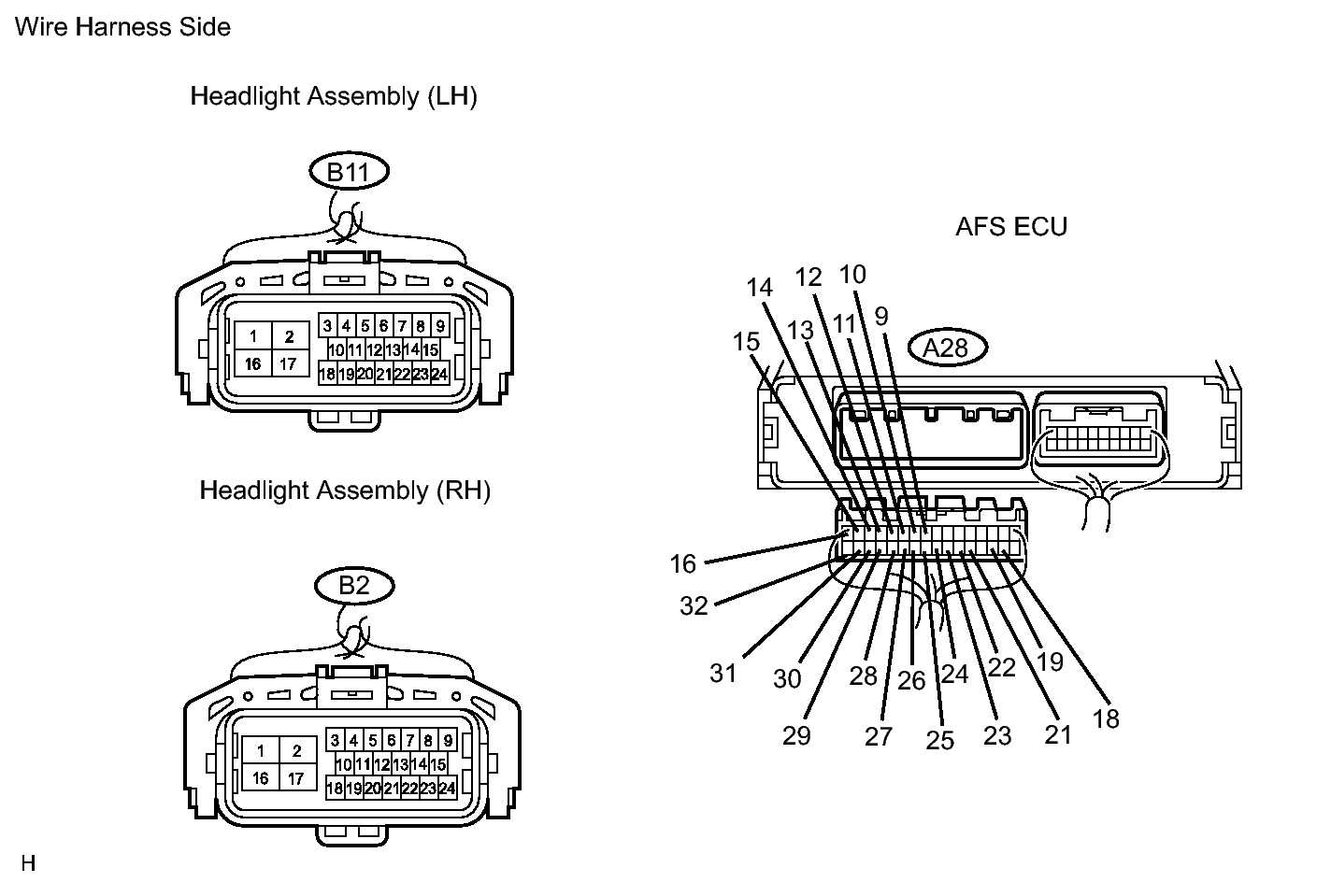

- CHECK WIRE HARNESS (HEADLIGHT ASSEMBLY - AFS ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the A28 AFS ECU.
- Disconnect the B11 and B2 headlight connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
LH SIDE (B2412)Tester Connection Condition Specified Condition A28-25 - B11-24 Always Below 1 Ω A28-26 - B11-23 Always Below 1 Ω A28-27 - B11-22 Always Below 1 Ω A28-28 - B11-21 Always Below 1 Ω A28-19 - B11-19 Always Below 1 Ω A28-24 - B11-18 Always Below 1 Ω A28-22 - B11-20 Always Below 1 Ω A28-25 - Body ground Always 10 kΩ or higher A28-26 - Body ground Always 10 kΩ or higher A28-27 - Body ground Always 10 kΩ or higher A28-28 - Body ground Always 10 kΩ or higher A28-19 - Body ground Always 10 kΩ or higher A28-24 - Body ground Always 10 kΩ or higher A28-22 - Body ground Always 10 kΩ or higher RH SIDE (B2413)Tester Connection Condition Specified Condition A28-9 - B2-24 Always Below 1 Ω A28-10 - B2-23 Always Below 1 Ω A28-11 - B2-22 Always Below 1 Ω A28-12 - B2-21 Always Below 1 Ω A28-18 - B2-19 Always Below 1 Ω A28-21 - B2-20 Always Below 1 Ω A28-23 - B2-18 Always Below 1 Ω A28-9 - Body ground Always 10 kΩ or higher A28-10 - Body ground Always 10 kΩ or higher A28-11 - Body ground Always 10 kΩ or higher A28-12 - Body ground Always 10 kΩ or higher A28-18 - Body ground Always 10 kΩ or higher A28-21 - Body ground Always 10 kΩ or higher A28-23 - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

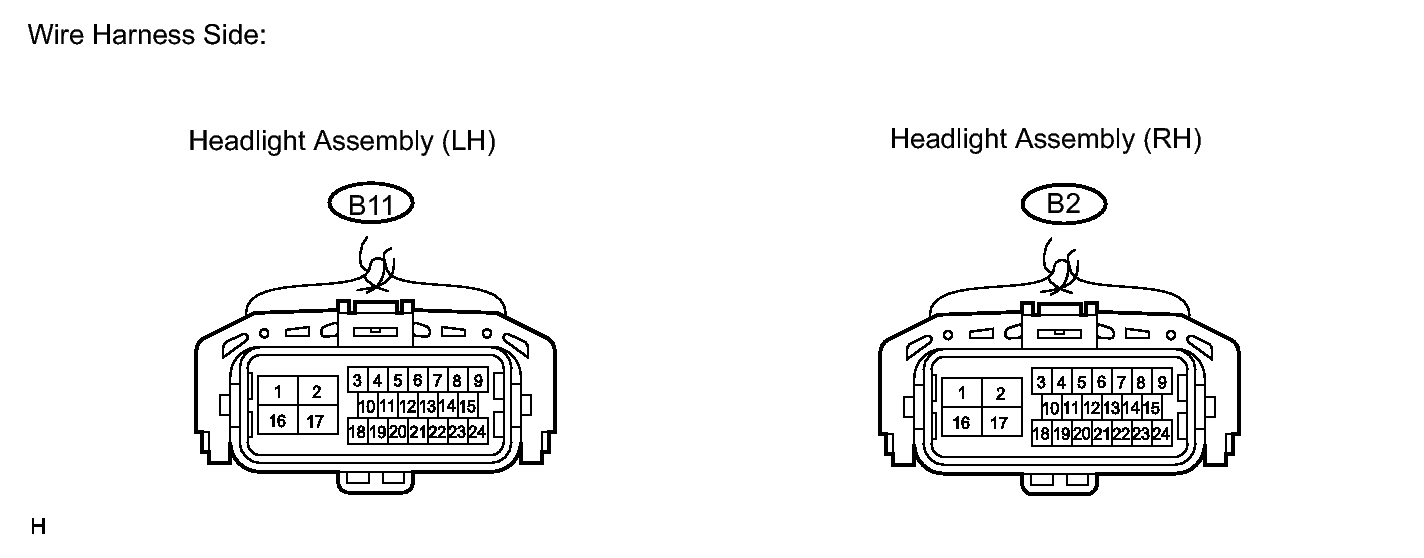

- CHECK AFS ECU
- Disconnect the B11 and B2 headlight connectors.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
LH SIDE (B2412)Tester Connection Condition Specified Condition B11-20 - B11-19 Engine switch off Below 1 V Engine switch on (IG) 4.5 to 5.5 V RH SIDE (B2413)Tester Connection Condition Specified Condition B2-20 - B2-19 Engine switch off Below 1 V Engine switch on (IG) 4.5 to 5.5 V Result
Result Proceed to OK A NG (When checking from the PROBLEM SYMPTOMS TABLE) B NG (When checking from the DIAGNOSTIC TROUBLE CODE CHART) C
C → REPLACE AFS ECU
B → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A: Go to next step
- REPLACE HEADLIGHT ASSEMBLY
- Temporarily replace the headlight assembly with a new or normally functioning one.
- Check that headlight assembly operates.
OK
Return to normal operation.
NG → REPLACE AFS ECU
OK → END
