Lexus
>>
2010
>>
GS 350 RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Exterior Lights
>>
Lighting (Diagnostic Codes & Circuit Tests)
>>
Lighting System
>>
Back-up Light Circuit
>>
Wiring Diagram
Back-up Light Circuit: Wiring Diagram

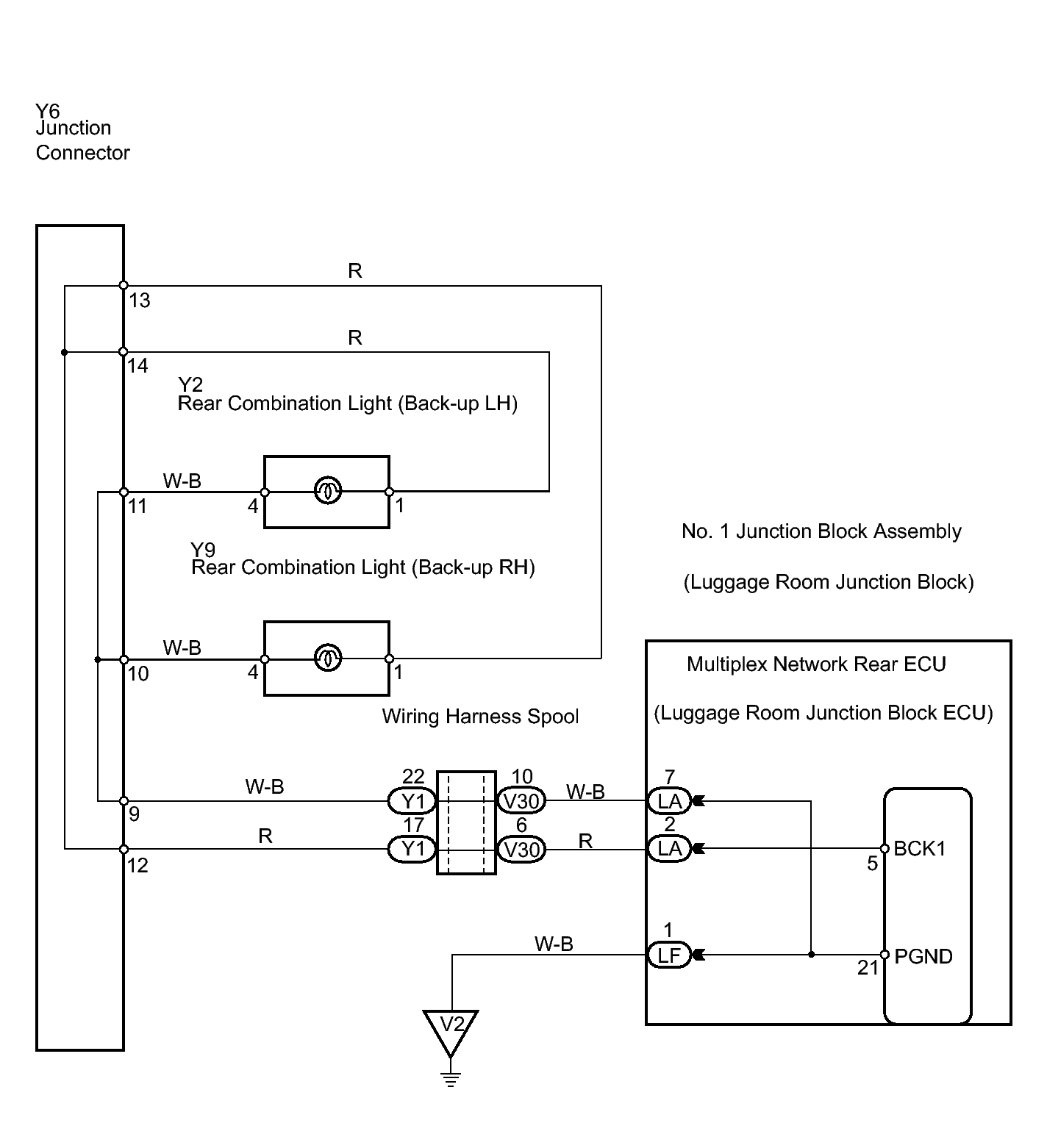

Fig 1: Identifying Back-Up Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
