Drivability Problem: Procedure
- CHECK DTC
- Check for DTC. Refer to DTC CHECK / CLEAR
.
OK
DTC is not output.
NG → See step 6
OK: Go to next step
- Check for DTC. Refer to DTC CHECK / CLEAR
.
- TEST MODE INSPECTION (MULTI INFORMATION DISPLAY)
- Enter test mode. Refer to TEST MODE PROCEDURE .

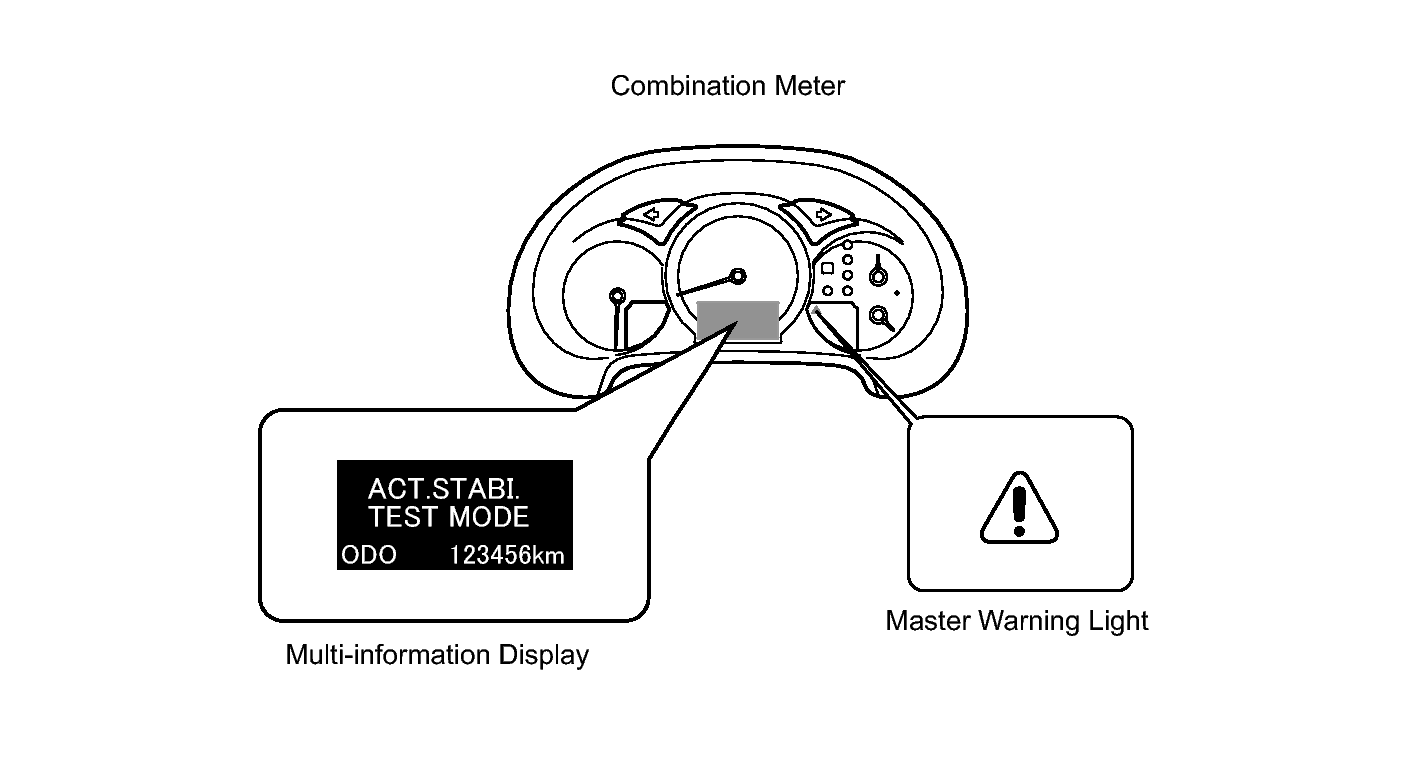

- When switching to test mode, check if the test mode is displayed on the multi-information display of the combination meter.RESULT
Result Proceed to Test mode is not displayed A Test mode is displayed B
B → See step 4
A: Go to next step
- CHECK HARNESS AND CONNECTOR (CAN COMMUNICATION LINE)
- Disconnect the A49 front active stabilizer control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Switch Condition Specified Condition A49-1 (LCN+) - A49-8 (LCN-) Engine switch off 54 to 69 Ω A49-2 (CANH) - A49-3 (CANL) Engine switch off
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 8
- TEST MODE INSPECTION
- Perform the test mode inspection. Refer to TEST MODE PROCEDURE .
NEXT: Go to next step
- CHECK TEST MODE DTC
- Check test mode DTC. Refer to DTC CHECK / CLEAR
.
OK
DTC is not output.
NG → See step 7
OK → END (NORMAL)
- Check test mode DTC. Refer to DTC CHECK / CLEAR
.
- GO TO FLOWCHART OF EACH DTC. Refer to DIAGNOSTIC TROUBLE CODE CHART
- GO TO DTC CHART. Refer to TEST MODE PROCEDURE
- GO TO METER / GAUGE SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
