DTC C192F: Rear Active Stabilizer Control ECU Data Malfunction: Wiring Diagram

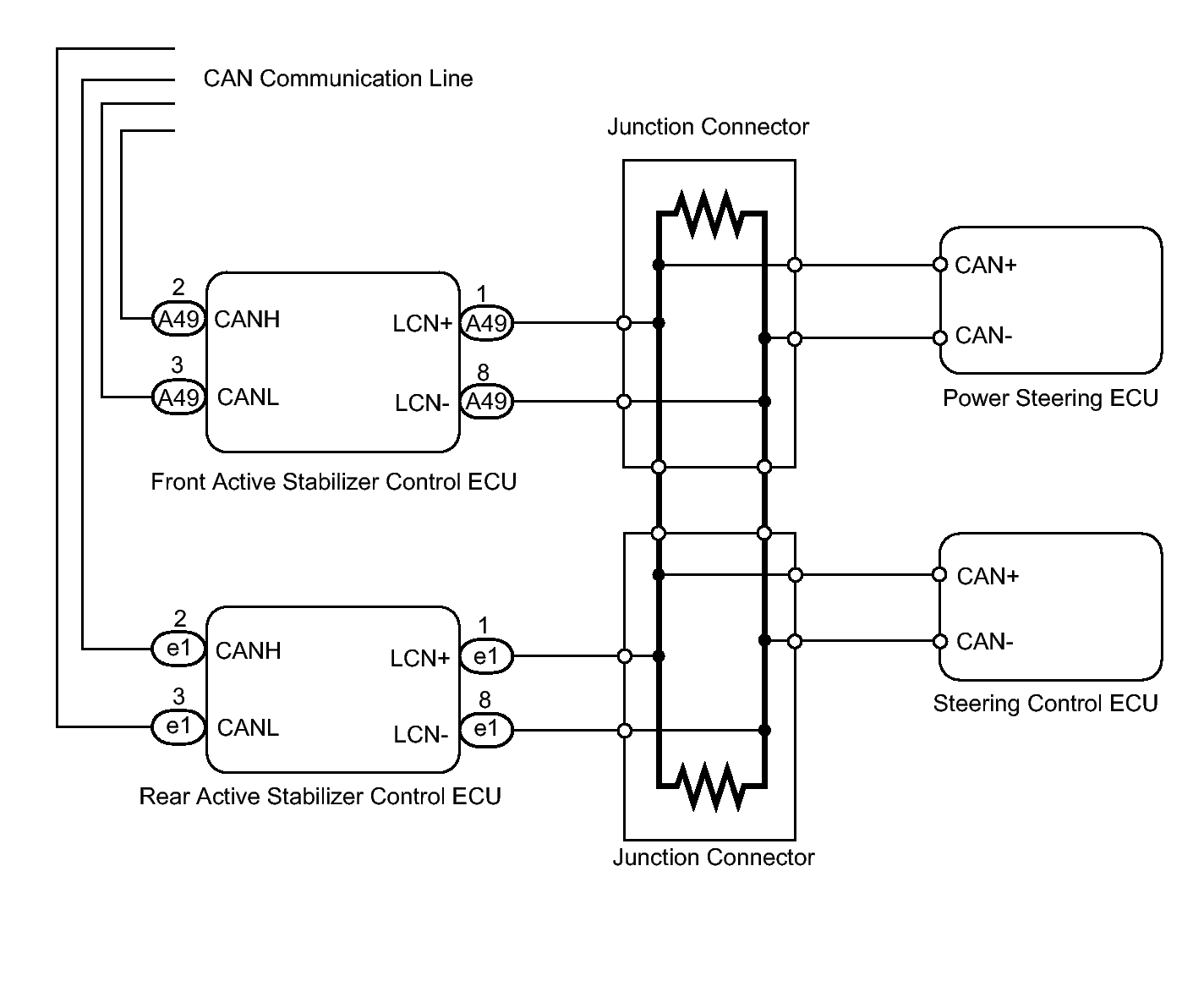

Fig 1: Rear Active Stabilizer Control ECU Data Malfunction - Wiring Diagram
GTY103749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
