DTC C1926: Sub Battery Temperature Sensor; DTC C1927: Sub Battery Current Sensor: Wiring Diagram

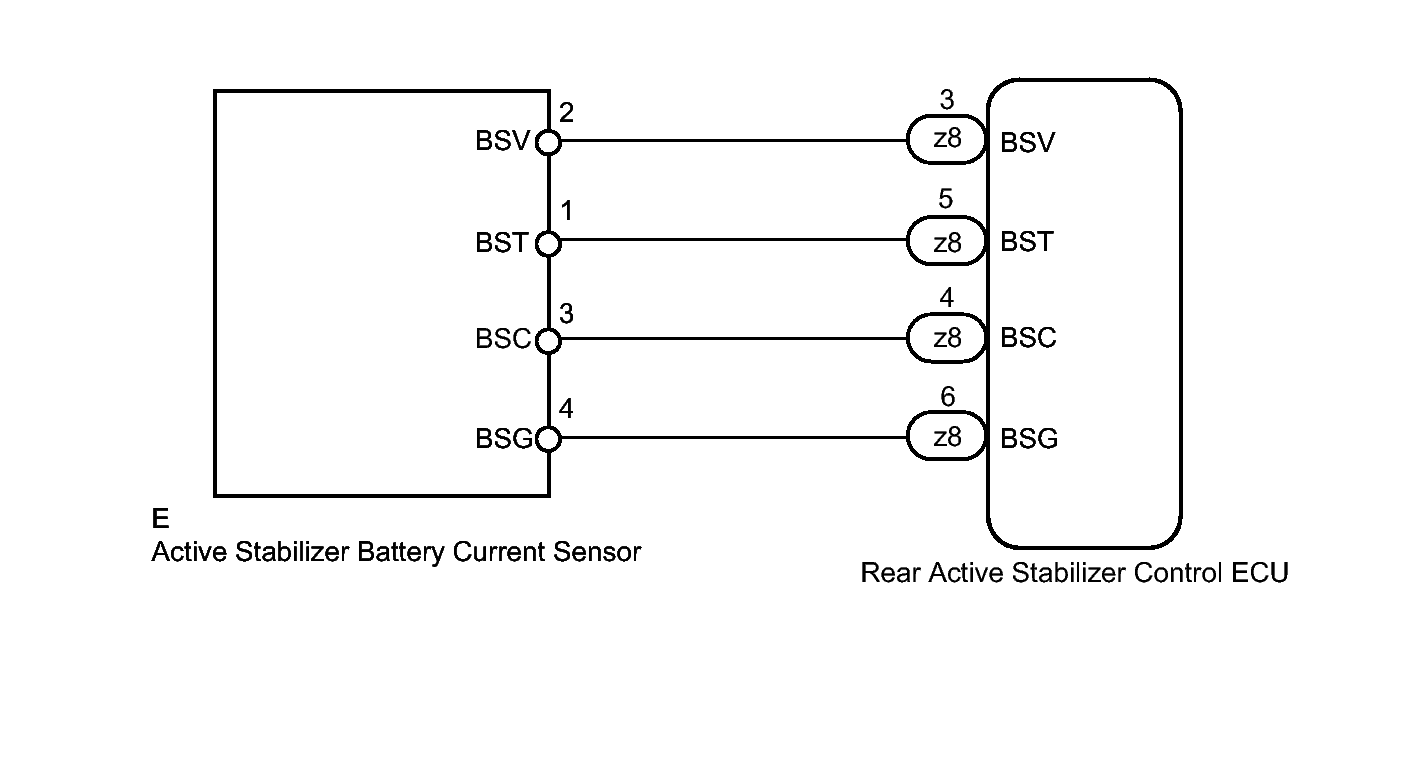

Fig 1: Active Stabilizer Battery Current Sensor - Wiring Diagram
GTY107477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
