DTC C1926: Sub Battery Temperature Sensor; DTC C1927: Sub Battery Current Sensor: Procedure

1. Turn the engine switch off.
2. Disconnect the E active stabilizer battery current sensor connector.
   Fig 1: Identifying Active Stabilizer Battery Current Sensor Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   2 (BSV) - 4 (BSG)	Always	3 to 10 kΩ
   2 (BSV) - 3 (BSC)	Always	Below 0.5 kΩ
   3 (BSC) - 4 (BSG)	Always	3 to 10 kΩ
   1 (BST) - 4 (BSG)	Always	1.5 to 2.5 kΩ

NG → REPLACE ACTIVE STABILIZER BATTERY CURRENT SENSOR

OK: Go to next step

1. Disconnect the z8 rear active stabilizer control ECU connector.
2. Disconnect the E active stabilizer battery current sensor connector.

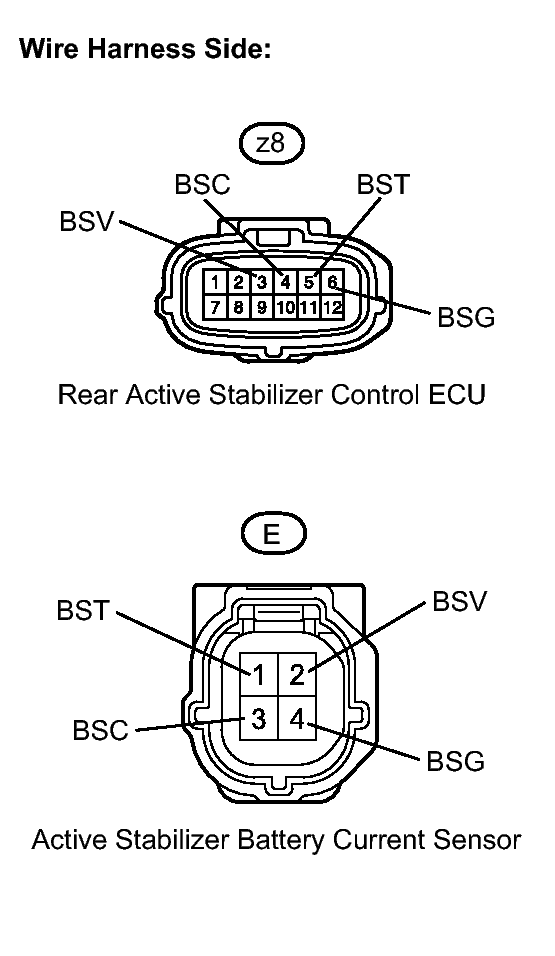

   Fig 2: Identifying z8 Rear Active Stabilizer Control ECU Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   z8-4 (BSC) - E-3 (BSC)	Always	Below 1 Ω
   z8-4 (BSC) or E-3 (BSC) - Body ground	Always	10 kΩ or higher
   z8-3 (BSV) - E-2 (BSV)	Always	Below 1 Ω
   z8-3 (BSV) or E-2 (BSV) - Body ground	Always	10 kΩ or higher
   z8-6 (BSG) - E-4 (BSG)	Always	Below 1 Ω
   z8-6 (BSG) or E-4 (BSG) - Body ground	Always	10 kΩ or higher
   z8-5 (BST) - E-1 (BST)	Always	Below 1 Ω
   z8-5 (BST) or E-1 (BST) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
