DTC C1925: Low Capacity Sub Battery; DTC C194E: Deterioration of Sub Battery: Wiring Diagram

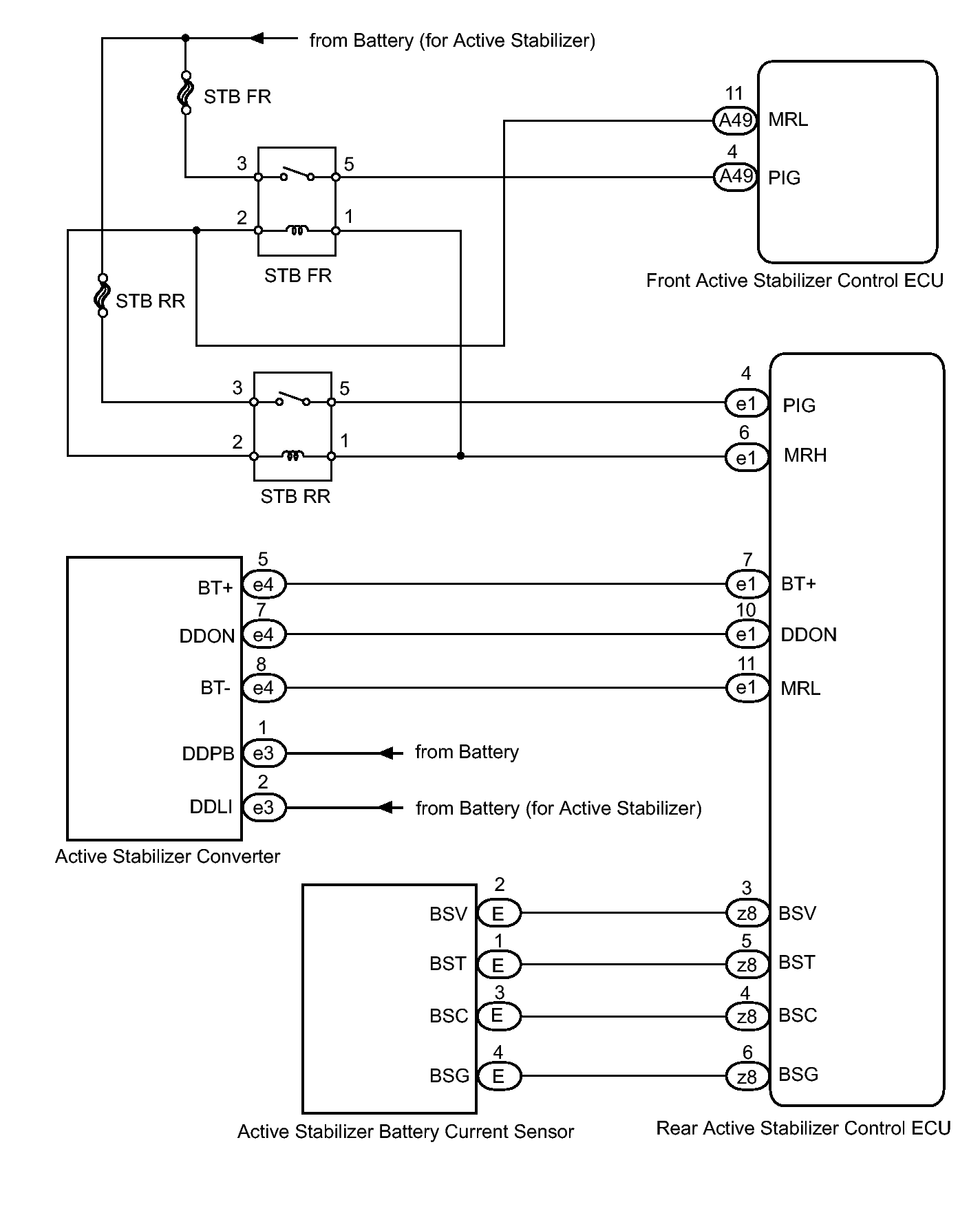

Fig 1: Active Stabilizer Battery Current Sensor - Wiring Diagram
GTY107274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
