DTC C1925: Low Capacity Sub Battery; DTC C194E: Deterioration of Sub Battery: Procedure

  1. CHECK VEHICLE CONDITION
    1. Confirm with the customer that the vehicle has not been used for purposes other than standard driving.

      OK

      No other parts are installed to battery (for active stabilizer)

      Vehicle has not been used in harsh conditions (slalom driving for extended periods of time, etc.)

    NG → TEST FOR RECURRENCE OF PROBLEM

    OK: Go to next step

  2. INSPECT ACTIVE STABILIZER BATTERY CURRENT SENSOR
    1. Turn the engine switch off.
    2. Disconnect the E active stabilizer battery current sensor connector.
      Fig 1: Identifying Active Stabilizer Battery Current Sensor Connector Terminal
      GTY107182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      2 (BSV) - 4 (BSG) Always 3 to 10 kΩ
      2 (BSV) - 3 (BSC) Always Below 0.5 kΩ
      3 (BSC) - 4 (BSG) Always 3 to 10 kΩ
      1 (BST) - 4 (BSG) Always 1.5 to 2.5 kΩ

    NG → REPLACE ACTIVE STABILIZER CURRENT SENSOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (REAR ACTIVE STABILIZER CONTROL ECU - ACTIVE STABILIZER BATTERY CURRENT SENSOR)
    1. Disconnect the z8 rear active stabilizer control ECU connector.
    2. Disconnect the E active stabilizer battery current sensor connector.

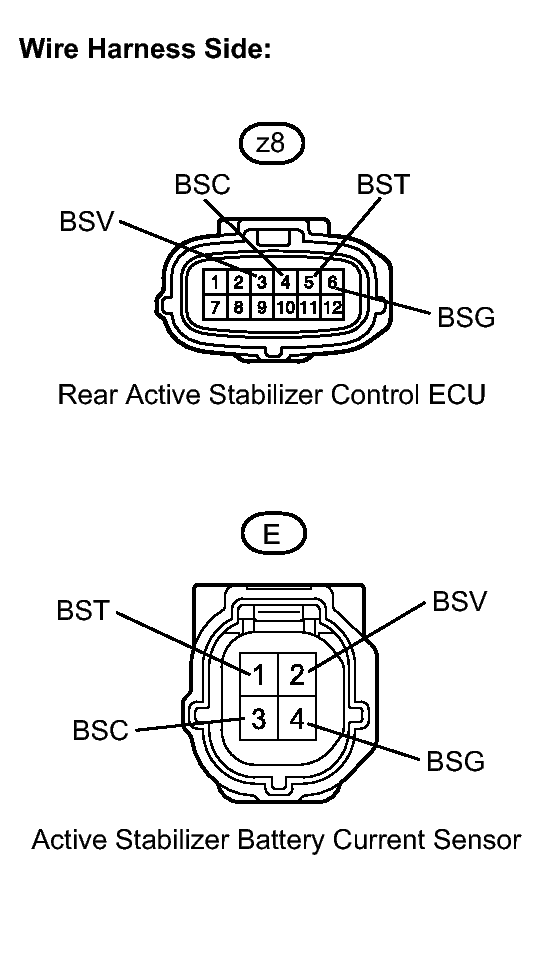

      Fig 2: Identifying z8 Rear Active Stabilizer Control ECU Connector Terminal
      GTY107565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      z8-4 (BSC) - E-3 (BSC) Always Below 1 Ω
      z8-4 (BSC) or E-3 (BSC) - Body ground Always 10 kΩ or higher
      z8-3 (BSV) - E-2 (BSV) Always Below 1 Ω
      z8-3 (BSV) or E-2 (BSV) - Body ground Always 10 kΩ or higher
      z8-6 (BSG) - E-4 (BSG) Always Below 1 Ω
      z8-6 (BSG) or E-4 (BSG) - Body ground Always 10 kΩ or higher
      z8-5 (BST) - E-1 (BST) Always Below 1 Ω
      z8-5 (BST) or E-1 (BST) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK SURROUNDING CONDITIONS (AMBIENT TEMPERATURE)
    1. Check the ambient temperature of the active stabilizer converter.

      OK

      No factors causing high temperatures

    NG → ELIMINATE FACTORS CAUSING HIGH TEMPERATURES

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (REAR ACTIVE STABILIZER CONTROL ECU - ACTIVE STABILIZER CONVERTER)
    1. Disconnect the e1 rear active stabilizer control ECU connector.
    2. Disconnect the e4 active stabilizer converter connector.

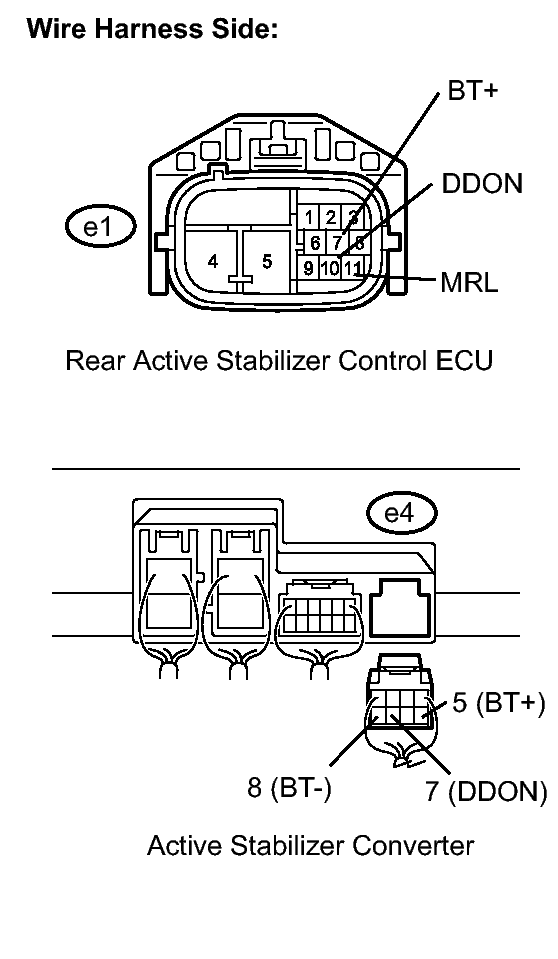

      Fig 3: Identifying e1 Rear Active Stabilizer Control ECU Connector Terminal
      GTY107241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      e1-7 (BT+) - e4-5 (BT+) Always Below 1 Ω
      e1-7 (BT+) or e4-5 (BT+) - Body ground Always 10 kΩ or higher
      e1-10 (DDON) - e4-7 (DDON) Always Below 1 Ω
      e1-10 (DDON) or e4-7 (DDON) - Body ground Always 10 kΩ or higher
      e1-11 (MRL) - e4-8 (BT-) Always Below 1 Ω
      e1-11 (MRL) or e4-8 (BT-) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (ACTIVE STABILIZER CONVERTER - BATTERY)
    1. Disconnect the e3 active stabilizer converter connector.
      Fig 4: Identifying e3 Active Stabilizer Converter Connector Terminal
      GTY107233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      e3-2 (DDLI) - Body ground Always 11 to 14 V
      e3-1 (DDPB) - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. INSPECT BATTERY (for Active Stabilizer)
    1. Wait 10 minutes after stopping the engine.
    2. Inspect the voltage of the battery terminals.

      Standard voltage

      12.4 V or higher

      HINT:

      If the result is not as specified, charge the battery, wait 10 minutes or more and inspect the voltage of the battery terminals again.

      NOTE:

      The terminals of the battery must be connected correctly when replacing the battery. If the battery terminals are connected incorrectly (positive and negative terminals connected in reverse), replace the active stabilizer converter and STB DC/DC fuse with new ones.

    NG → REPLACE BATTERY (for Active Stabilizer)

    OK: Go to next step

  8. INSPECT FUSE (STB RR)
    1. Remove the STB RR H-fuse from the luggage room No. 6 relay block.
    2. Measure the resistance according to the value(s) in the table below.
      Tester Connection Condition Specified Condition
      STB RR H-fuse Always Below 1 Ω

    NG → CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (RELAY BLOCK - BATTERY)
    1. Remove the rear active stabilizer relay from the luggage room No. 6 relay block.
      Fig 5: Identifying Luggage Room No 6 Relay Block Connector Terminals
      GTY101088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      Relay block rear active stabilizer relay terminal 3 - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. INSPECT REAR ACTIVE STABILIZER RELAY (Marking: STB RR)
    1. Remove the rear active stabilizer relay from the luggage room No. 6 relay block.
      Fig 6: Identifying Rear Active Stabilizer Relay (STB RR)
      GTY104326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      3 - 5 When battery voltage is not applied to terminals 1 and 2 10 kΩ or higher
      When battery voltage is applied to terminals 1 and 2 Below 1 Ω

    NG → REPLACE ACTIVE STABILIZER RELAY

    OK: Go to next step

  11. INSPECT FRONT ACTIVE STABILIZER RELAY (Marking: STB FR)
    1. Remove the front active stabilizer relay from the luggage room No. 6 relay block.
      Fig 7: Identifying Front Active Stabilizer Relay (STB RR)
      GTY104326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      3 - 5 When battery voltage is not applied to terminals 1 and 2 10 kΩ or higher
      When battery voltage is applied to terminals 1 and 2 Below 1 Ω

    NG → REPLACE FRONT ACTIVE STABILIZER RELAY

    OK: Go to next step

  12. CHECK ACTIVE STABILIZER RELAY CIRCUIT
    1. Remove the front and rear active stabilizer relays from the luggage room No. 6 relay block.
      Fig 8: Identifying Luggage Room No 6 Relay Block Connector Terminals
      GTY107236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      Relay block rear active stabilizer relay terminal 1 - Front active stabilizer relay terminal 1 Always Below 1 Ω
      Relay block rear active stabilizer relay terminal 1 or front active stabilizer relay terminal 1 - Body ground Always 10 kΩ or higher
      Relay block rear active stabilizer relay terminal 2 - Front active stabilizer relay terminal 2 Always Below 1 Ω
      Relay block rear active stabilizer relay terminal 2 or front active stabilizer relay terminal 2 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE LUGGAGE ROOM RELAY BLOCK

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (REAR ACTIVE STABILIZER CONTROL ECU - RELAY BLOCK)
    1. Disconnect the e1 rear active stabilizer control ECU connector.
    2. Remove the rear active stabilizer relay from the luggage room No. 6 relay block.

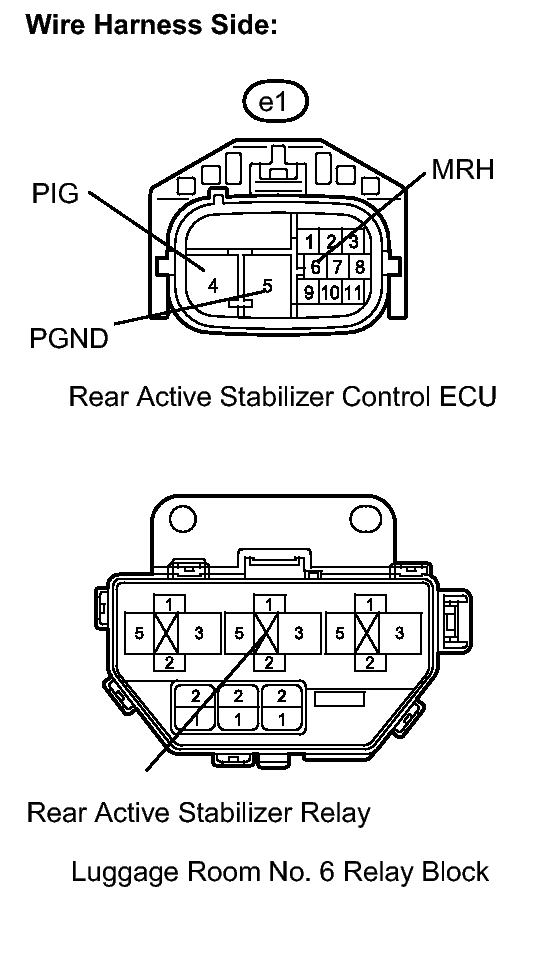

      Fig 9: Identifying e1 Rear Active Stabilizer Control ECU Connector Terminal
      GTY107244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      e1-4 (PIG) - Relay block rear active stabilizer relay terminal 5 Always Below 1 Ω
      e1-4 (PIG) or Relay block rear active stabilizer relay terminal 5 - Body ground Always 10 kΩ or higher
      e1-6 (MRH) - Relay block rear active stabilizer relay terminal 1 Always Below 1 Ω
      e1-6 (MRH) or Relay block rear active stabilizer relay terminal 1 - Body ground Always 10 kΩ or higher
      e1-5 (PGND) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  14. CHECK HARNESS AND CONNECTOR (FRONT ACTIVE STABILIZER CONTROL ECU - RELAY BLOCK)
    1. Disconnect the A49 front active stabilizer control ECU connector.
    2. Remove the front active stabilizer relay from the luggage room No. 6 relay block.

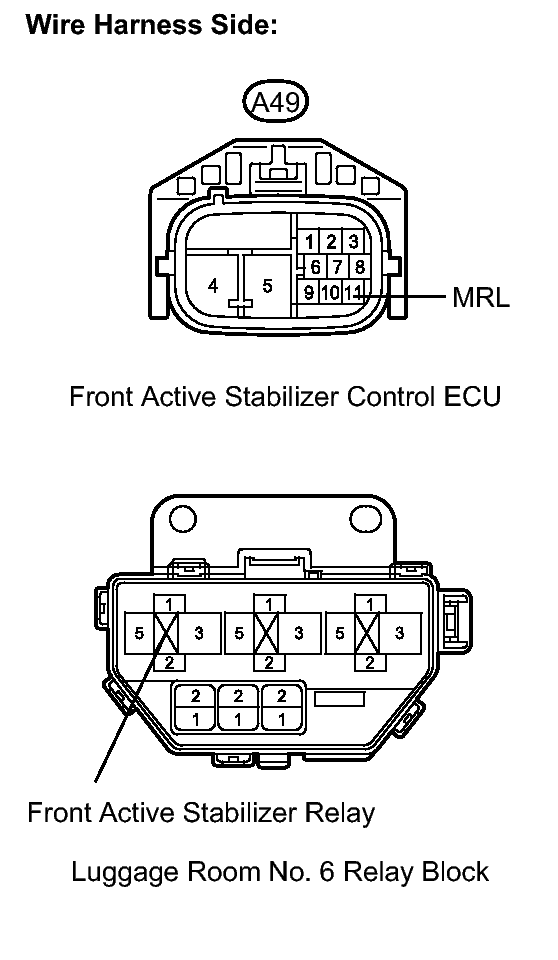

      Fig 10: Identifying A49 Front Active Stabilizer Control ECU Connector Terminal
      GTY107245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      A49-11 (MRL) - Relay block front active stabilizer relay terminal 2 Always Below 1 Ω
      A49-11 (MRL) or Relay block rear active stabilizer relay terminal 2 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  15. CHECK OPERATION OF ACTIVE STABILIZER CONVERTER
    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG) and press the Techstream main switch ON.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. Drive the vehicle and check if the problem recurs.
    5. Check for DTC.

      OK

      DTC is not output.

    OK → RETURNS TO NORMAL

    NG: Go to next step

  16. CHECK OPERATION OF REAR ACTIVE STABILIZER CONTROL ECU
    1. Turn the engine switch off.
    2. Exchange the front active stabilizer control ECU with the rear active stabilizer control ECU.
    3. Connect Techstream to the DLC3.
    4. Turn the engine switch on (IG) and press the Techstream main switch ON.
    5. Clear the DTC. Refer to DTC CHECK / CLEAR .
    6. Check for DTC.

      Result

      Result Proceed to
      DTC is not output A
      DTC C1925 or C194E is output B

    B → REPLACE ACTIVE STABILIZER CONVERTER

    A → See step   17

  17. REPLACE REAR ACTIVE STABILIZER CONTROL ECU. Refer to  REMOVAL
