Electronic Suspension
>>
Active Stabilizer Suspension (Diagnostic Codes & Symptom Tests)
>>
Active Stabilizer Suspension System
>>
DTC C1916: Malfunction in Rear Active Stabilizer Control ECU Local CAN Transmission
>>
Wiring Diagram

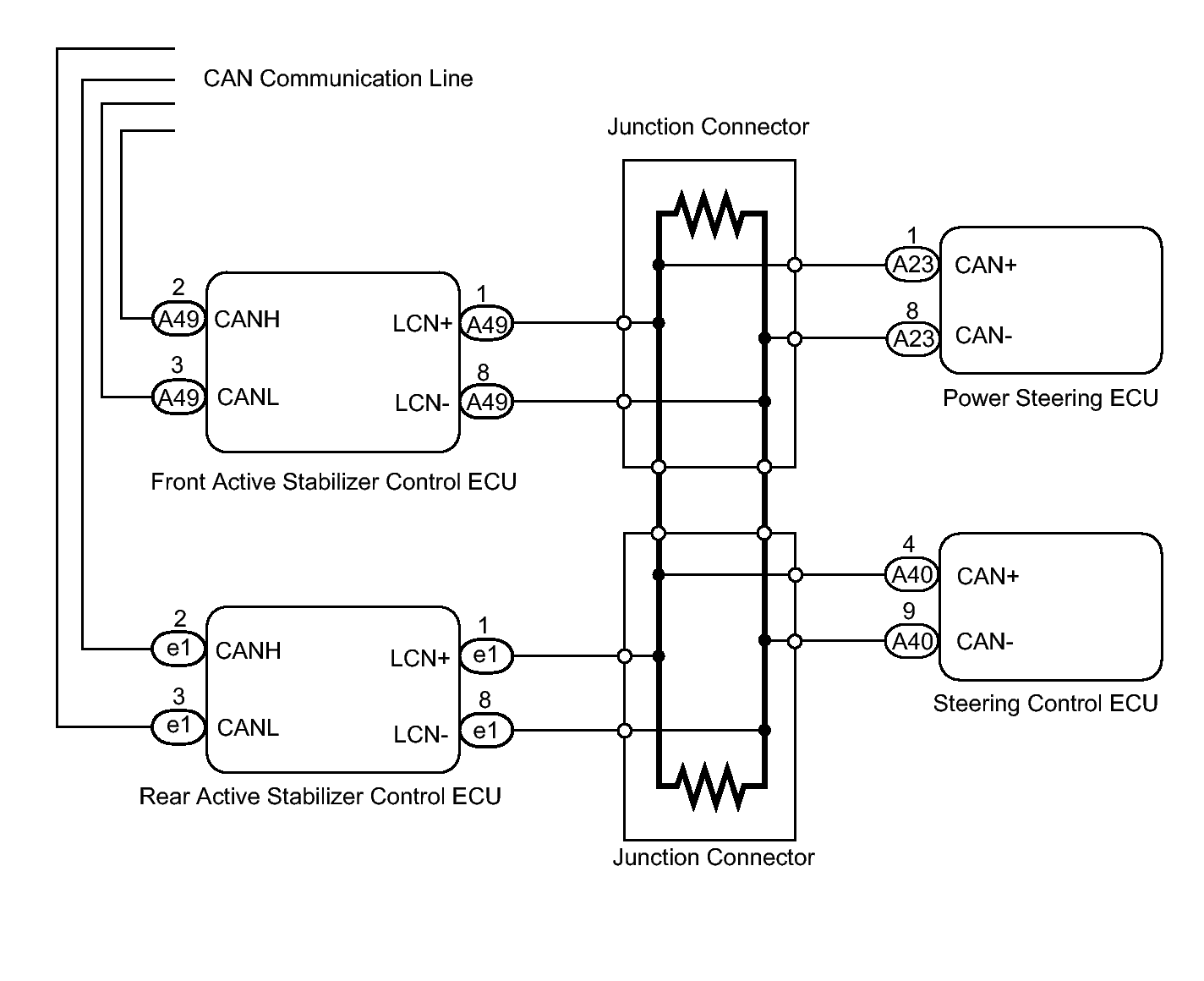

DTC C1916: Malfunction in Rear Active Stabilizer Control ECU Local CAN Transmission: Wiring Diagram
Fig 1: Rear Active Stabilizer Control ECU - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
