Parts Location: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.

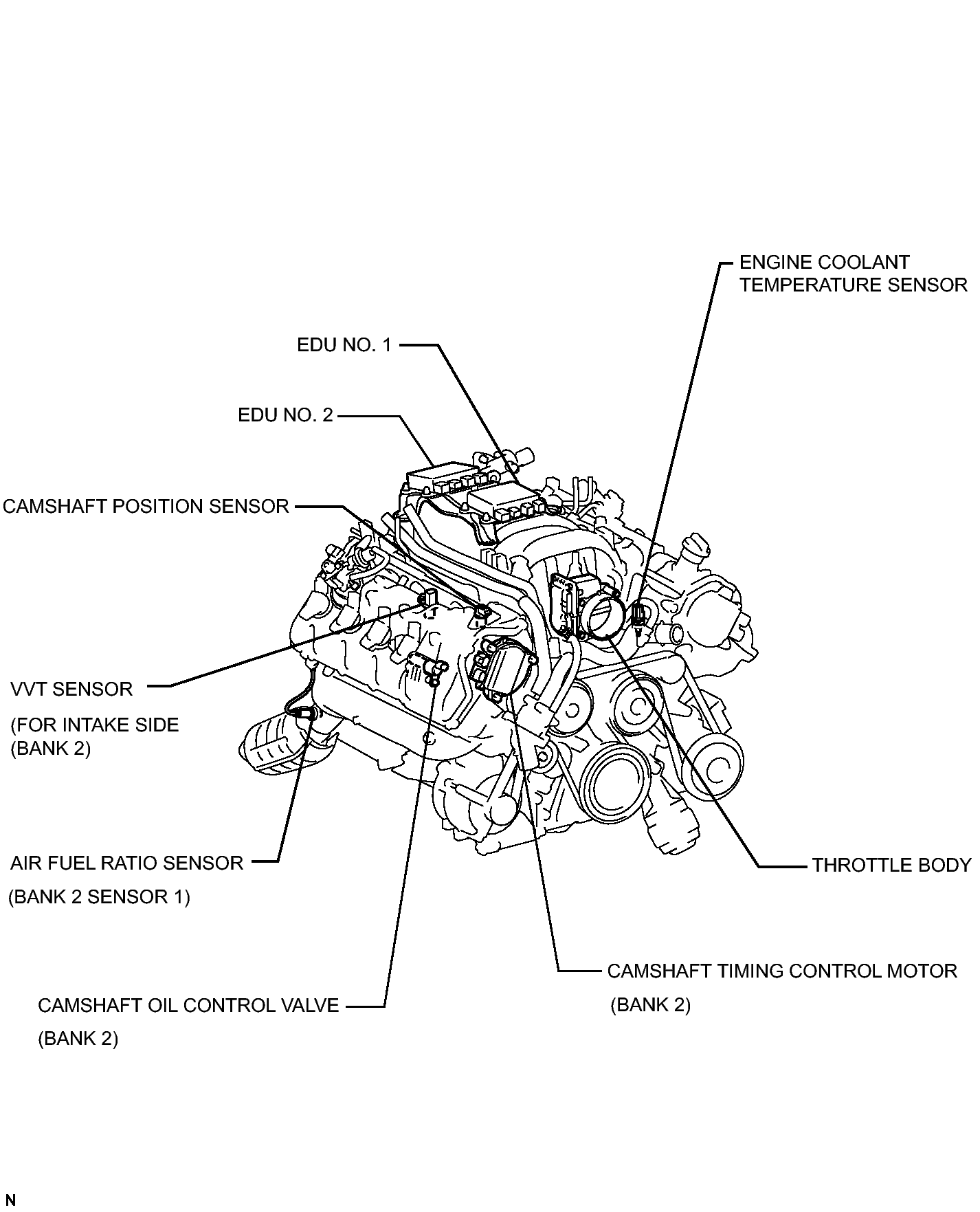

Fig 1: Identifying SFI System Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

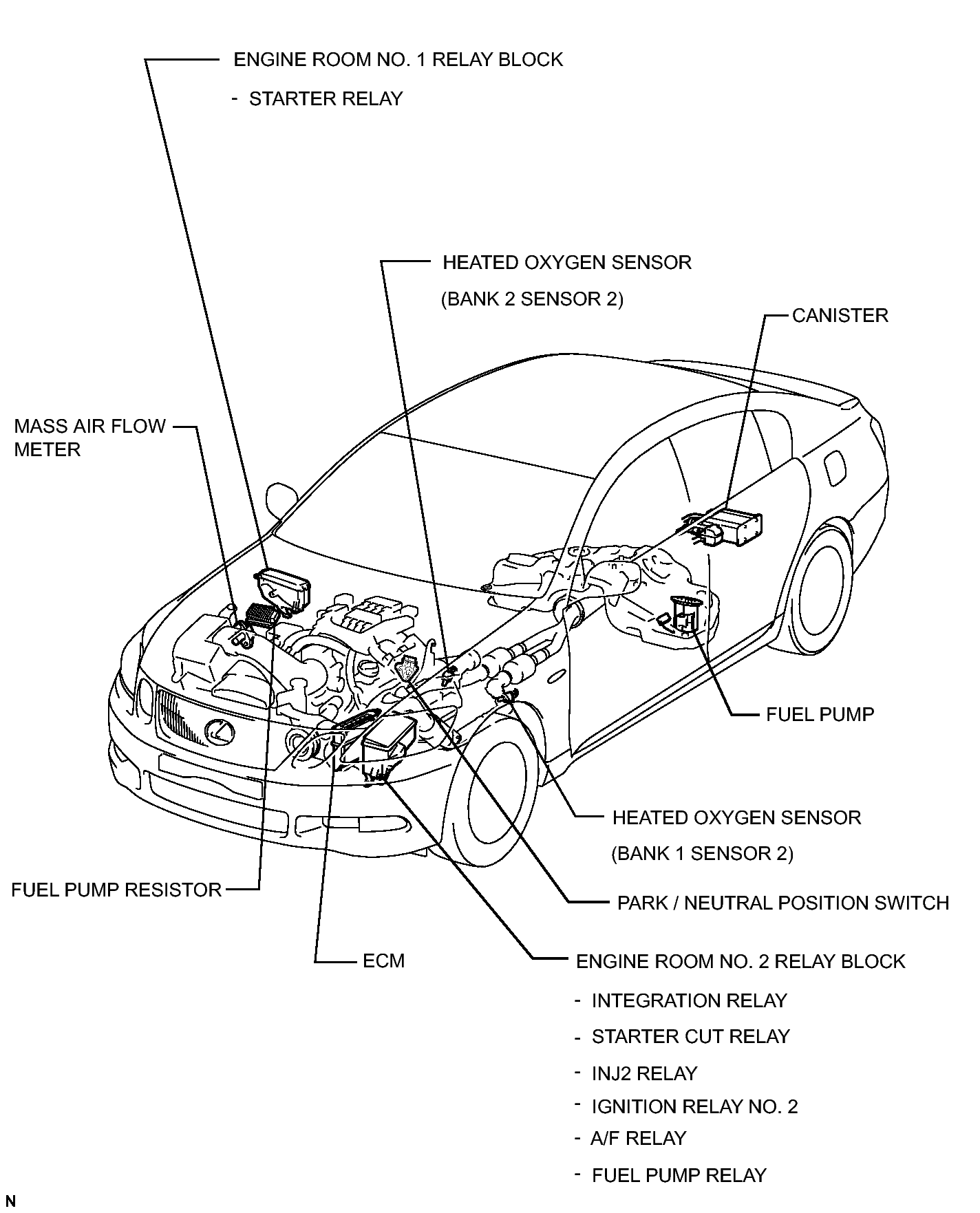

Fig 1: Identifying SFI System Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

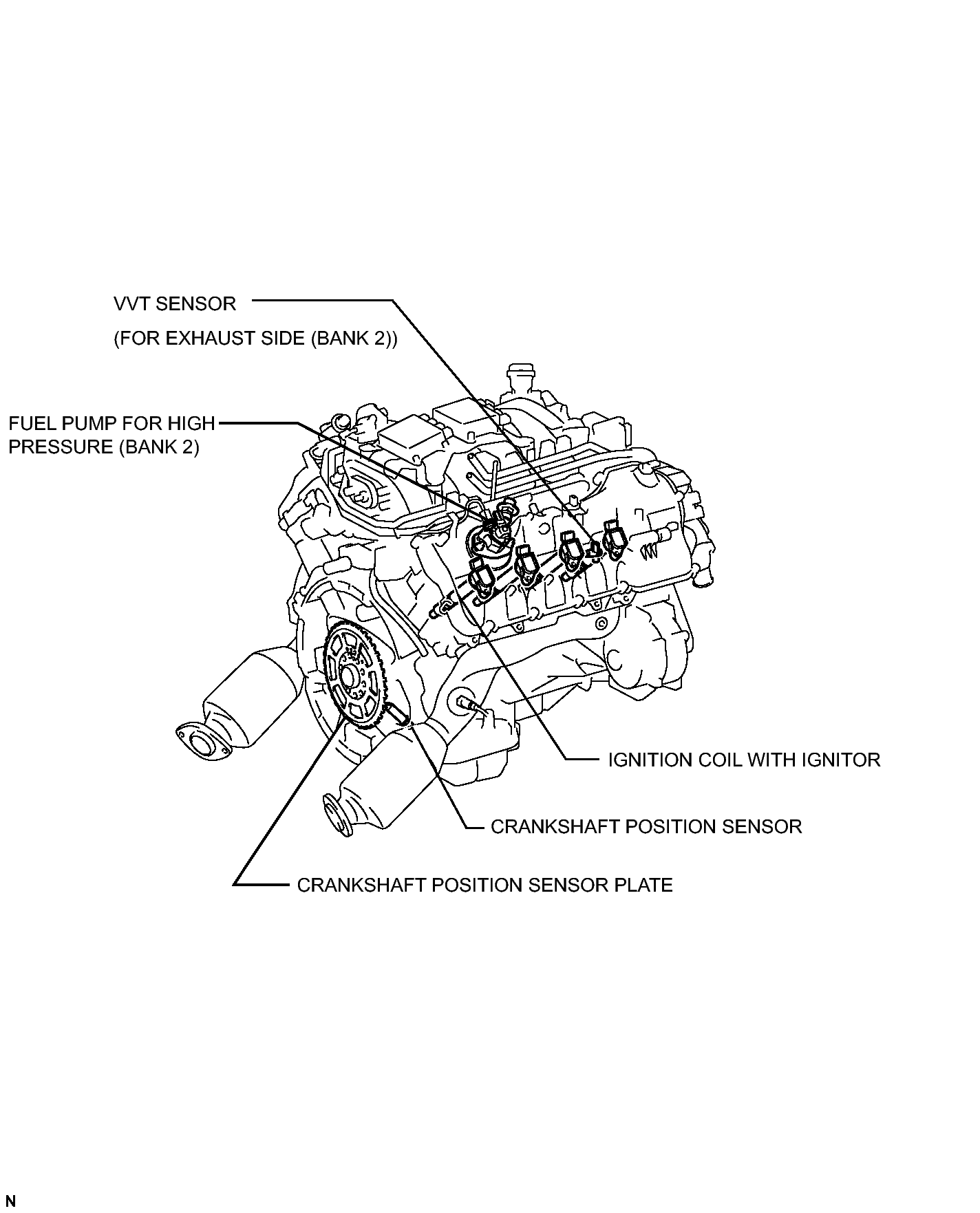

Fig 1: Identifying SFI System Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

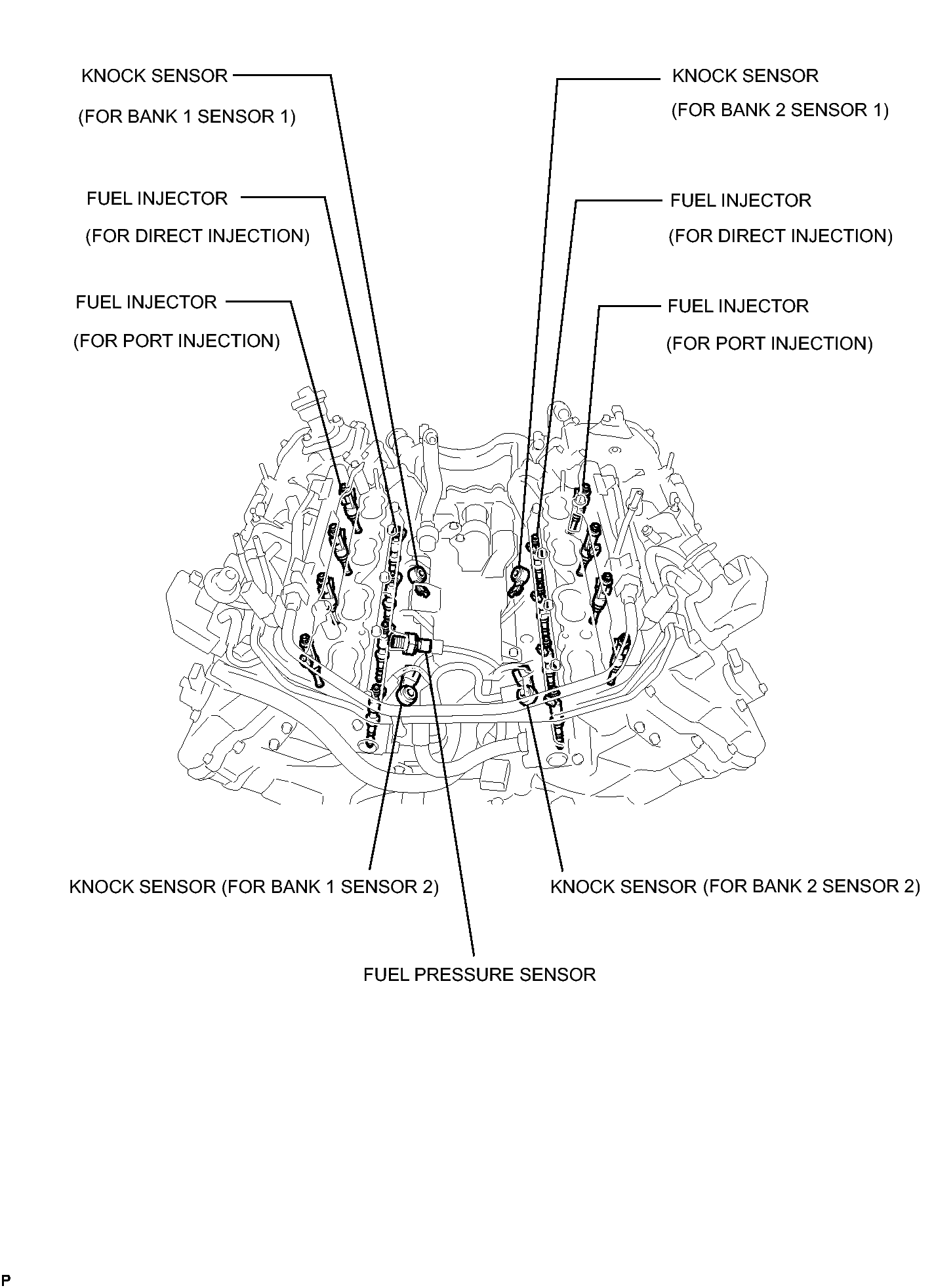

Fig 1: Identifying SFI System Components (4 Of 6)

Fig 1: Identifying SFI System Components (5 Of 6)

Fig 1: Identifying SFI System Components (6 Of 6)
