VSC OFF Indicator Light Remains ON: Wiring Diagram

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

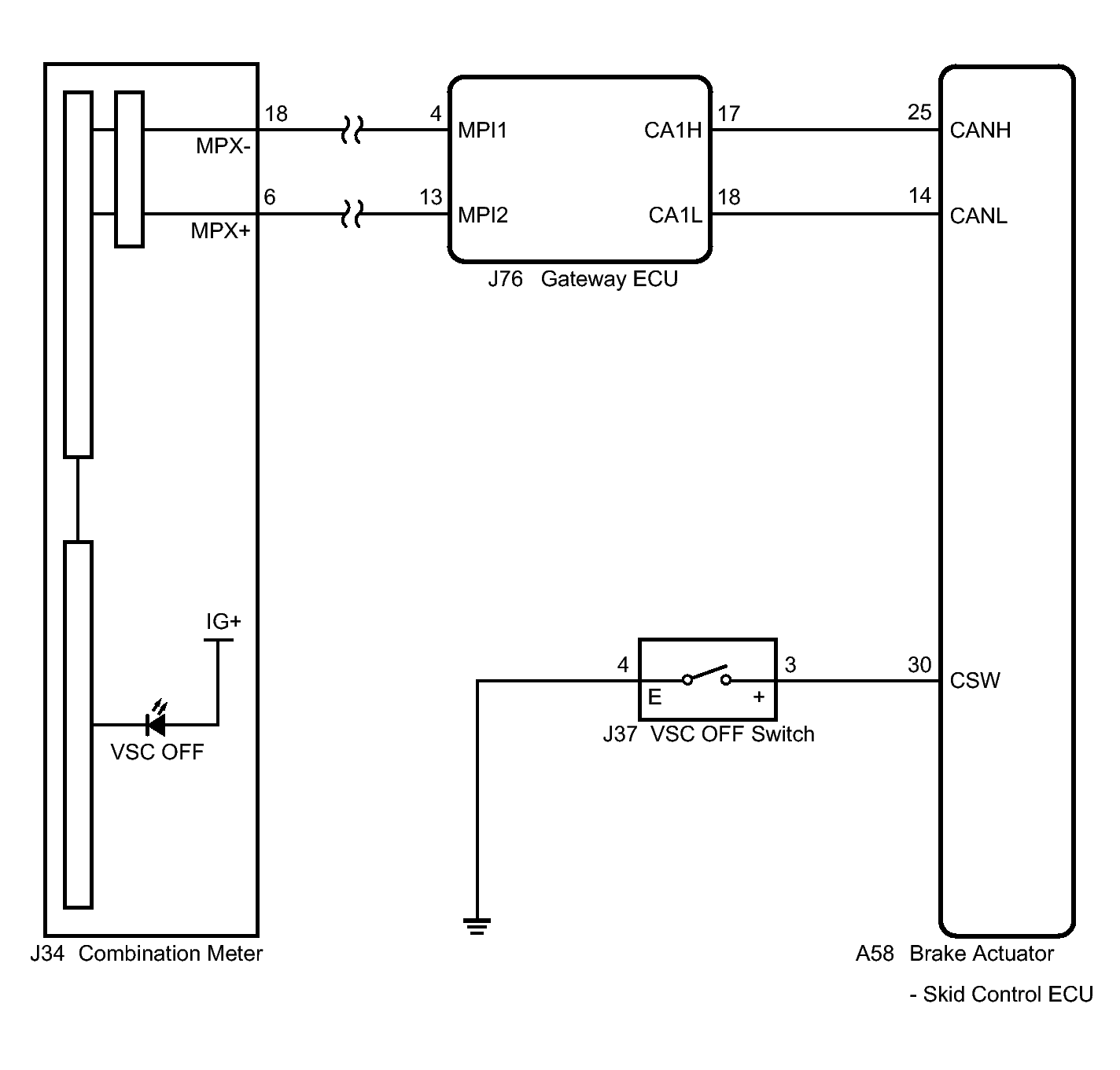

Fig 1: VSC OFF Switch & VSC OFF Indicator Light - Wiring Diagram
GTY138201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
