DTC C1415: Rear Speed Sensor RH Output Malfunction; DTC C1416: Rear Speed Sensor LH Output Malfunction: Procedure

1. Using the Techstream, check for any momentary interruption in the wire harness and connector corresponding to the DTC. Refer to CHECK FOR INTERMITTENT PROBLEMS .
   MOMENTARY INTERRUPTION CHECK



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Speed Open	RR speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RL Speed Open	RL speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-

   OK

   There are no momentary interruptions.

   HINT:

   Perform the above inspection before removing the sensor and connector.

NG → See step   4

OK: Go to next step

1. Turn the engine switch off.
2. Connect the Techstream to the DLC3.
3. Start the engine.
4. Select the Data List on the Techstream. Refer to DATA LIST / ACTIVE TEST .
   DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Wheel Speed	RR wheel speed sensor reading / min.: 0 km/h (0 mph), max.: 326.4 km/h (202 mph)	When vehicle is stopped: 0 km/h (0 mph) When vehicle is being driven at a constant speed: No major fluctuation	Similar speed as indicated on speedometer
   RL Wheel Speed	RL wheel speed sensor reading /min.: 0 km/h (0 mph), max.: 326.4 km/h (202 mph)	When vehicle is stopped: 0 km/h (0 mph) When vehicle is being driven at a constant speed: No major fluctuation	Similar speed as indicated on speedometer

5. Check the speed value output from the speed sensor displayed on the Techstream.

   HINT:

   Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart. Refer to ON-VEHICLE INSPECTION .

   OK

   The speed value output from the speed sensor displayed on the Techstream is the similar speed as indicated on the speedometer.

NG → See step   4

OK: Go to next step

1. Turn the engine switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Start the engine.
4. Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C1415 and C1416) are not output	A
   DTCs (C1415 and/or C1416) are output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   12

A → See step   10

1. Check the speed sensor installation.
   Fig 1: Checking Rear Speed Sensor Installation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   There is no clearance between the sensor and the rear axle carrier.

   The installation bolt is tightened properly.

   Torque

   8.5 N*m (87 kgf*cm, 75 in.*lbf)

NG → See step   13

OK: Go to next step

1. Remove the rear speed sensor. Refer to REMOVAL .
2. Check the speed sensor tip.

   OK

   No scratches, oil, or foreign matter on the sensor tip.

   NOTE:

   Check the speed sensor signal after cleaning or replacement. Refer to TEST MODE PROCEDURE .

NG → CLEAN OR REPLACE REAR SPEED SENSOR

OK: Go to next step

1. Remove the rear speed sensor rotor. Refer to REMOVAL .
2. Check the speed sensor rotor.

   OK

   No scratches, oil, or foreign matter on the rotors.

   NOTE:

   Check the speed sensor signal after cleaning or replacement. Refer to TEST MODE PROCEDURE .

   HINT:

   The rear speed sensor rotor is incorporated into the rear axle hub and bearing assembly.

   If the rear speed sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

NG → CLEAN OR REPLACE REAR SPEED SENSOR ROTOR

OK: Go to next step

1. Install the rear speed sensor and the rear speed sensor rotor.
   Fig 2: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the rear speed sensor connector and the skid control sensor wire.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   X1 ("A"-2) - X1 ("B"-4)	Always	Below 1 Ω
   X1 ("A"-2) - X1 ("B"-5)	Always	10 kΩ or higher
   X1 ("A"-2) - Body ground	Always	10 kΩ or higher
   X1 ("A"-1) - X1 ("B"-5)	Always	Below 1 Ω
   X1 ("A"-1) - X1 ("B"-4)	Always	10 kΩ or higher
   X1 ("A"-1) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   Y1 ("A"-2) - Y1 ("B"-4)	Always	Below 1 Ω
   Y1 ("A"-2) - Y1 ("B"-5)	Always	10 kΩ or higher
   Y1 ("A"-2) - Body ground	Always	10 kΩ or higher
   Y1 ("A"-1) - Y1 ("B"-5)	Always	Below 1 Ω
   Y1 ("A"-1) - Y1 ("B"-4)	Always	10 kΩ or higher
   Y1 ("A"-1) - Body ground	Always	10 kΩ or higher

   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE .

NG → REPLACE SKID CONTROL SENSOR WIRE

OK: Go to next step

1. Reconnect the skid control sensor wire.

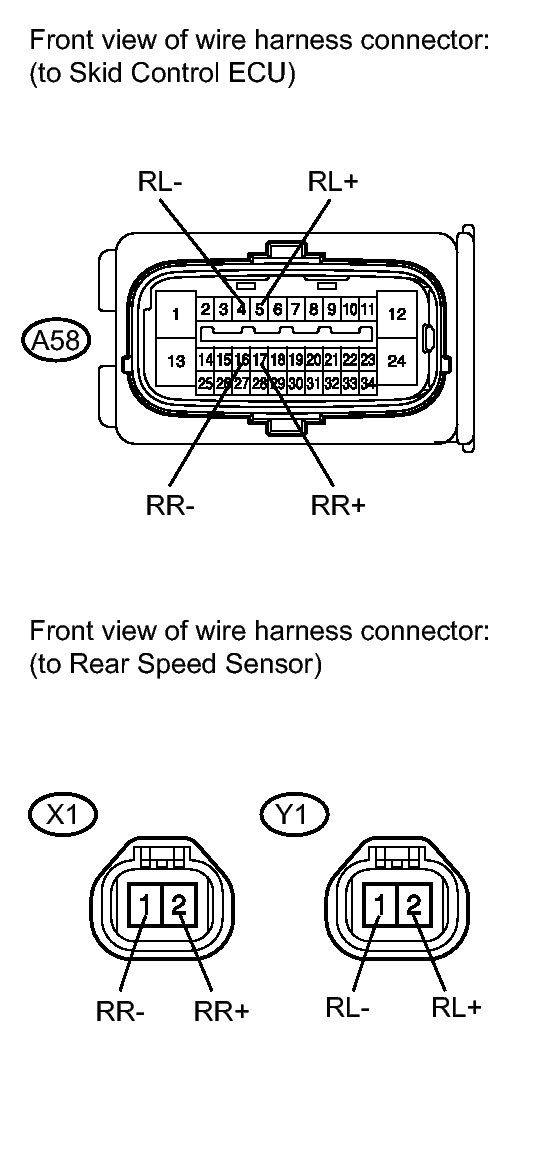

   Fig 3: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the skid control ECU connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   A58-17 (RR+) - X1-2 (RR+)	Always	Below 1 Ω
   A58-17 (RR+) - Body ground	Always	10 kΩ or higher
   A58-16 (RR-) - X1-1 (RR-)	Always	Below 1 Ω
   A58-16 (RR-) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   A58-5 (RL+) - Y1-2 (RL+)	Always	Below 1 Ω
   A58-5 (RL+) - Body ground	Always	10 kΩ or higher
   A58-4 (RL-) - Y1-1 (RL-)	Always	Below 1 Ω
   A58-4 (RL-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the skid control ECU connector.
   Fig 4: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   for RH

   for LH

   Tester Connection	Switch Condition	Specified Condition
   X1-2 (RR+) - Body ground	Engine switch on (IG)	8 to 14 V

   Tester Connection	Switch Condition	Specified Condition
   Y1-2 (RL+) - Body ground	Engine switch on (IG)	8 to 14 V

   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE .

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

NG → See step   12

OK → See step   11
