ABS Warning Light Remains ON: Wiring Diagram

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

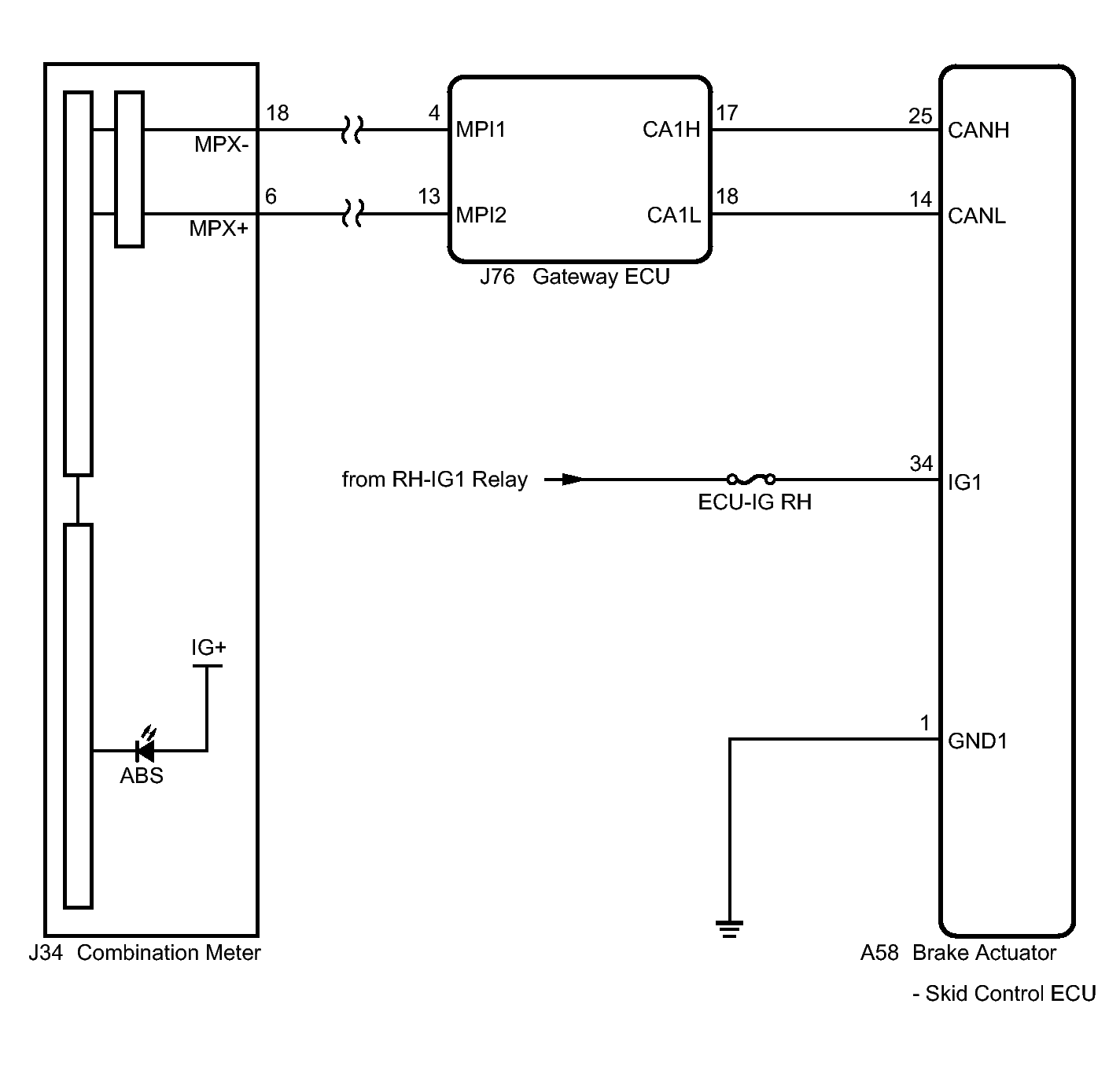

Fig 1: Skid Control ECU Gateway ECU, & Combination Meter - Wiring Diagram
GTY136296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
