INSPECT TIRES

Check the tires for wear and proper inflation pressure.

COLD TIRE INFLATION PRESSURE

Tire Size		Specified Value
Front	Rear	Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
205/55R16 89W		240 (2.4, 35)	260 (2.6, 38)
225/45R17 91V		240 (2.4, 35)	260 (2.6, 38)
225/45R17 90W	245/45R17 95W	240 (2.4, 35)	260 (2.6, 38)
225/45R17 91V	245/45R17 95V	240 (2.4, 35)	260 (2.6, 38)
225/40R18 88Y	255/40R 18 95Y	240 (2.4, 35)	260 (2.6, 38)
225/40R18 88W	255/40R 18 95W	240 (2.4, 35)	260 (2.6, 38)

Using a dial indicator, check the runout of tires.

Fig 1: Checking Runout Of Tires
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum tire runout

1.0 mm (0.039 in.)

ROTATE TIRES
1. Rotate the tires.

  Fig 2: Rotating Tires
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - When the same size tires are installed to the front and rear axles, rotate the tires as shown in illustration (A).
  - When different size conventional (non-directional) tires are installed to the front and rear axles, rotate the tires as shown in illustration (B).
  - When different size directional tires are installed to the front and rear axles, do not rotate the tires.
INSPECT WHEEL BALANCE
1. Check and adjust the off-the-car balance.

  Fig 3: Inspecting Wheel Balance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum imbalance after adjustment

  8.0 g (0.018 lb)
  NOTE:
  - Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.
  - Do not touch the adhesive surface of the balance weight.

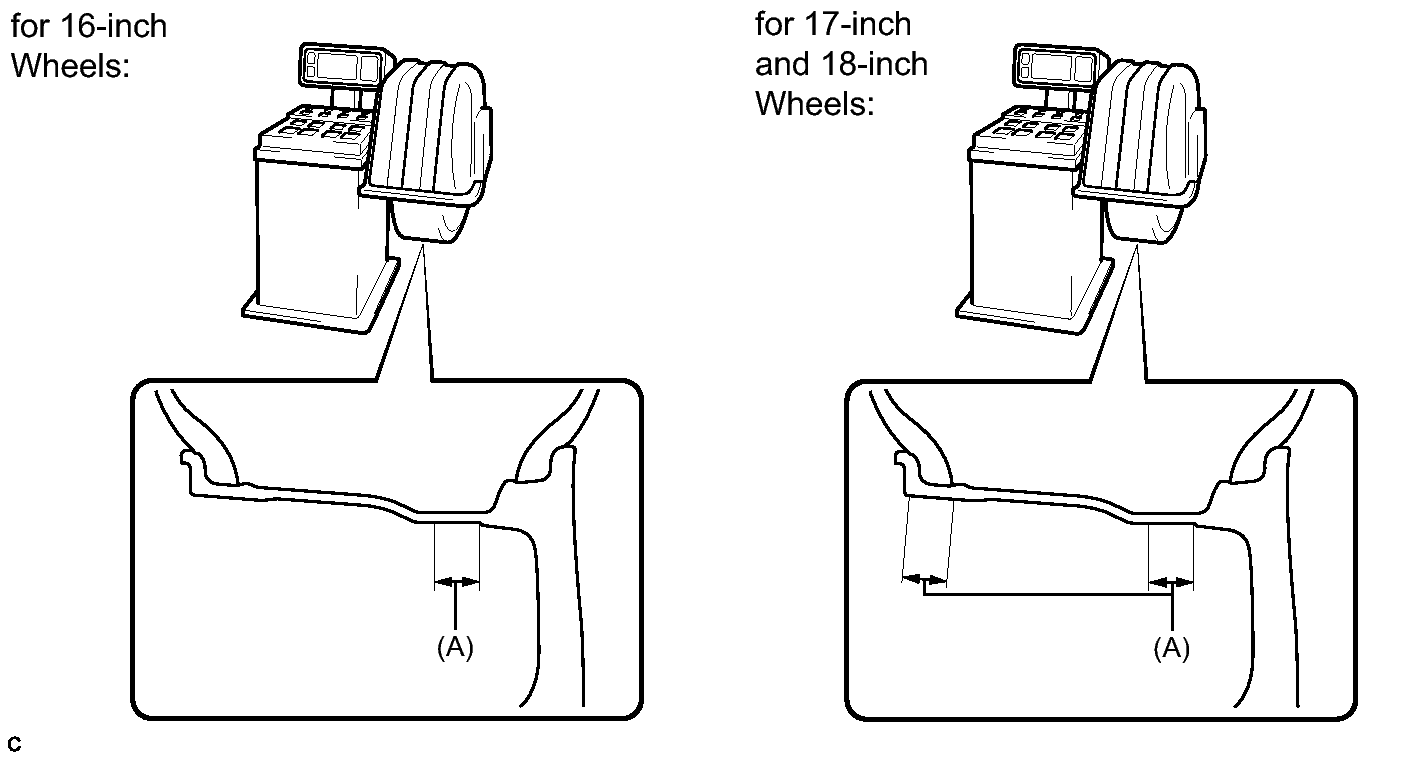

  - Adhere the sticking type balance weight to the flat surface (A) shown in the illustration.
    Width (A)

    25 mm (0.984 in.)
  - Push the balance weight securely with a finger to adhere it to the position.
  - Do not reuse a balance weight.
  - Use the LEXUS genuine sticking type balance weight.
  HINT:
  - For 17-inch and 18-inch wheels, both inner side and outer side balance weight are sticking type.
  - For 16-inch wheels, the inner side balance weight should be installed by clipping it to the rim.
  - If necessary, check and adjust the on-the-car balance.
INSPECT FRONT AXLE HUB BEARING LOOSENESS
1. Inspect the front axle hub bearing looseness. Refer to ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB BEARING LOOSENESS
1. Inspect the rear axle hub bearing looseness. Refer to ON-VEHICLE INSPECTION .
INSPECT FRONT AXLE HUB RUNOUT
1. Inspect the front axle hub runout. Refer to ON-VEHICLE INSPECTION .
INSPECT REAR AXLE HUB RUNOUT
1. Inspect the rear axle hub runout. Refer to ON-VEHICLE INSPECTION .
