Radio Receiver: Removal: Removal

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)  . Refer to REMOVAL - Step 4
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)  . Refer to REMOVAL - Step 5
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to REMOVAL - Step 6
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to REMOVAL - Step 7
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  . Refer to REMOVAL - Step 8
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to REMOVAL - Step 9
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to REMOVAL - Step 10
  8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY  . Refer to REMOVAL - Step 12
  10. REMOVE CONSOLE BOX  . Refer to REMOVAL - Step 13
  11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL - Step 14
  12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to REMOVAL - Step 15
  13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Remove the 4 bolts.

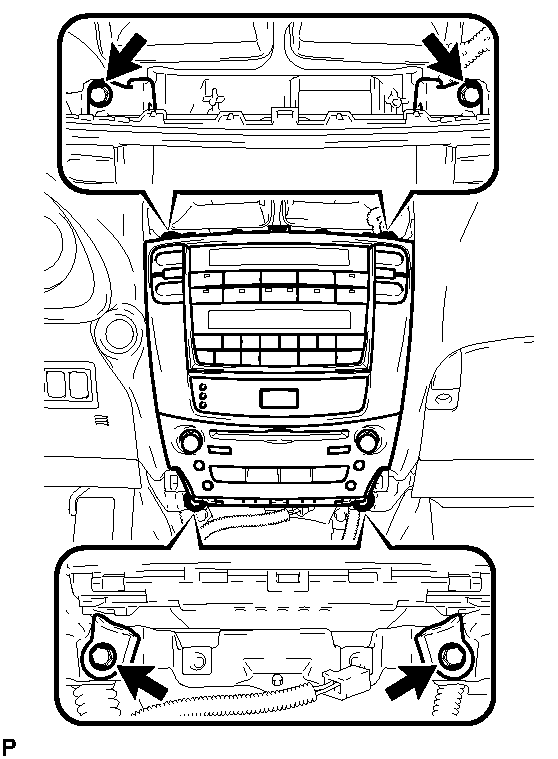

      Fig 1: Locating Integration Control Panel Bolts
      GTY127355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the integration control panel w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the panel.
  14. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Remove the 6 bolts and radio No. 1 bracket.
      Fig 2: Identifying Bolts And Radio No. 1 Bracket
      GTY151000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Remove the 6 bolts and radio No. 2 bracket.
      Fig 3: Identifying Bolts And Radio No. 2 Bracket
      GTY127564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Slide the integration control panel in the direction shown by the arrow to remove the radio receiver assembly.
      Fig 4: Identifying Radio Receiver Assembly (W/O Navigation System)
      GTY130670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Remove the 4 bolts.

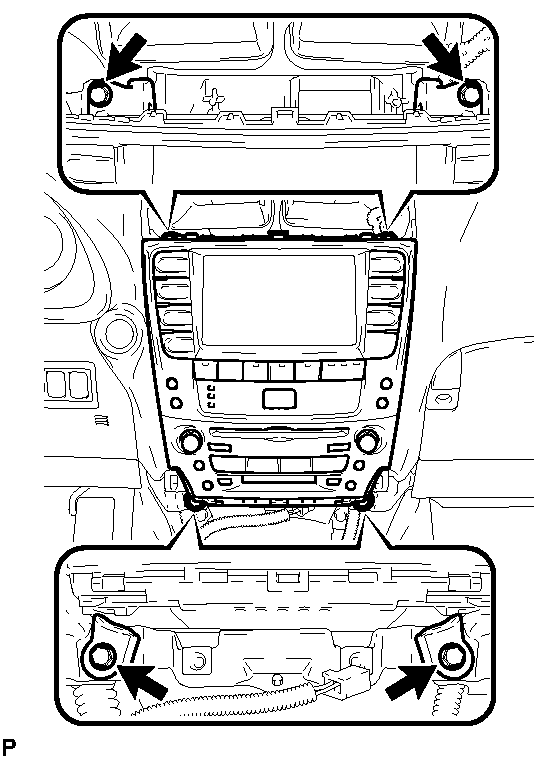

      Fig 5: Identifying Bolts
      GTY121733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the multi-display w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the multi-display.
  18. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Disengage the connector clamp.
      Fig 6: Identifying Connector Clamp
      GTY140294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 7 bolts and radio No. 1 bracket.
      Fig 7: Identifying Bolts And Radio No. 1 Bracket
      GTY126553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Remove the 7 bolts and radio No. 2 bracket.
      Fig 8: Identifying Bolts And Radio No. 2 Bracket
      GTY150846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Slide the multi-display in the direction shown by the arrow to remove the radio receiver assembly.
      Fig 9: Identifying Multi-Display Assembly
      GTY129618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
