Radio Antenna Cord: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

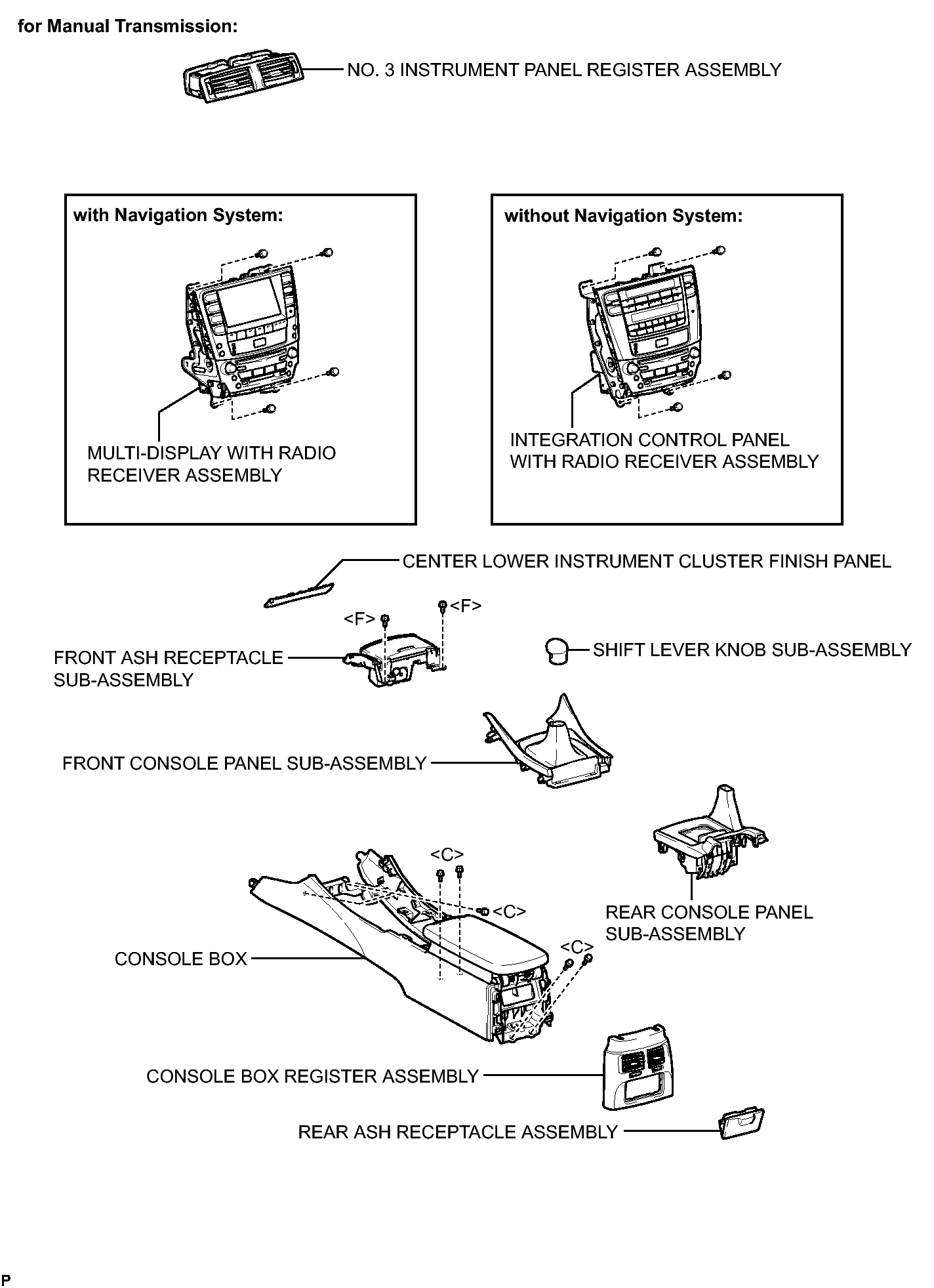

Fig 1: Identifying Radio Antenna Cord Replacement Components (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

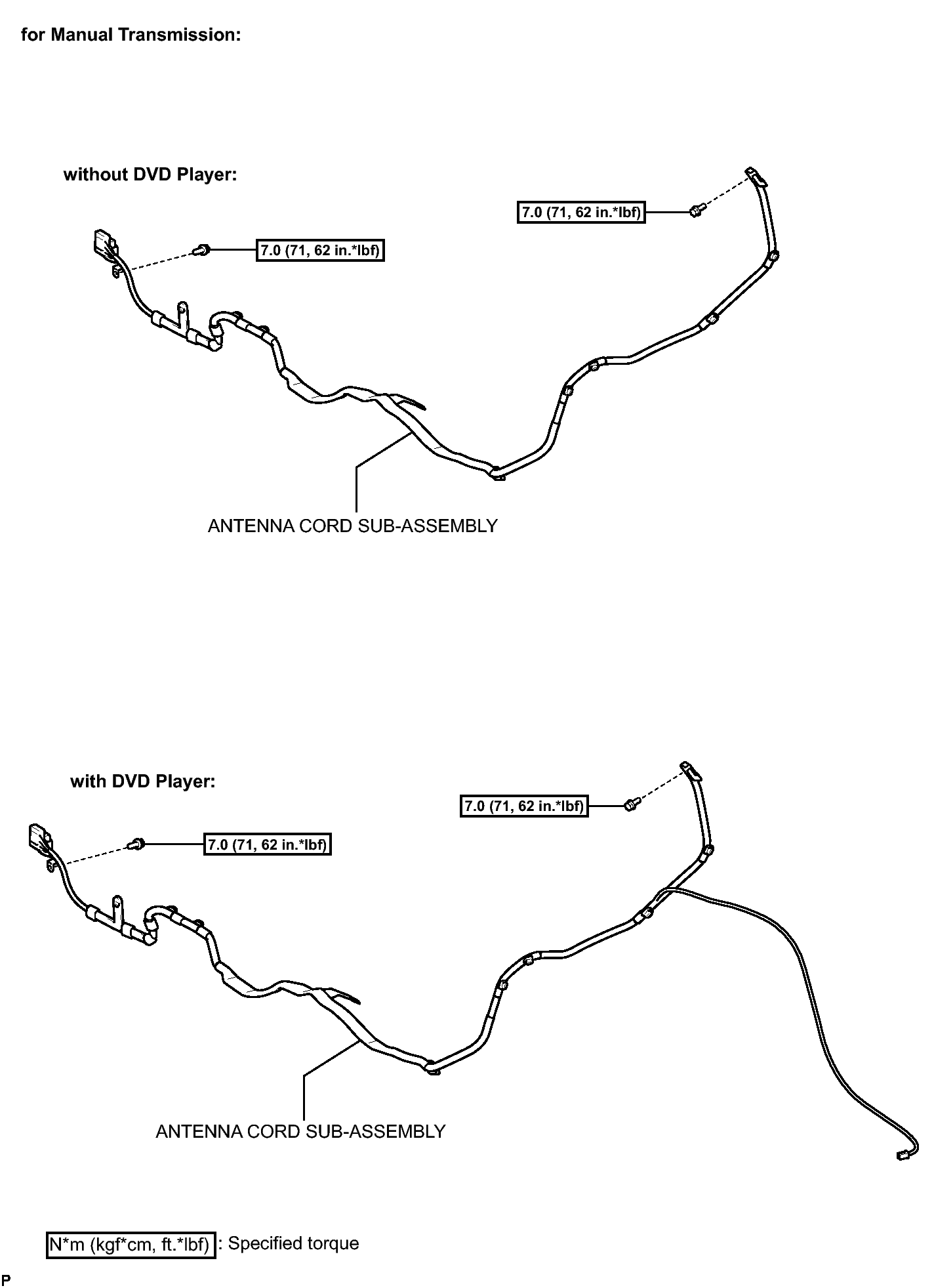

Fig 1: Identifying Radio Antenna Cord Replacement Components (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

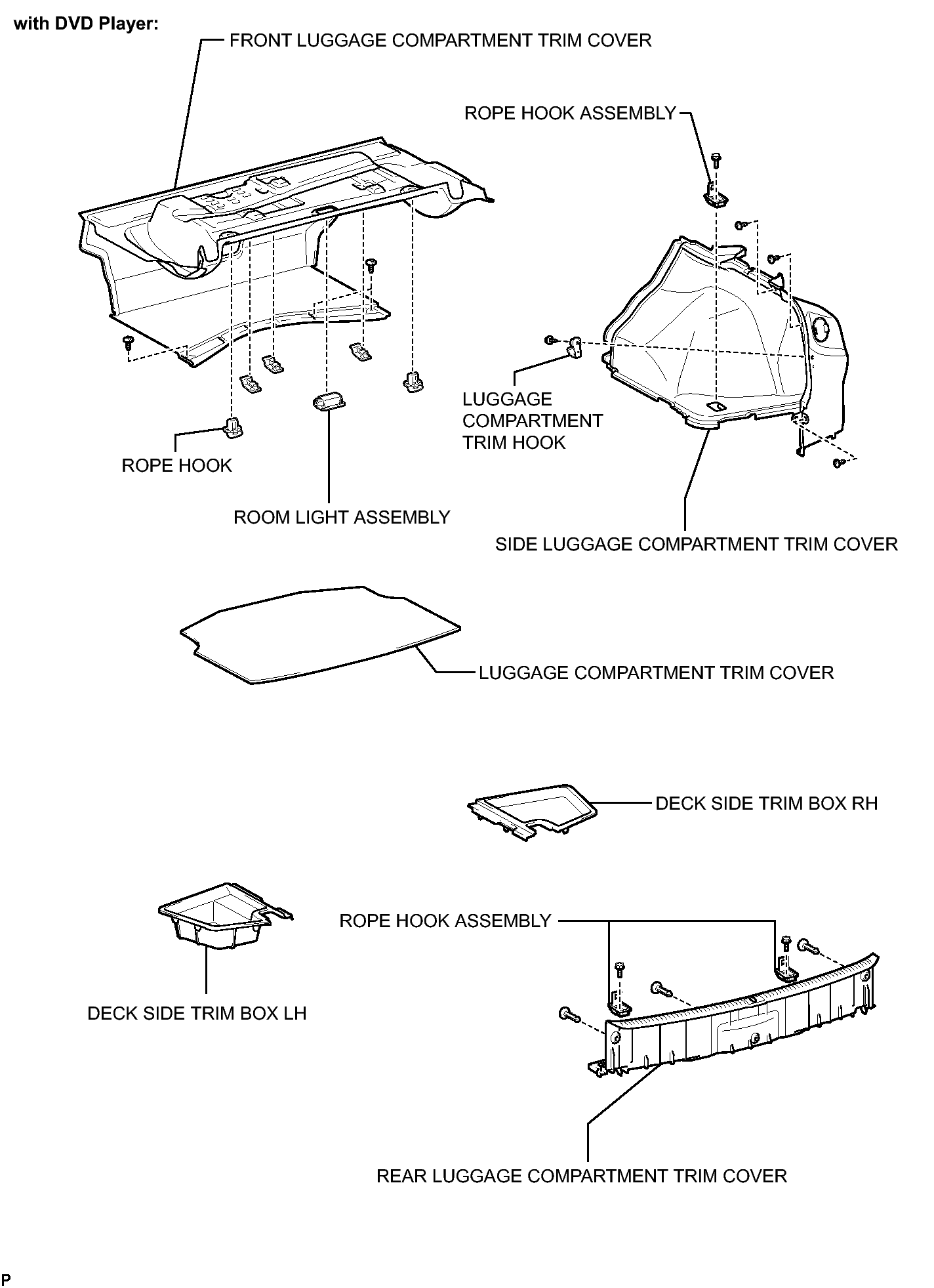

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

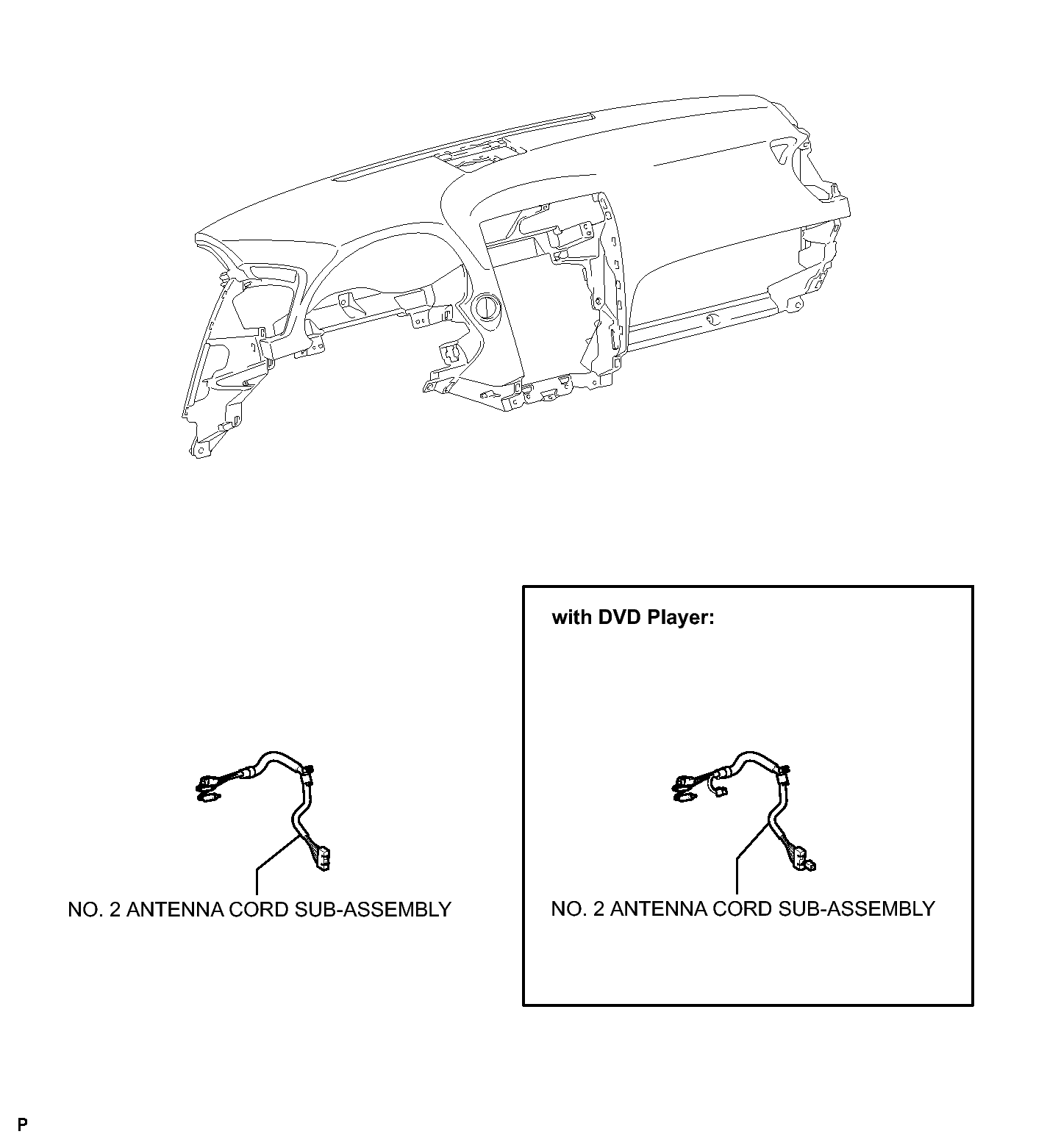

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

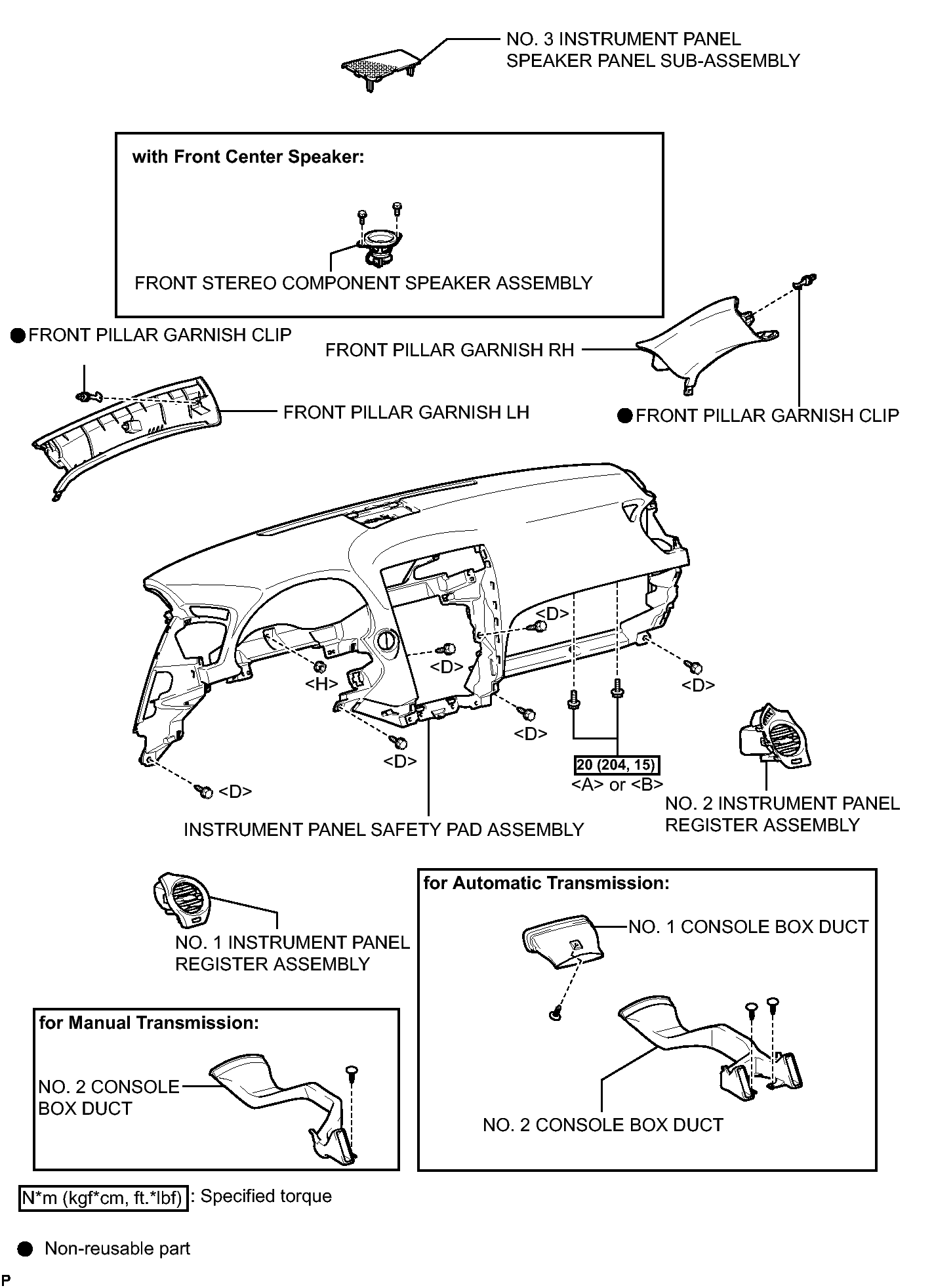

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

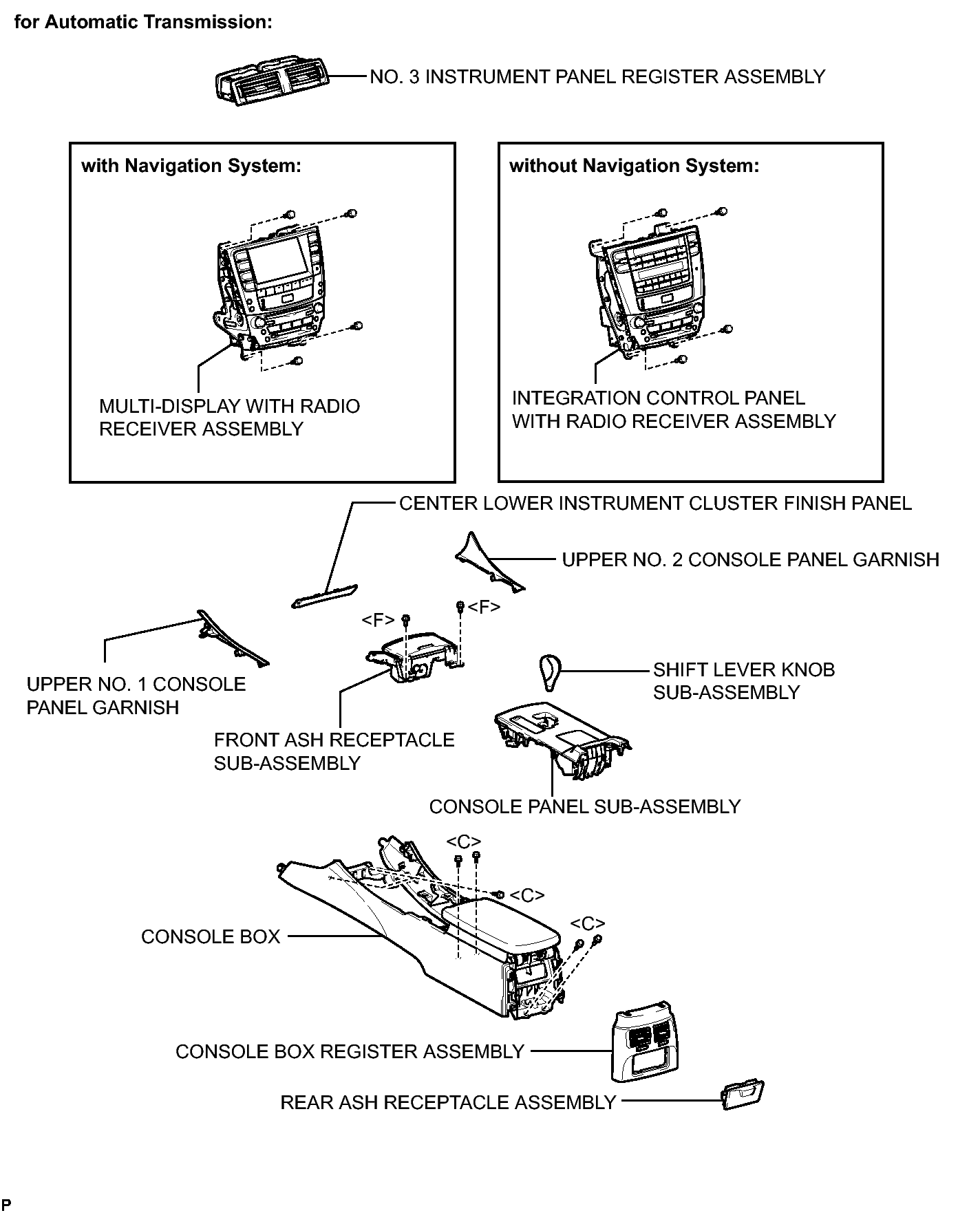

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

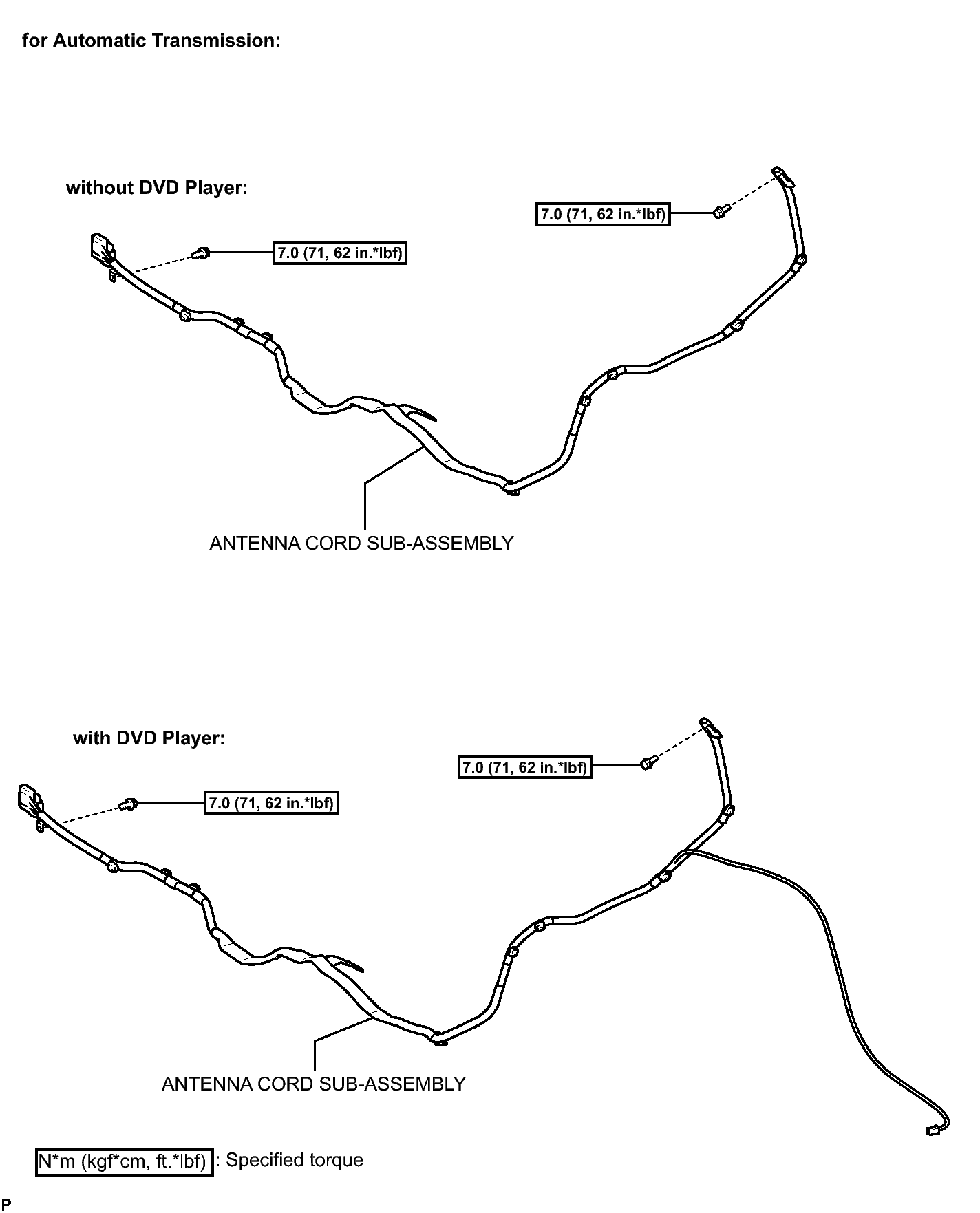

Fig 1: Identifying Radio Antenna Cord Replacement Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

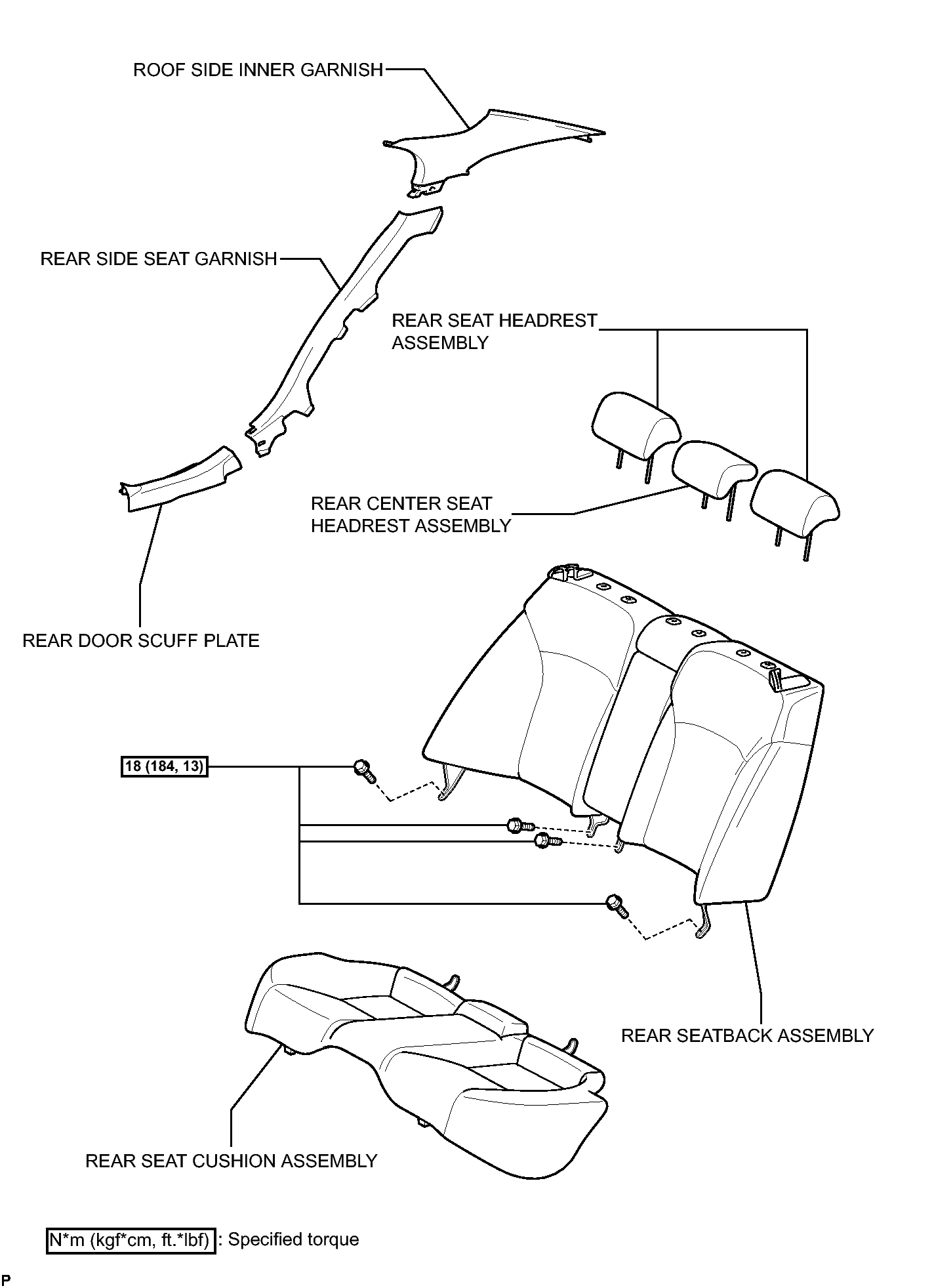

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (8 Of 11)

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specification (9 Of 11)

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (10 Of 11)

Fig 1: Identifying Radio Antenna Cord Replacement Components With Torque Specifications (11 Of 11)
