Section 192 (Multiplex Communication (Diagnostics - Introduction))
>>
Multiplex Communication System
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

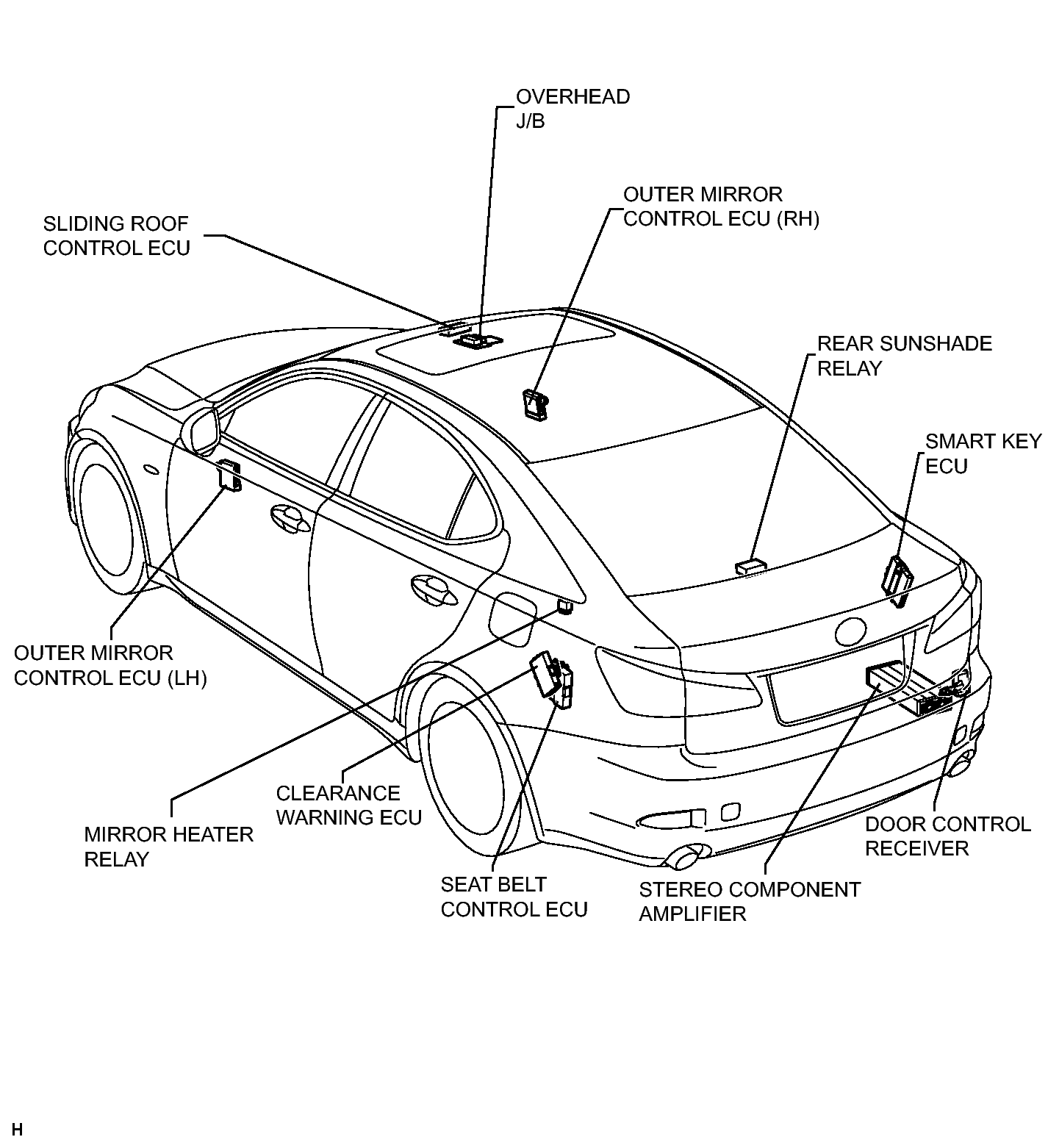

Fig 1: Identifying Multiplex Communication System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

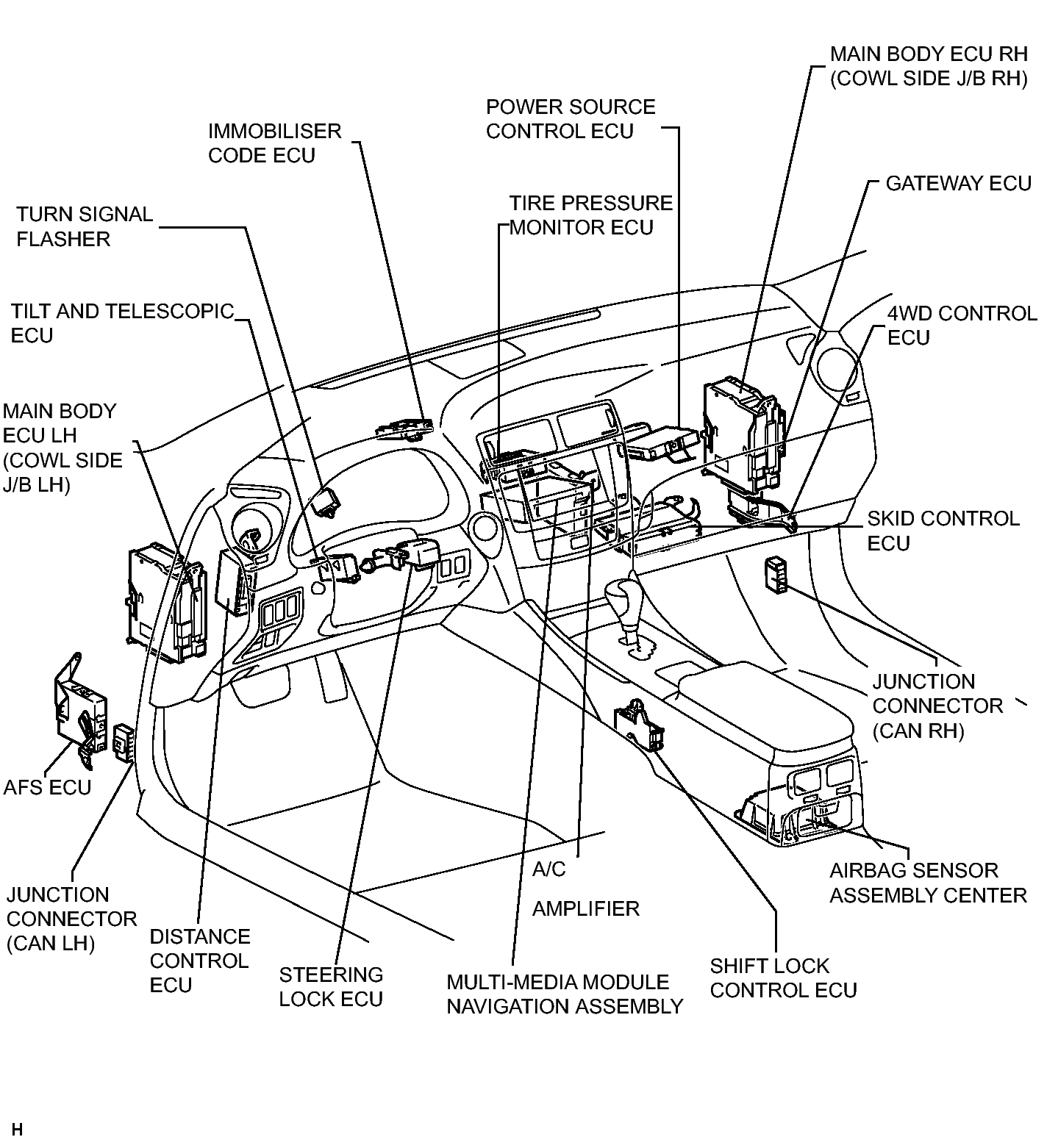

Fig 1: Identifying Multiplex Communication System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

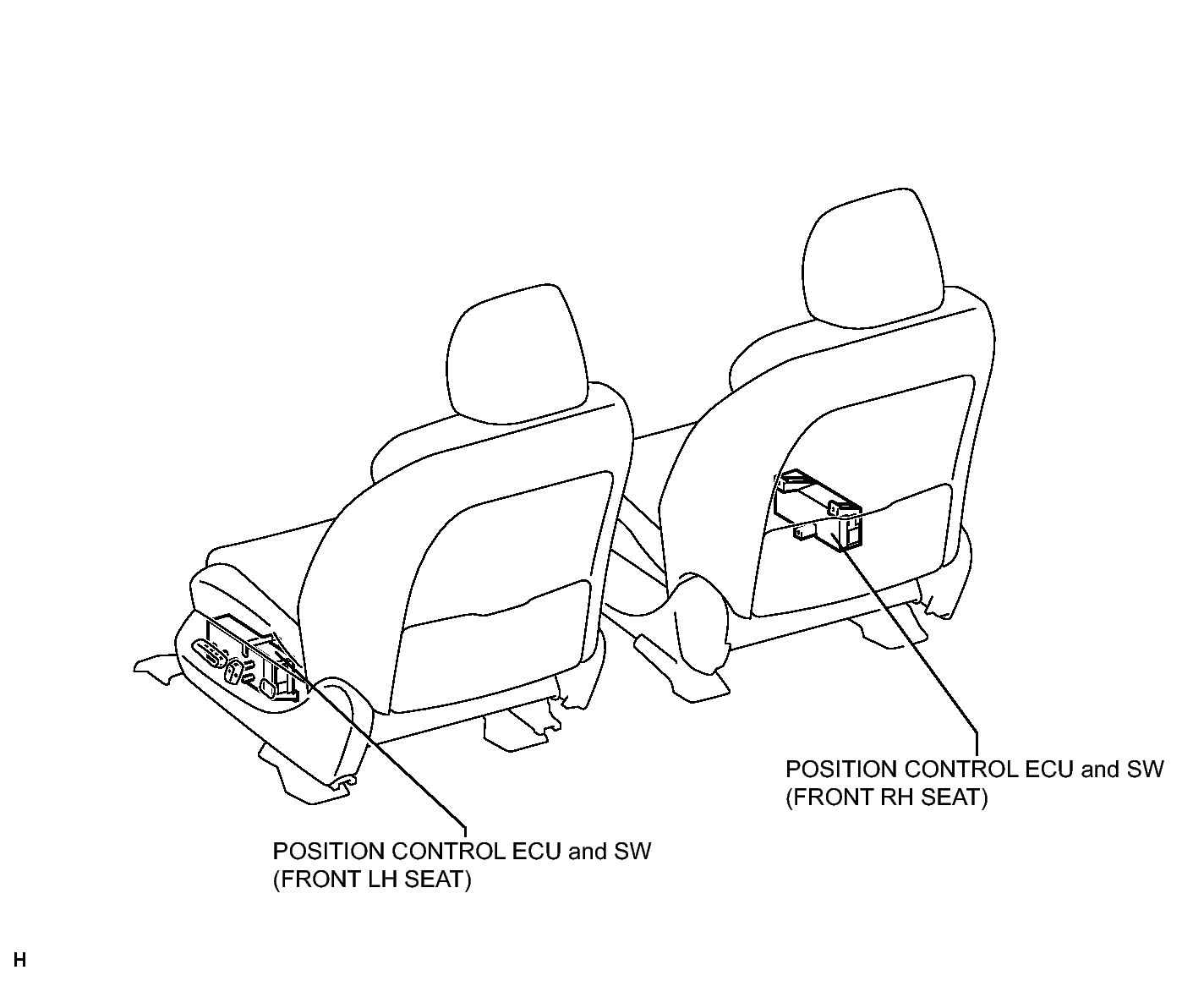

Fig 1: Identifying Multiplex Communication System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
