Stop Light Control Relay: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

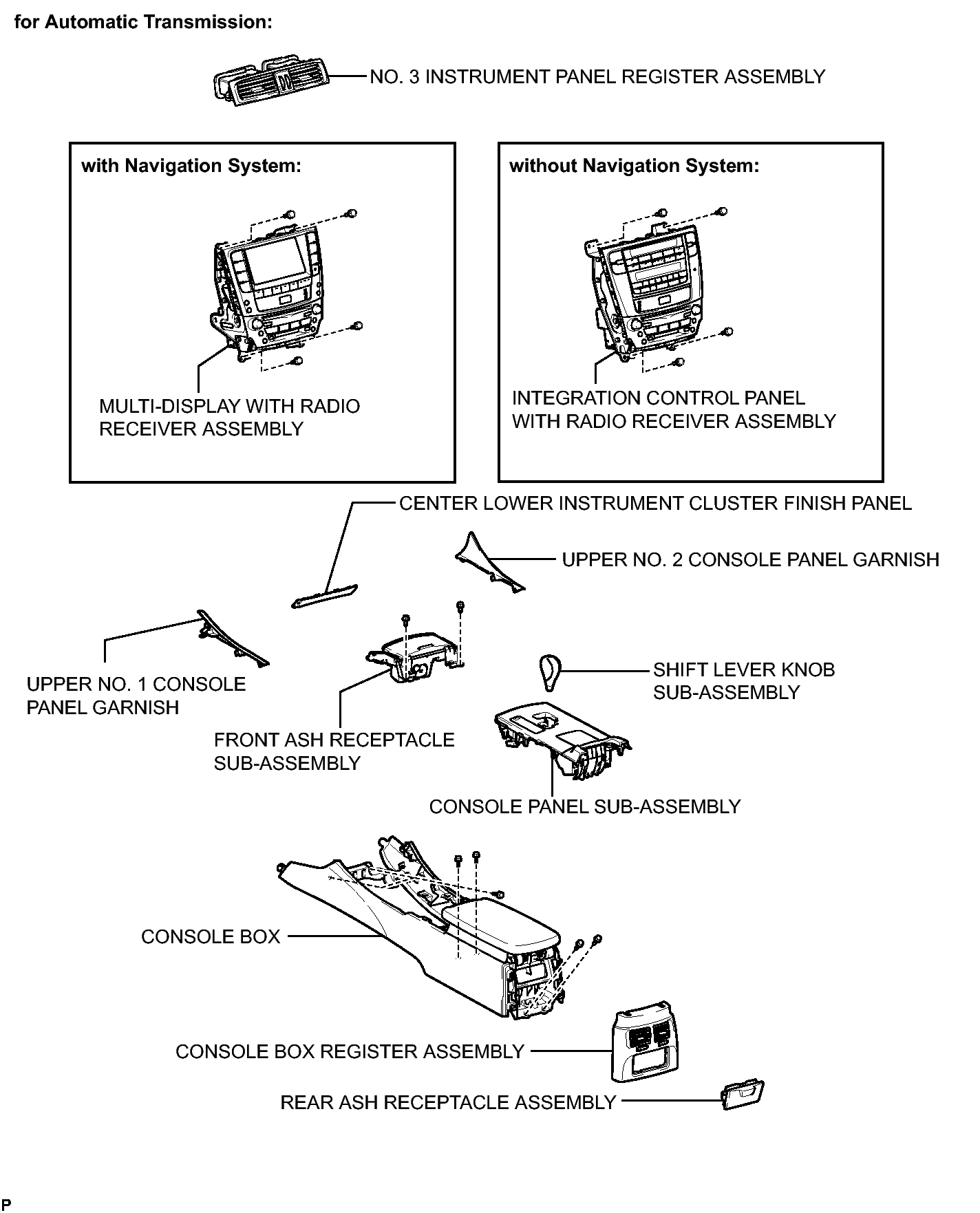

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

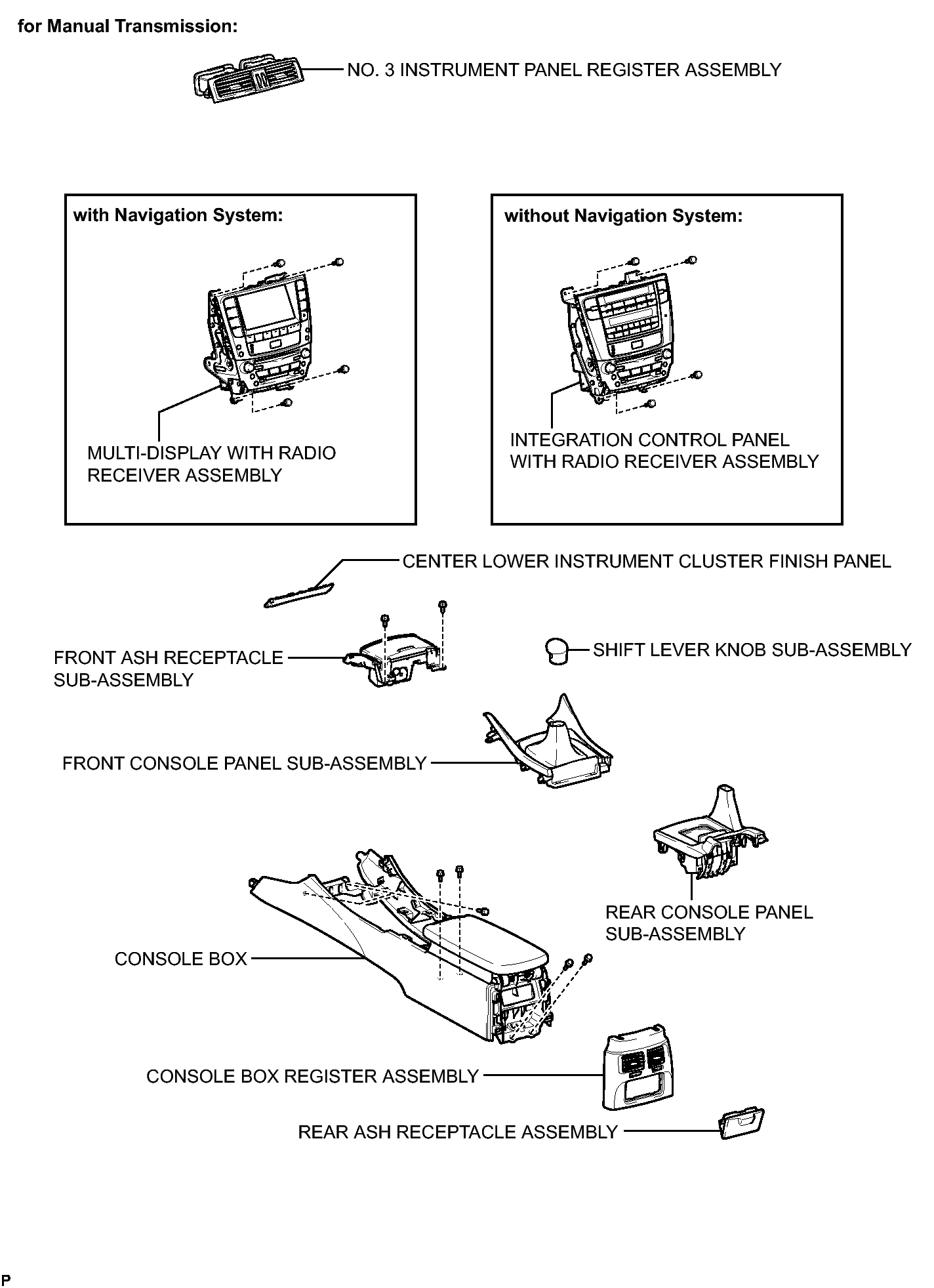

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

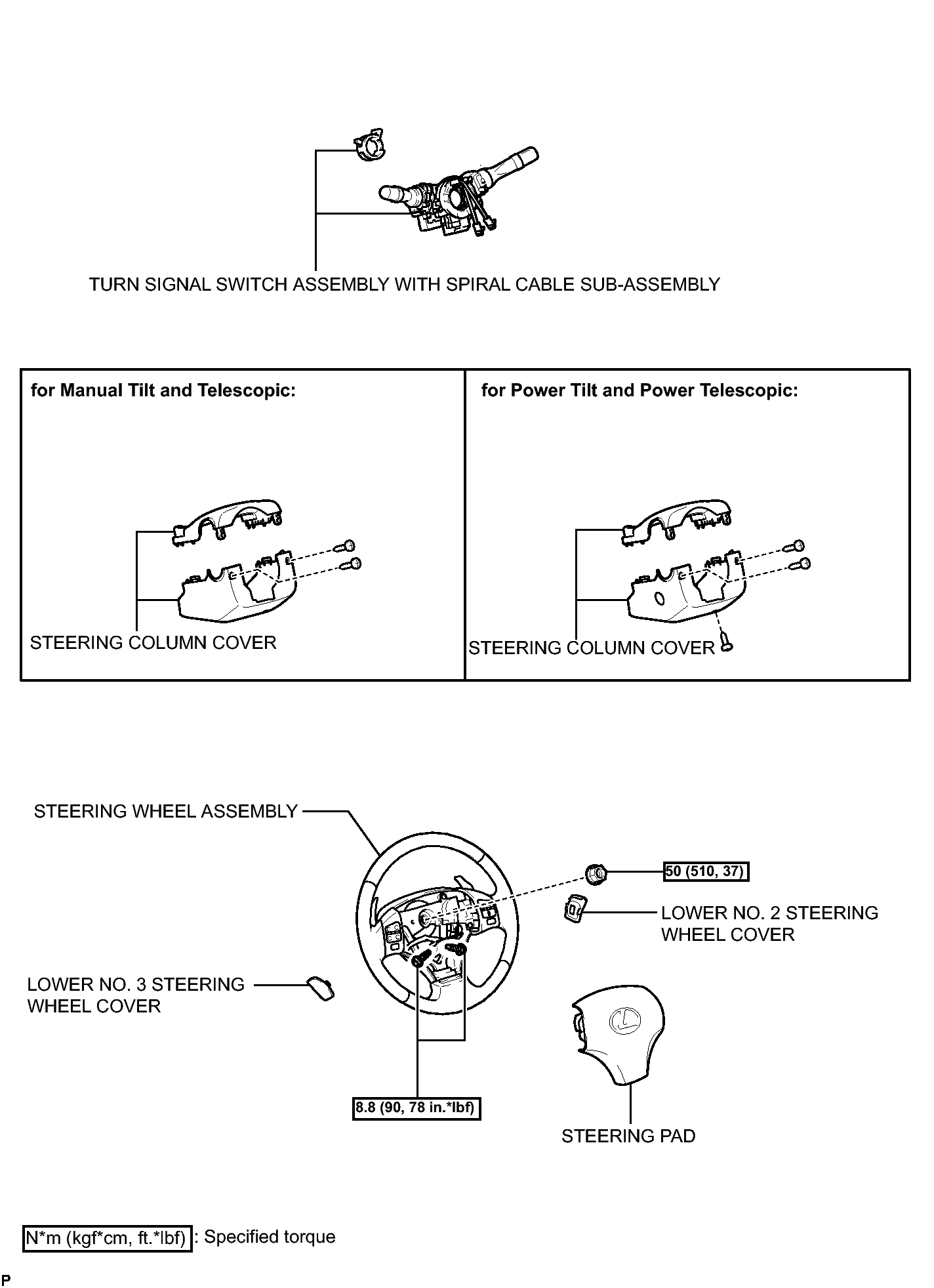

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

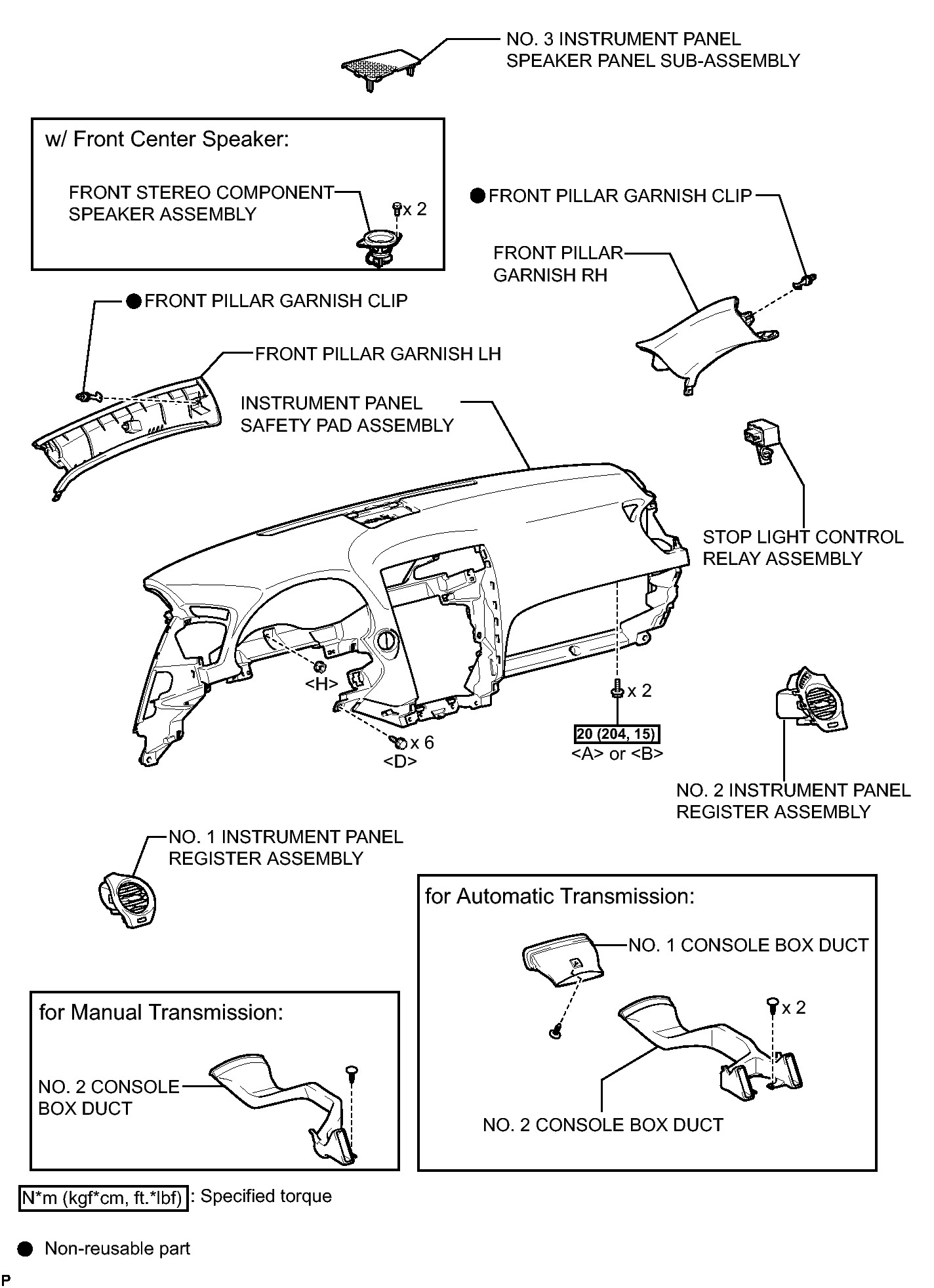

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (4 Of 6)

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Identifying Stop Light Control Relay Replacement Components With Torque Specifications (6 Of 6)
