Rear Axle Hub: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

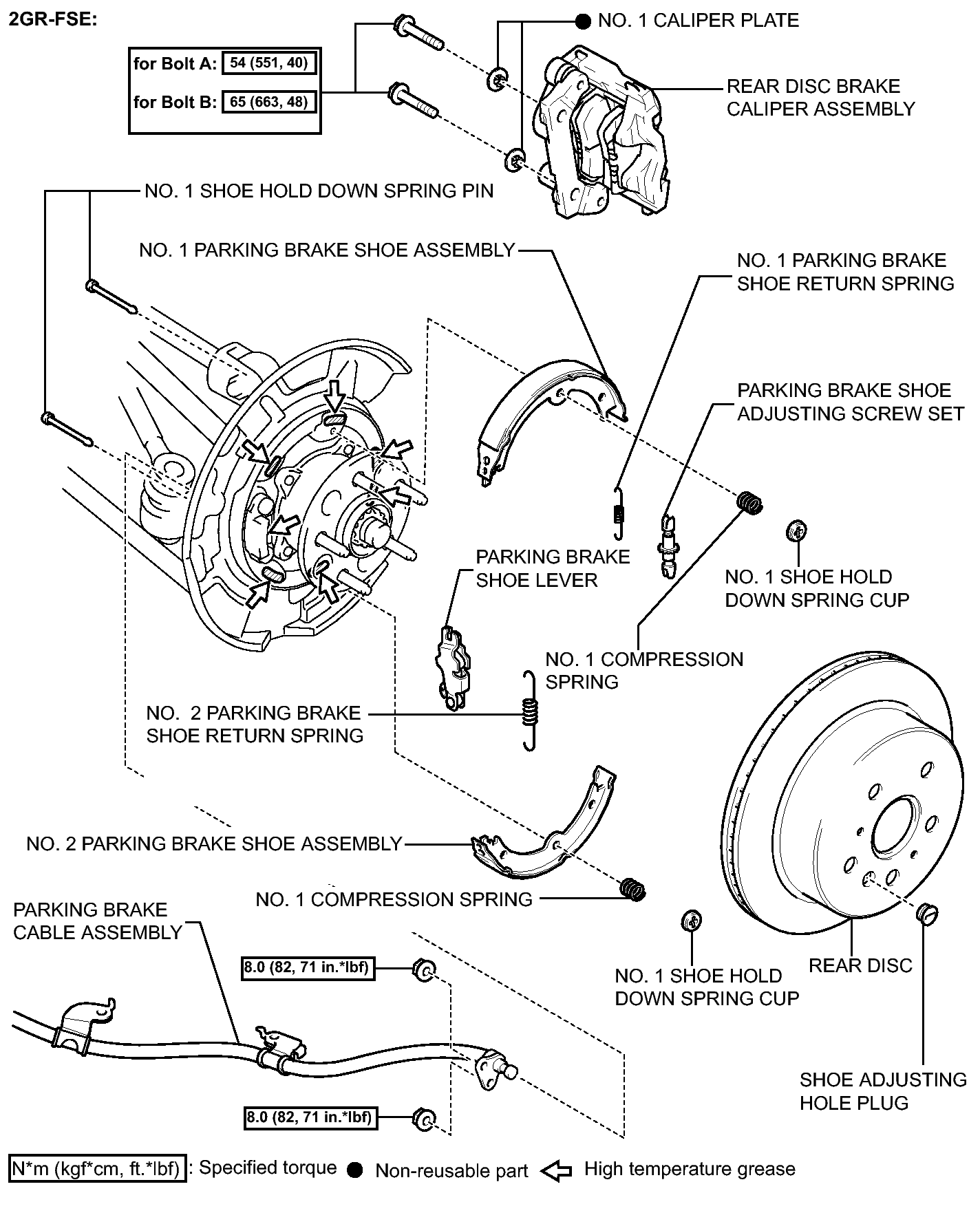

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specifications (1 Of 3)
GTY128663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

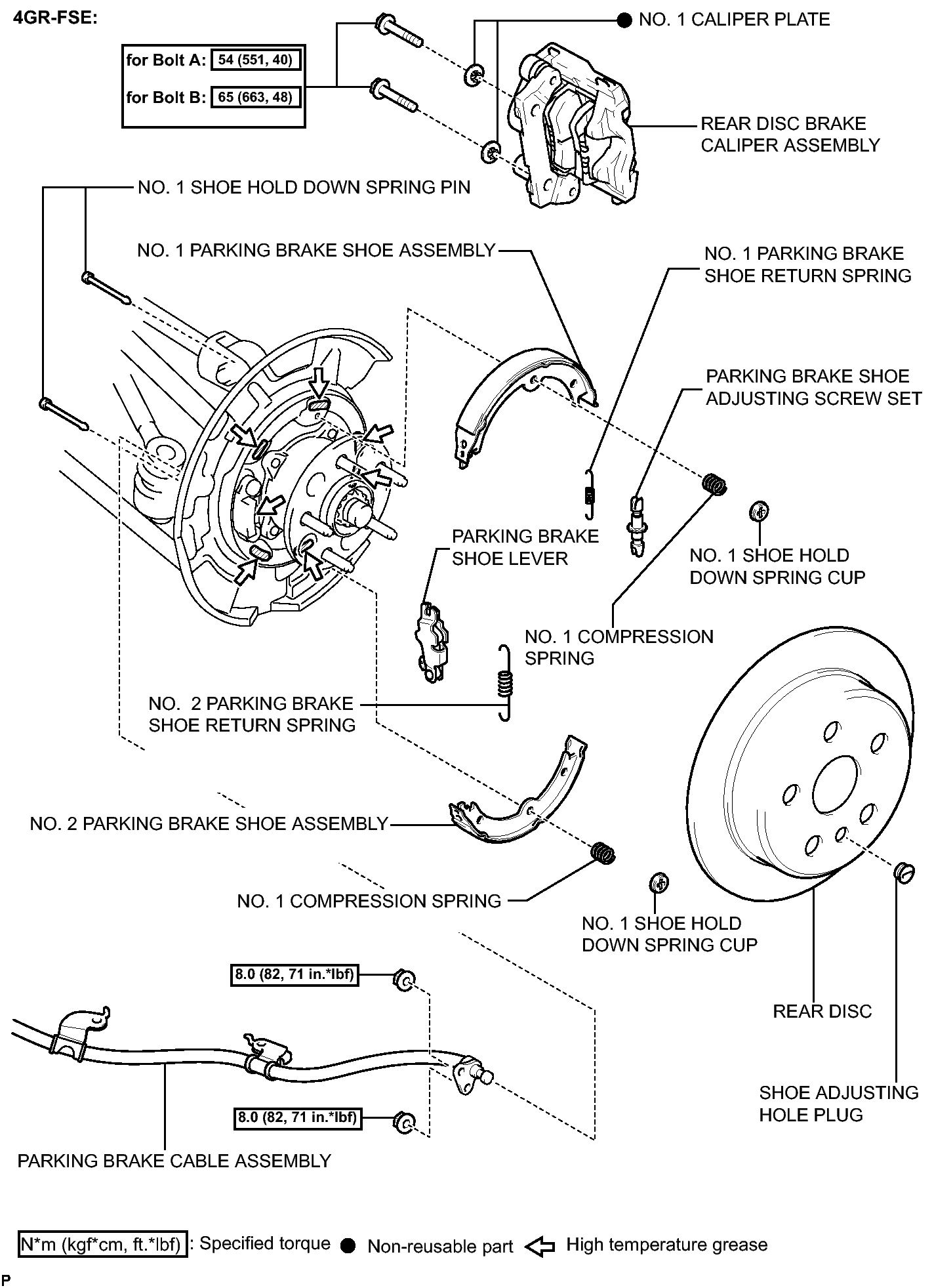

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specifications (2 Of 3)
GTY129016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

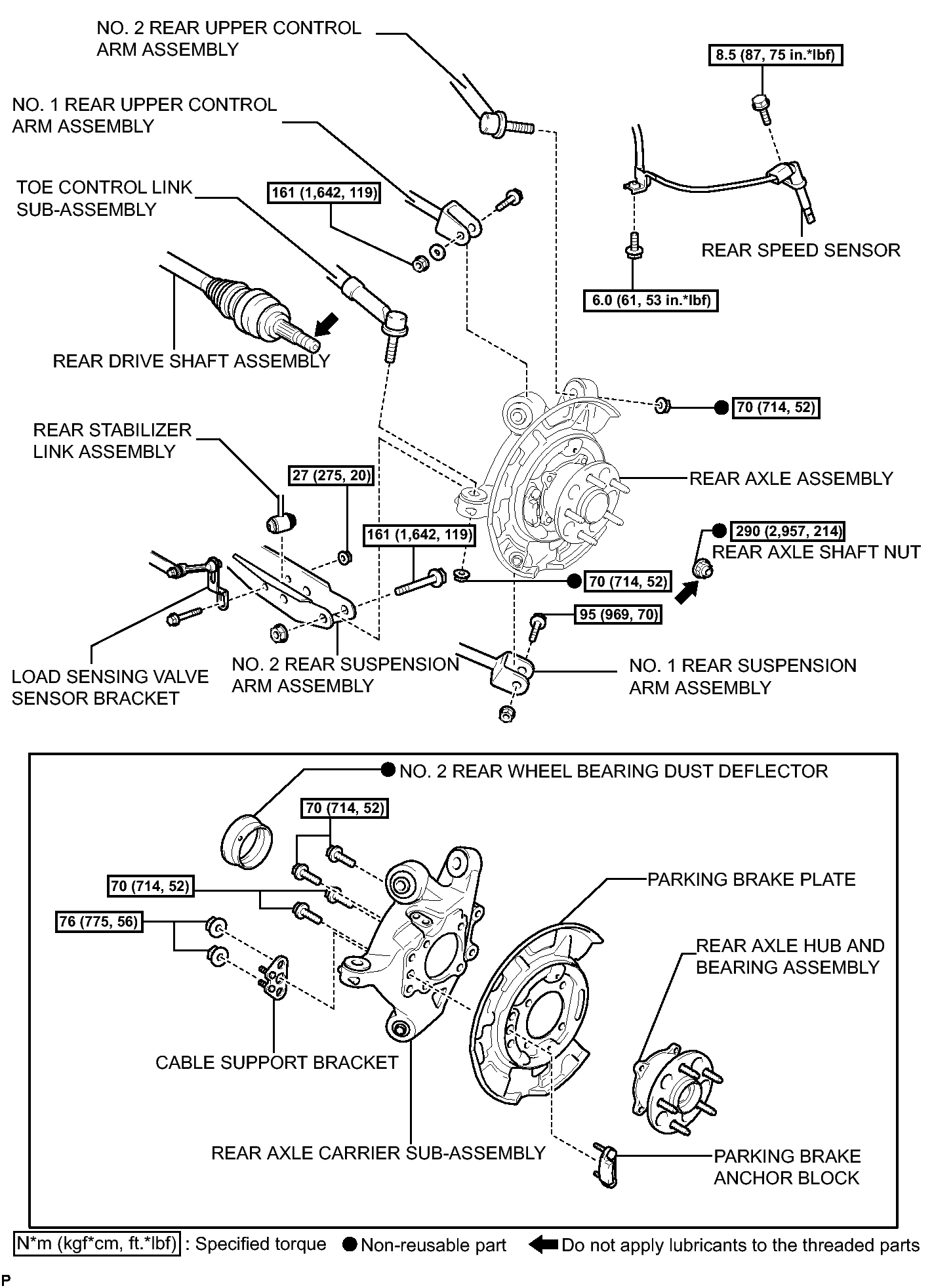

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specifications (3 Of 3)
GTY112736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
