Monitor Description

WARNING: This page is about a different car, the 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

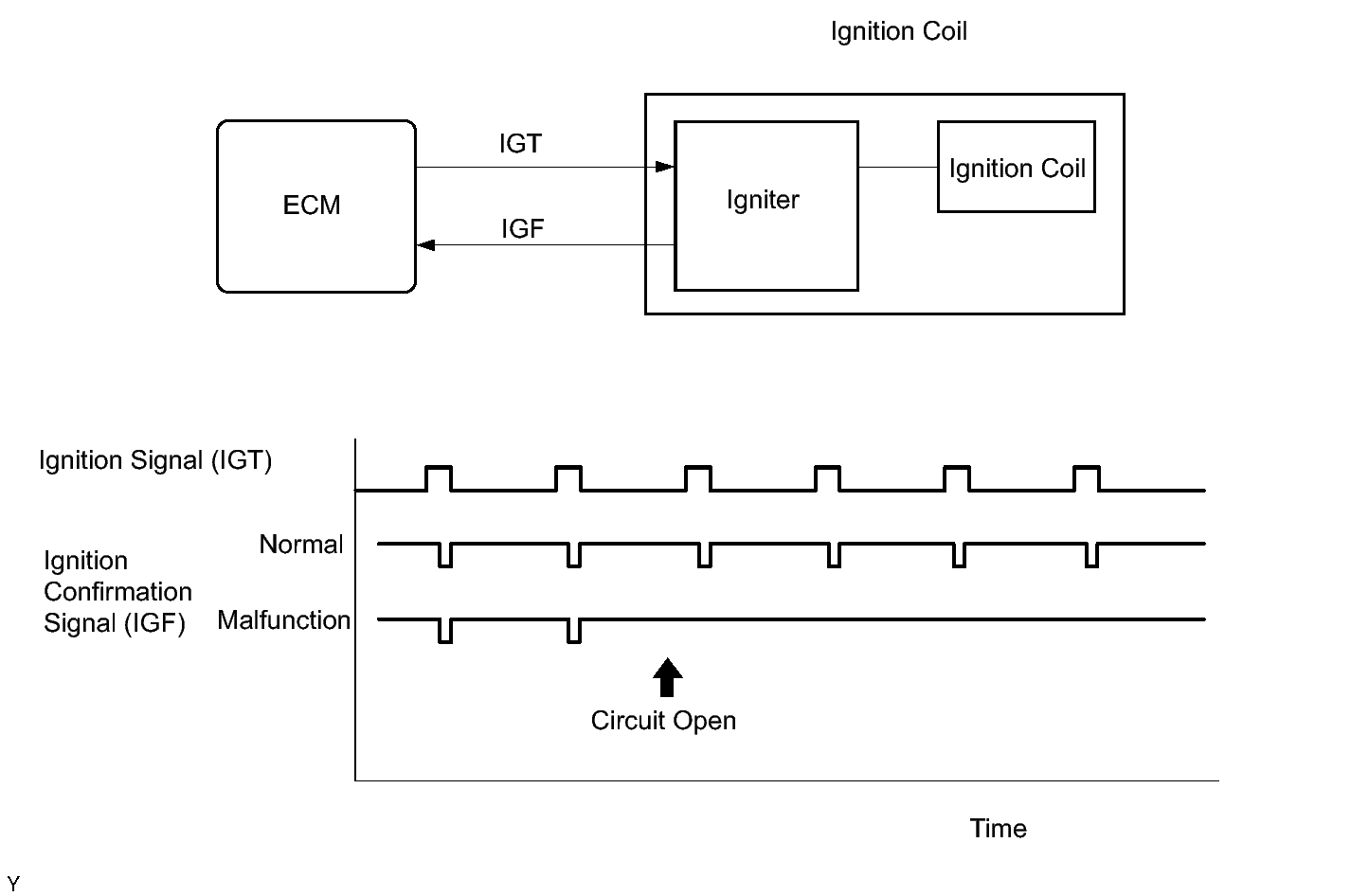

Fig 1: Ignition Signal (IGT) And Ignition Signal Confirmation (IGF) Graph
GTY104511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive any IGF signals despite transmitting the IGT signal, it interprets this as a fault in the igniter and sets a DTC.

If the malfunction is not repaired successfully, a DTC is set 1 second after the engine is next started.
