Section 168 (Engine Control System (DTCS P0420 - U0101 & Circuit Tests))
>>
SFI System
>>
ECM Power Source Circuit
>>
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram
WARNING:
This page is about a different car, the 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: ECM Power Source Circuit - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

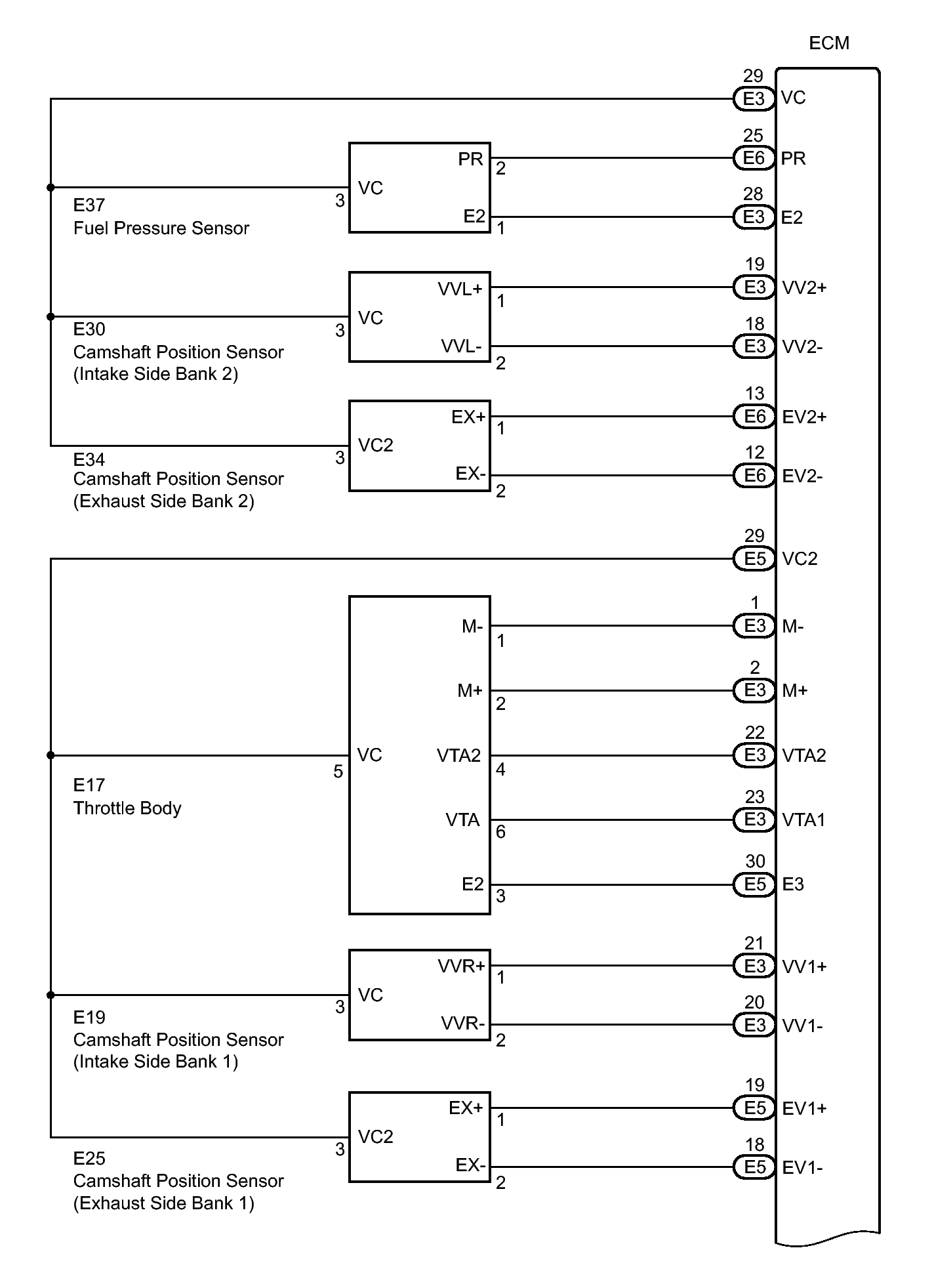

Fig 2: ECM Power Source Circuit - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

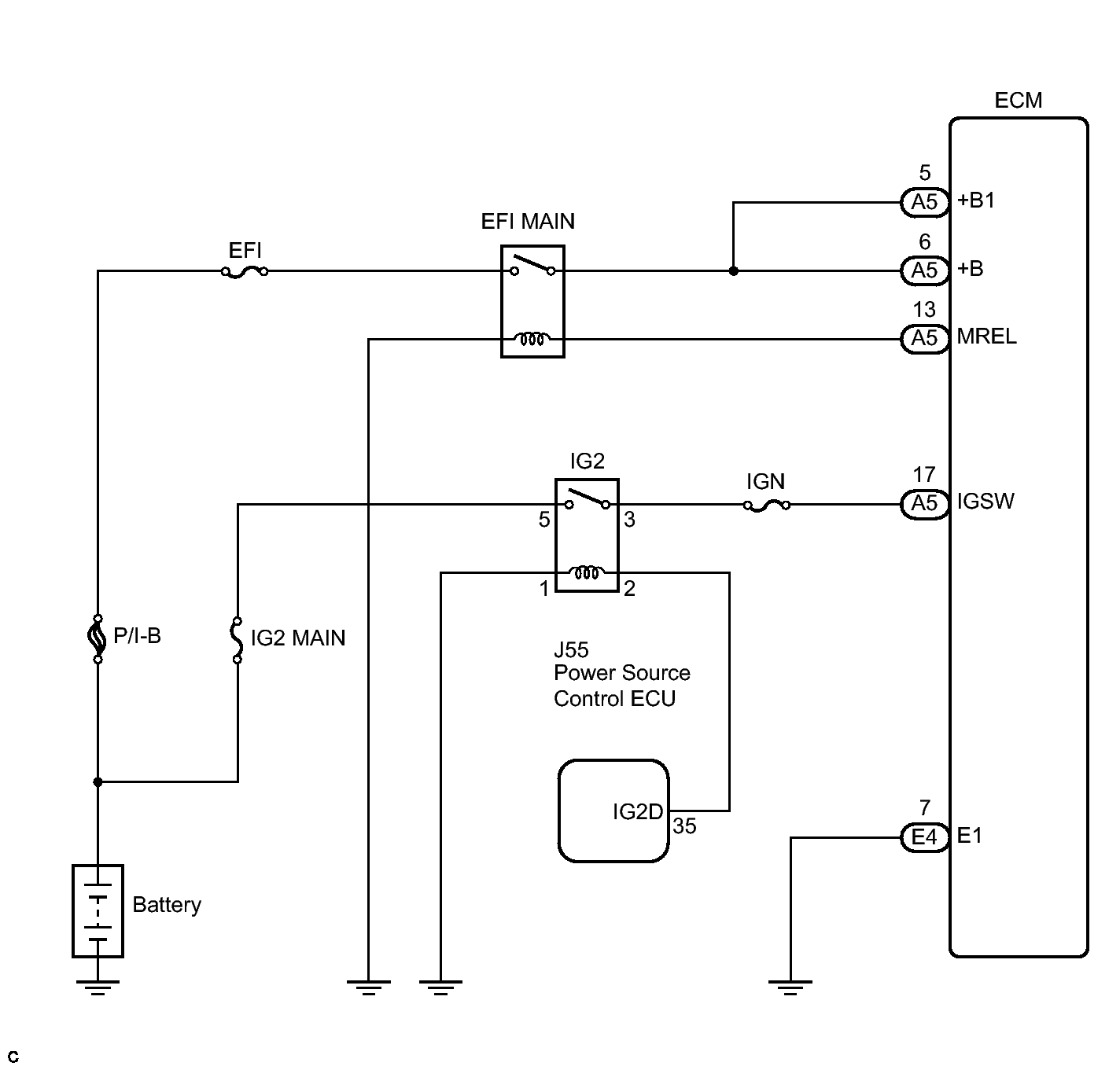

Fig 3: ECM Power Source Circuit - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
