Cold Start Injector Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

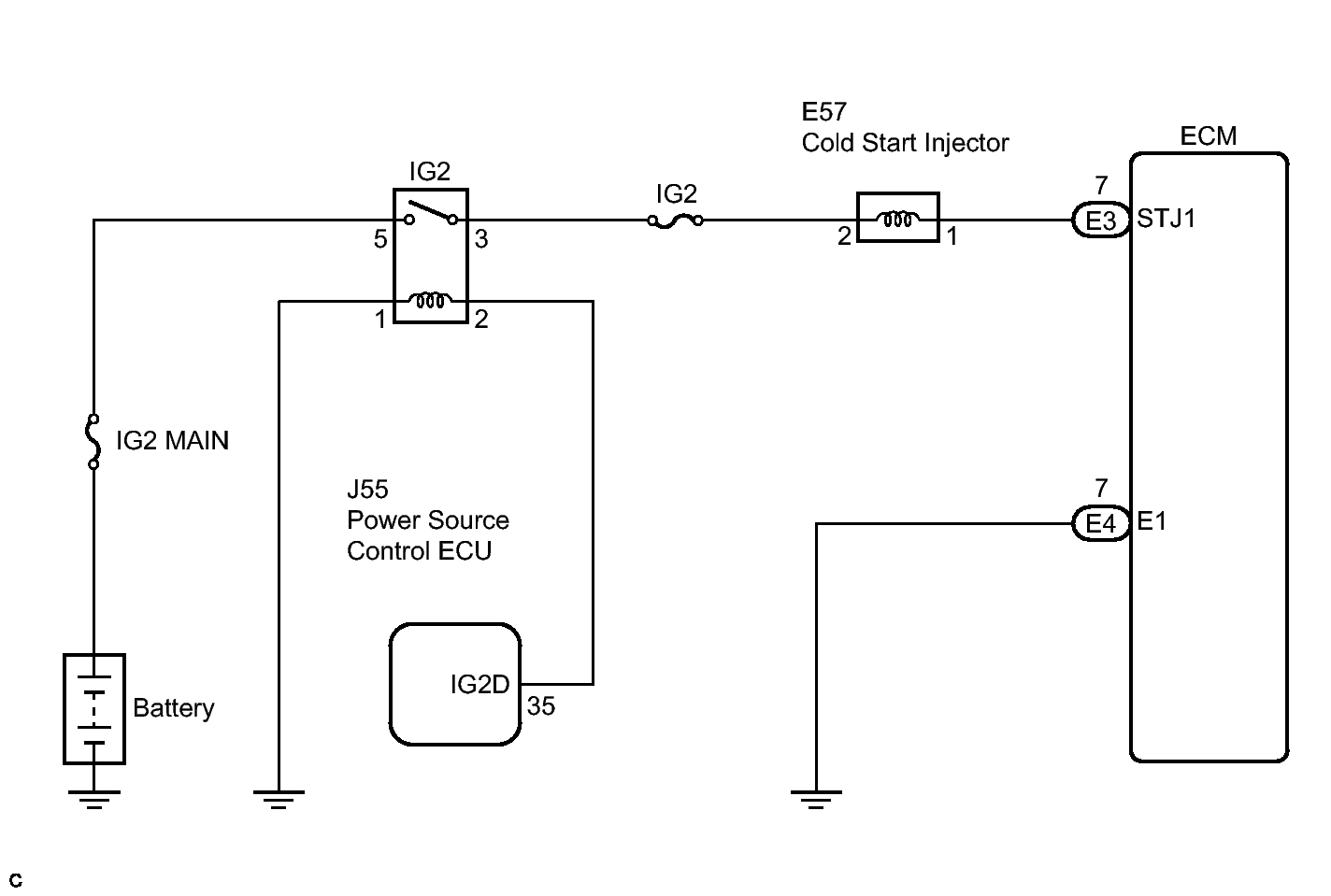

Fig 1: Cold Start Injector Circuit - Wiring Diagram
GTY140669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
