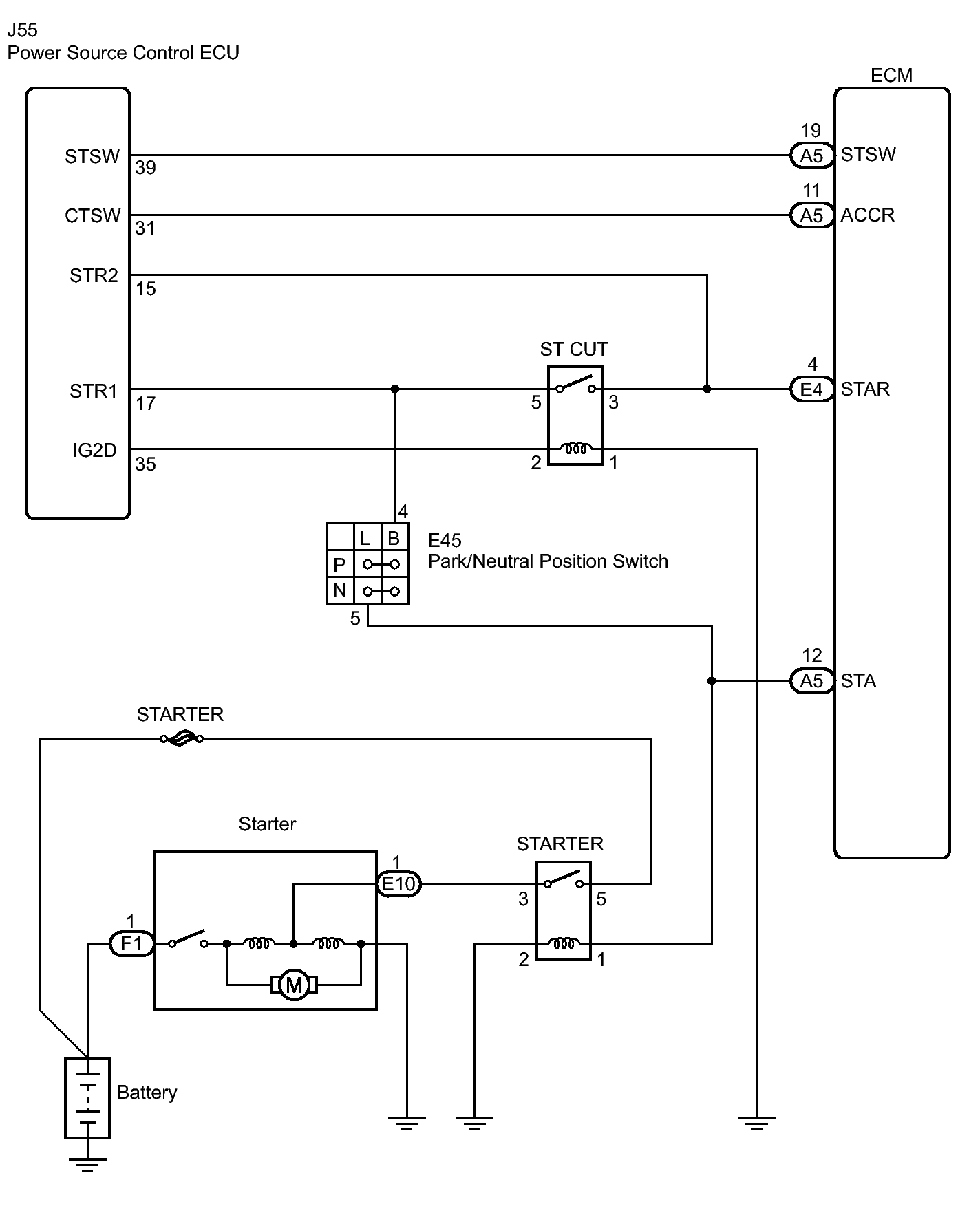

DTC P0617: Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
