Front Upper Suspension Arm: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

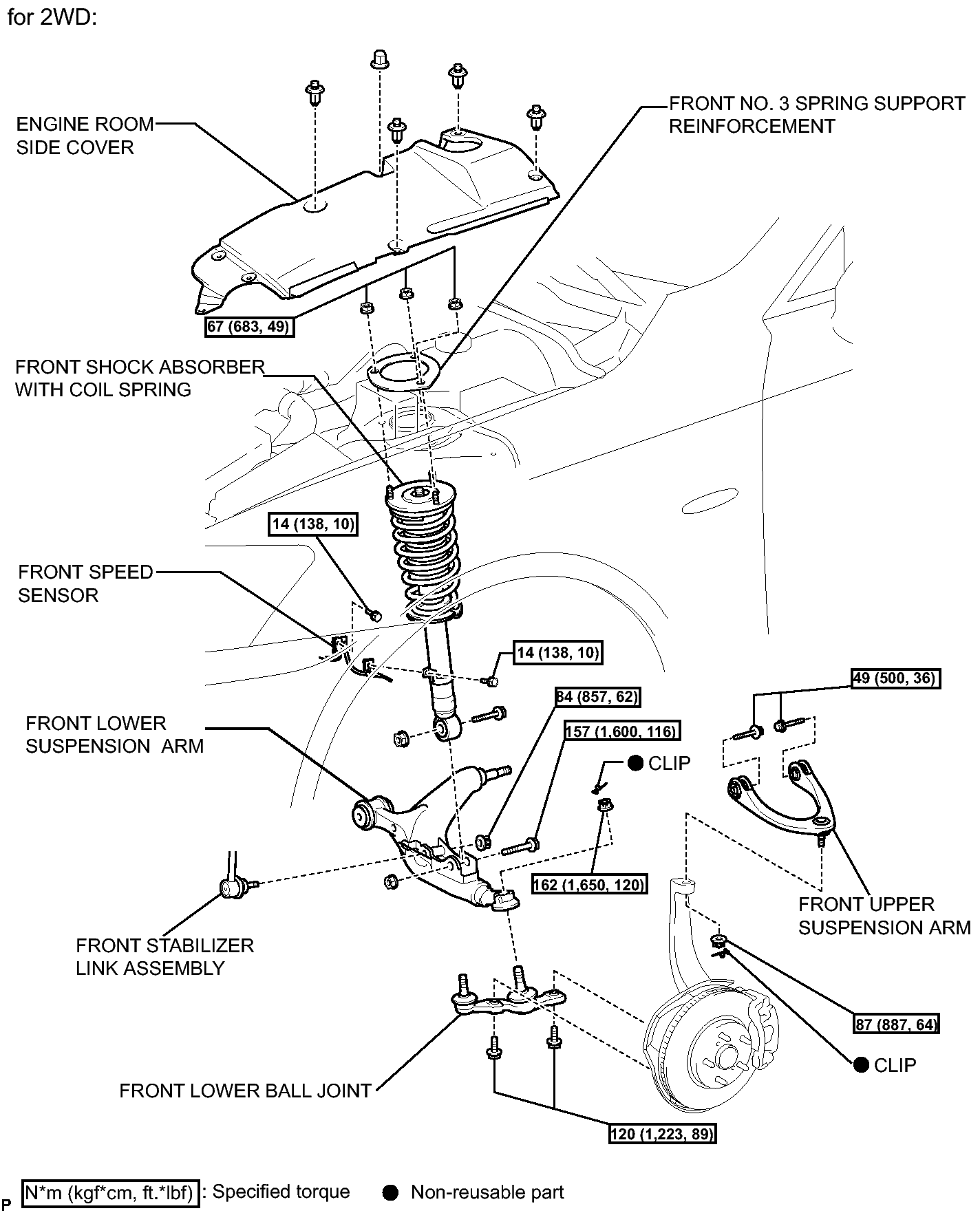

Fig 1: Identifying Front Upper Suspension Arm Replacement Components With Torque Specifications (1 Of 2)
GTY127176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

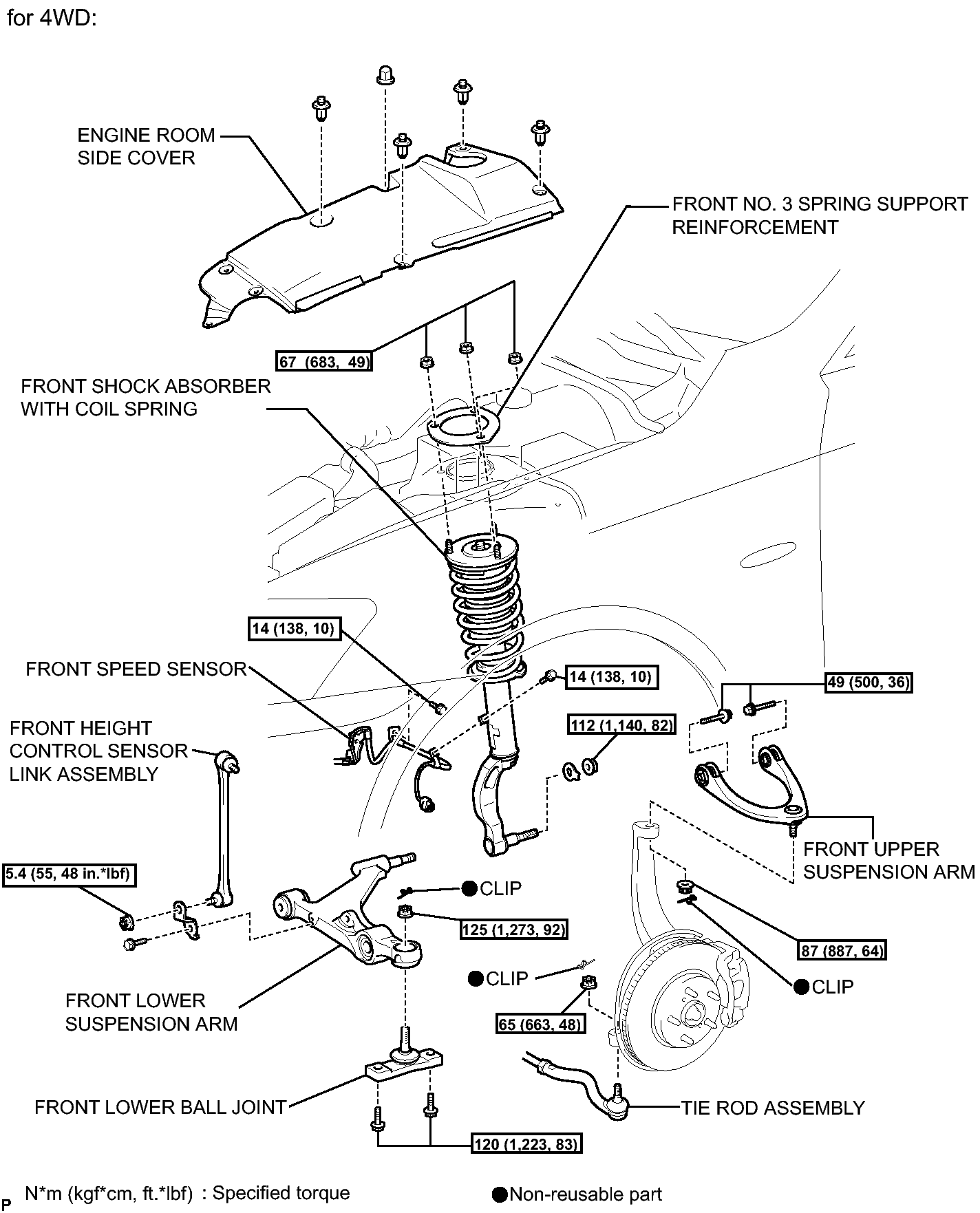

Fig 1: Identifying Front Upper Suspension Arm Replacement Components With Torque Specifications (2 Of 2)
GTY121439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
