FRONT SHOCK ABSORBER (for 2WD): Components: Illustration
WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

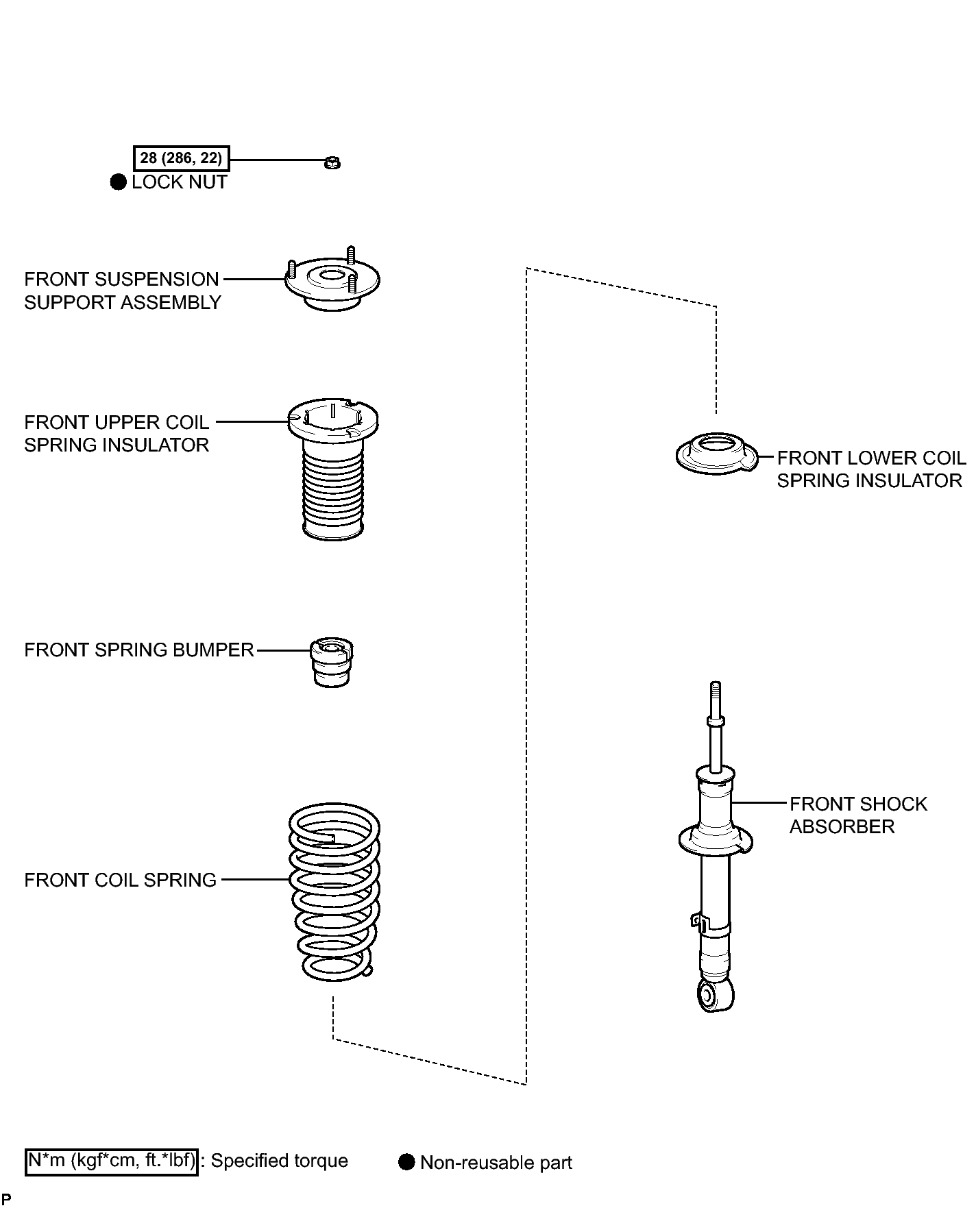

Fig 1: Identifying Front Shock Absorber (For 2WD) Replacement Components With Torque Specifications (1 Of 2)
