Section 147 (Emission Control (2GR-FSE) (Service Information)): Canister: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

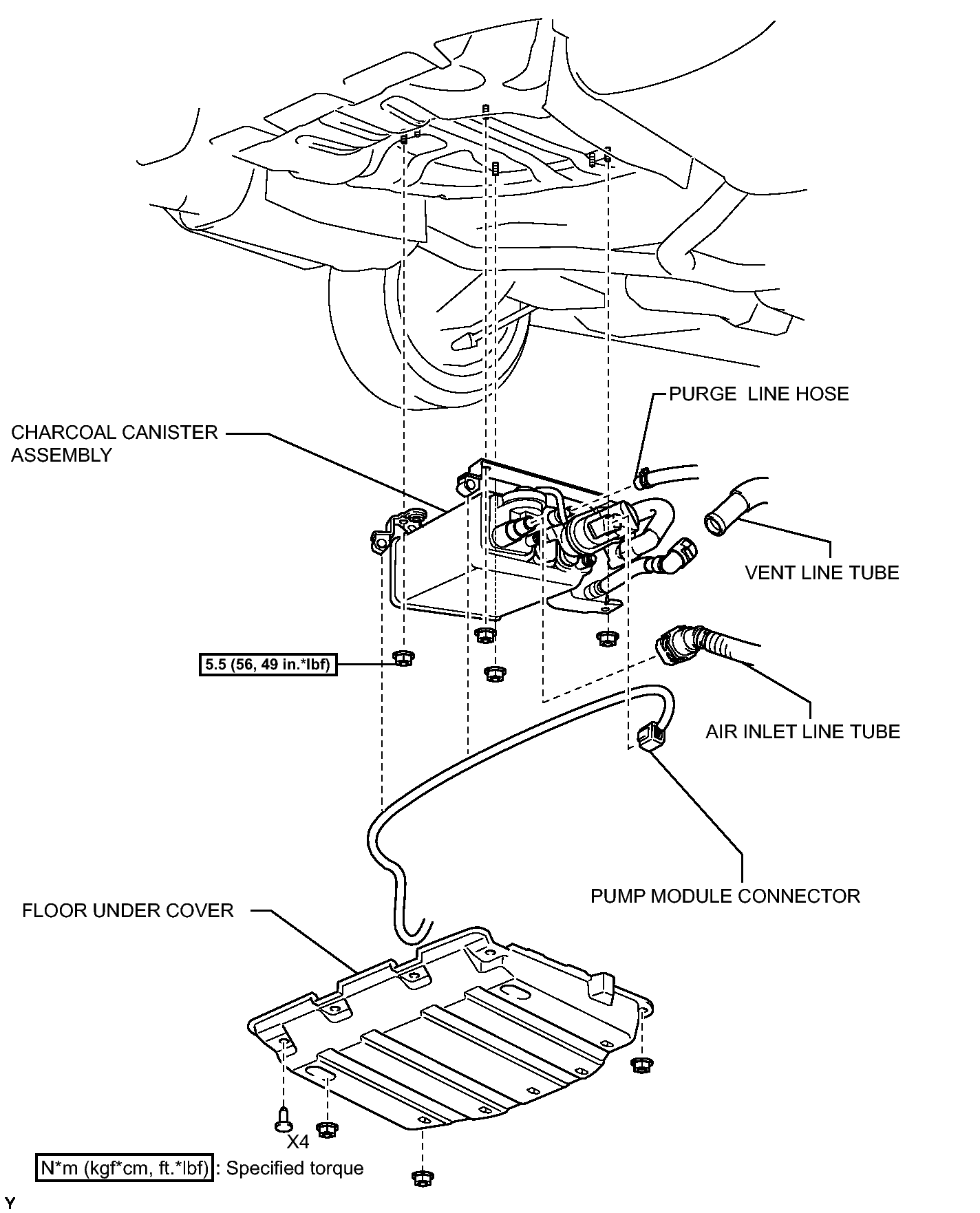

Fig 1: Identifying Canister Replacement Components With Torque Specifications
