AIR FUEL RATIO SENSOR (for Sensor 1): Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

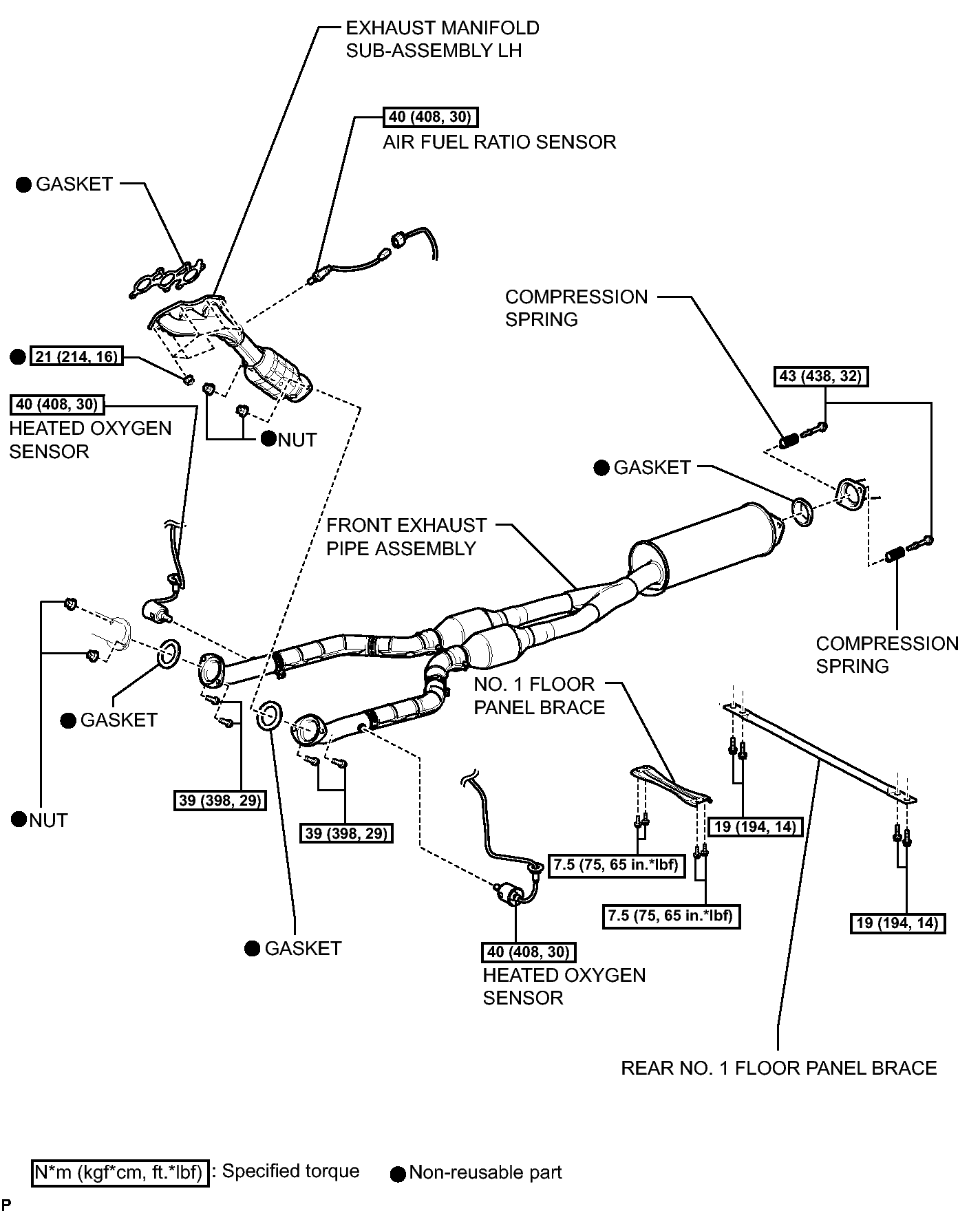

Fig 1: Identifying Air Fuel Ratio Sensor (for Sensor 1) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

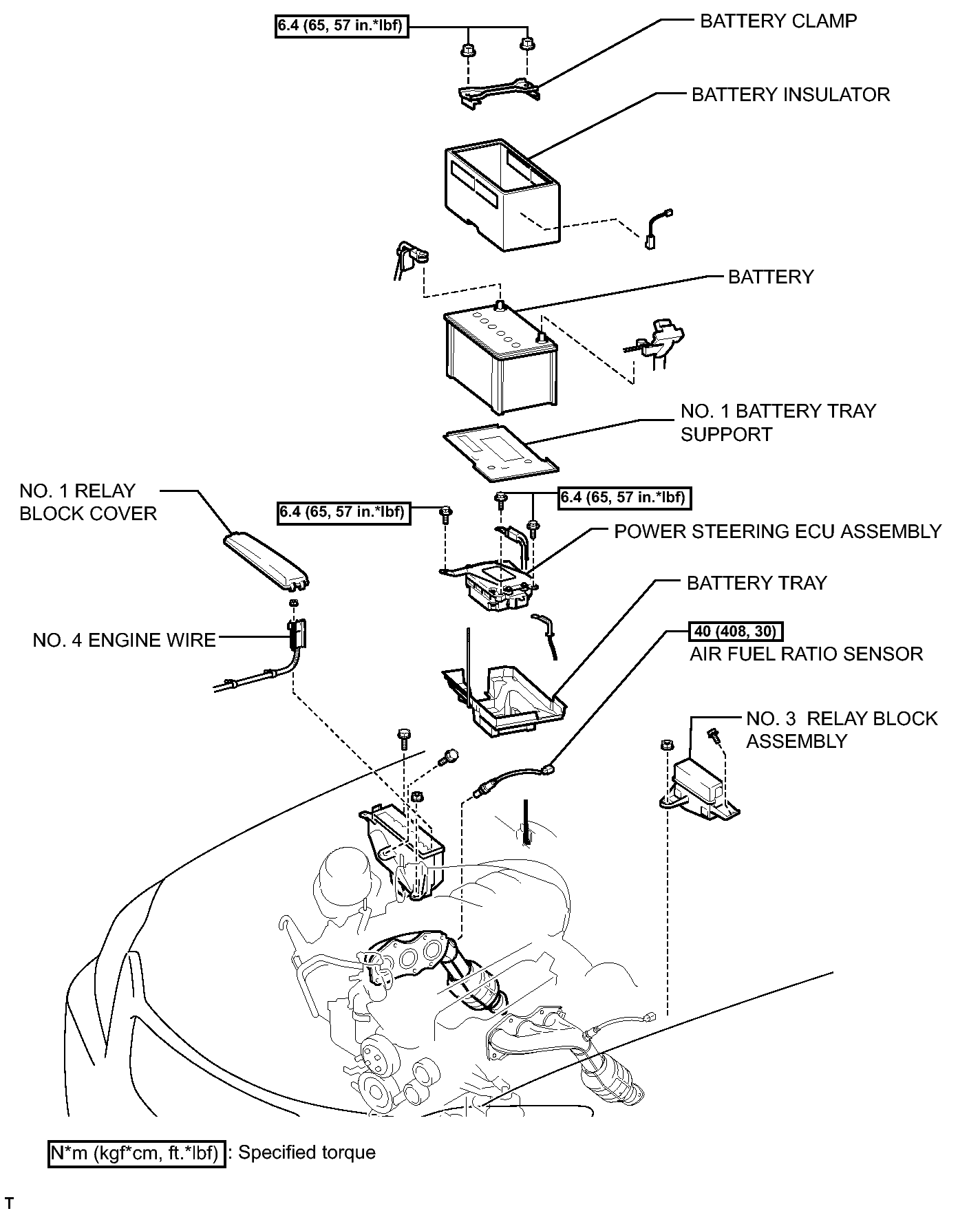

Fig 1: Identifying Air Fuel Ratio Sensor (for Sensor 1) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

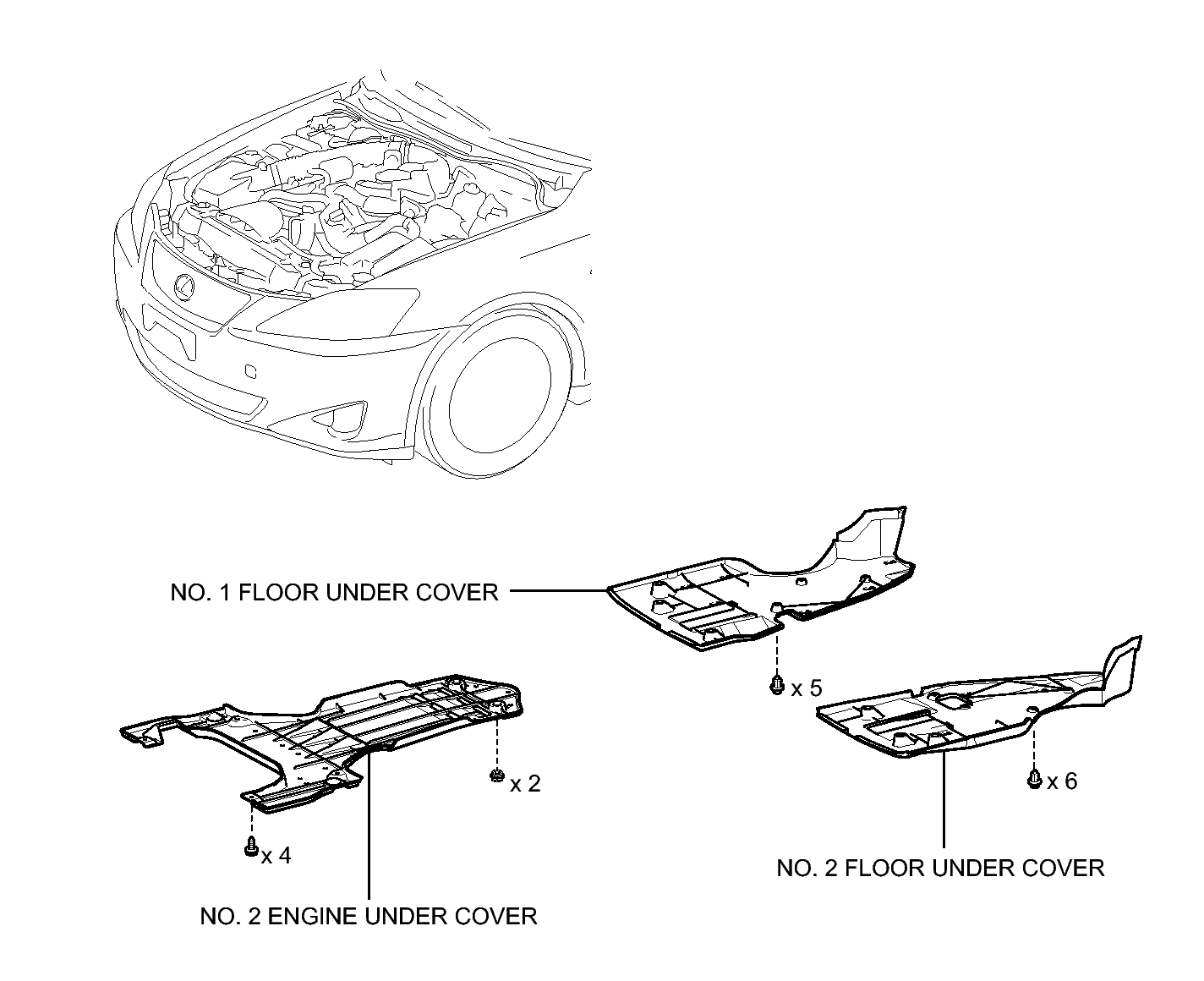

Fig 1: Identifying Air Fuel Ratio Sensor (for Sensor 1) Replacement Components (2 Of 2)

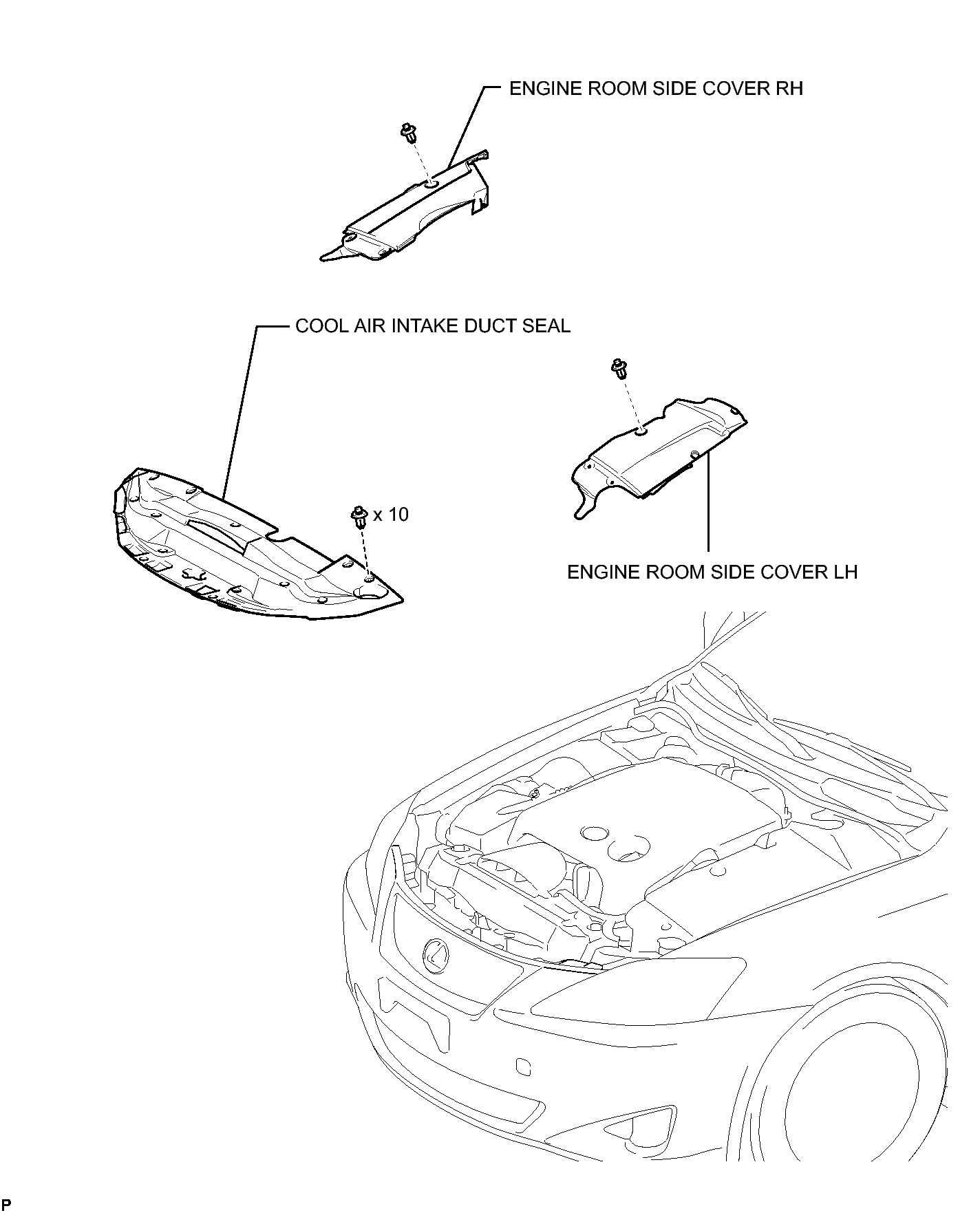

Fig 1: Identifying Air Fuel Ratio Sensor (for Sensor 1) Replacement Components With Torque Specifications (2 Of 2)
