Section 144 (Charging (Inspection))
>>
Charging System
>>
System Diagram
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

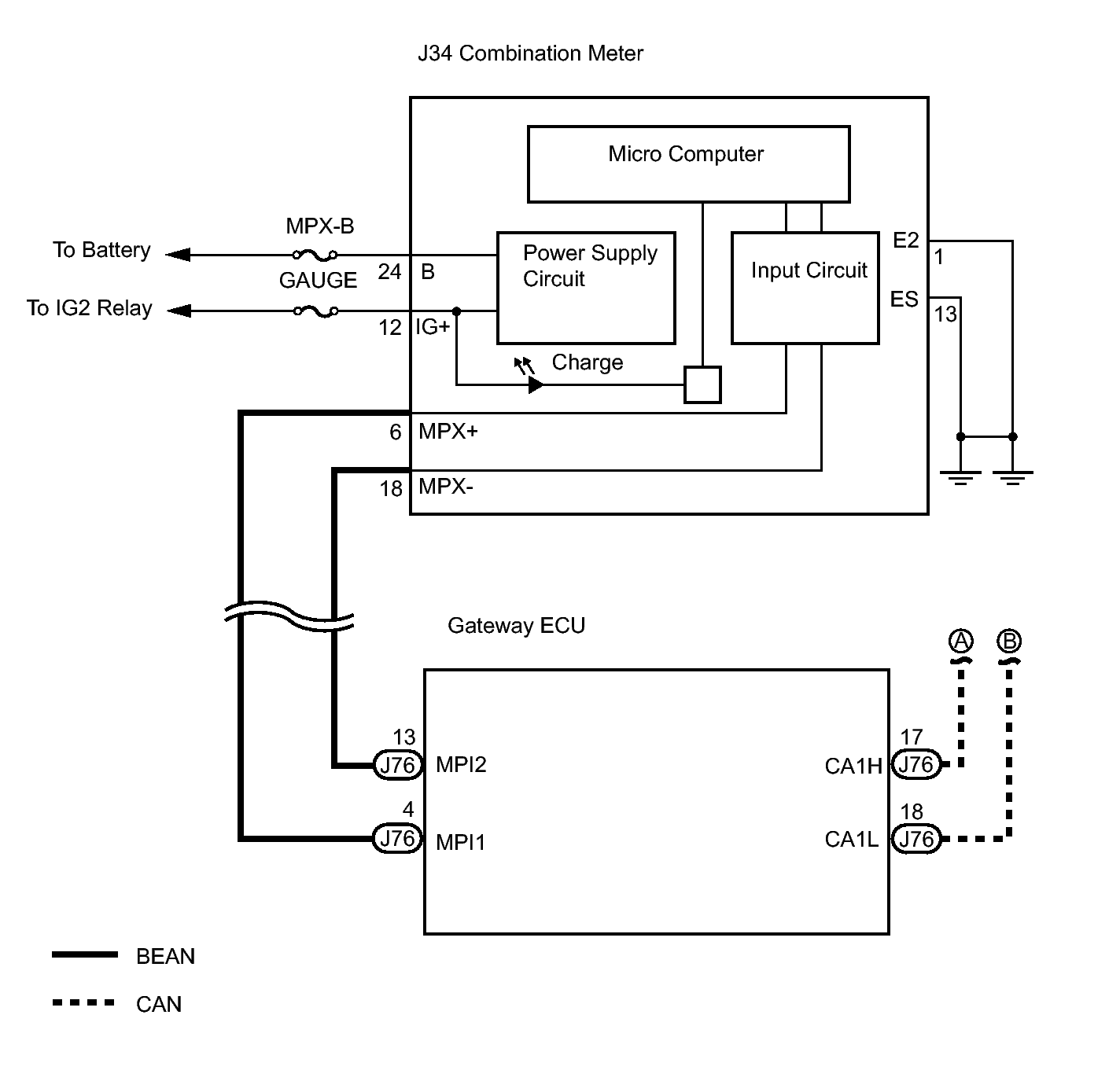

Fig 1: Charging System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

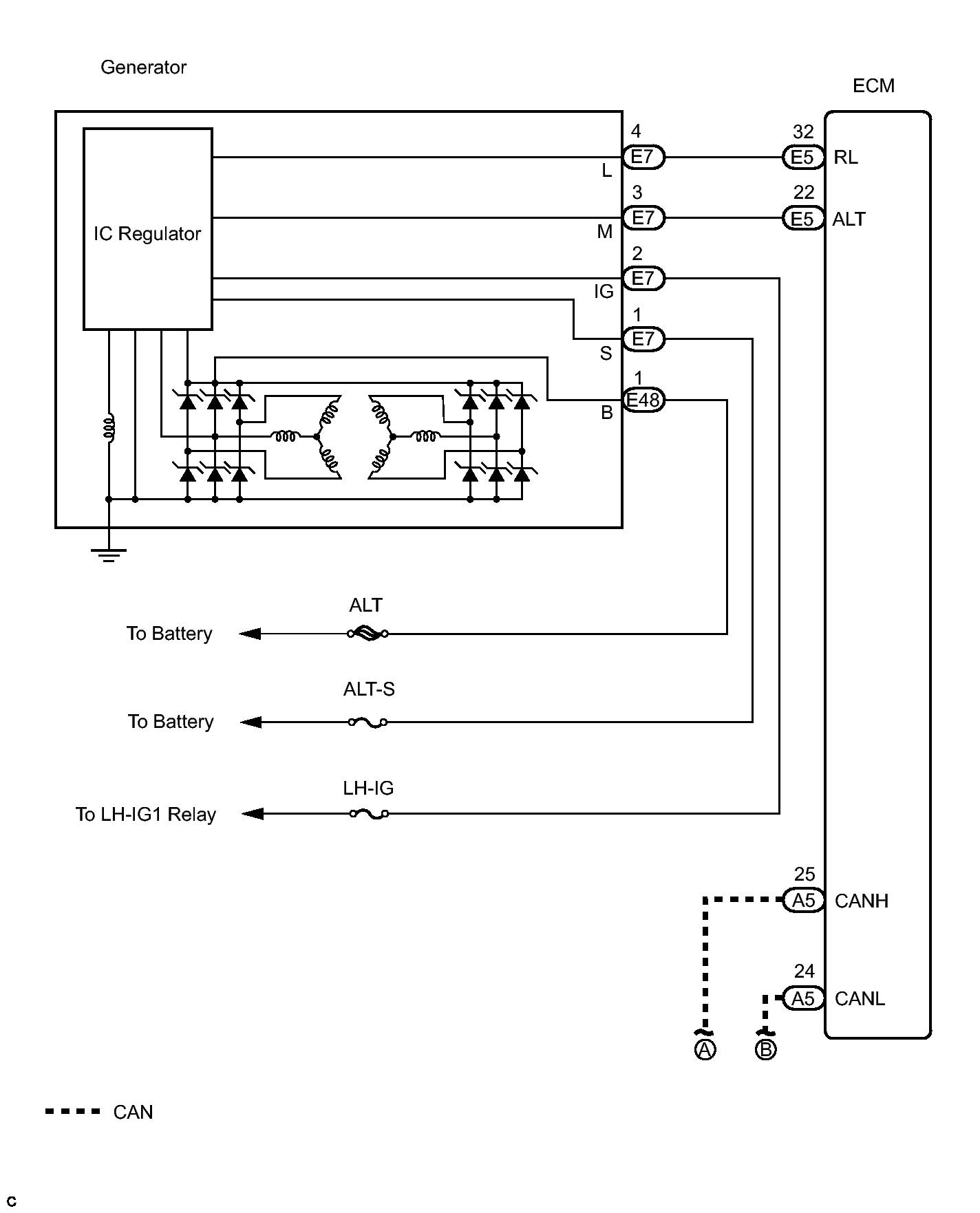

Fig 2: Charging System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
