Section 140 (Cooling (Service Information) (2GR-FSE)): Thermostat: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

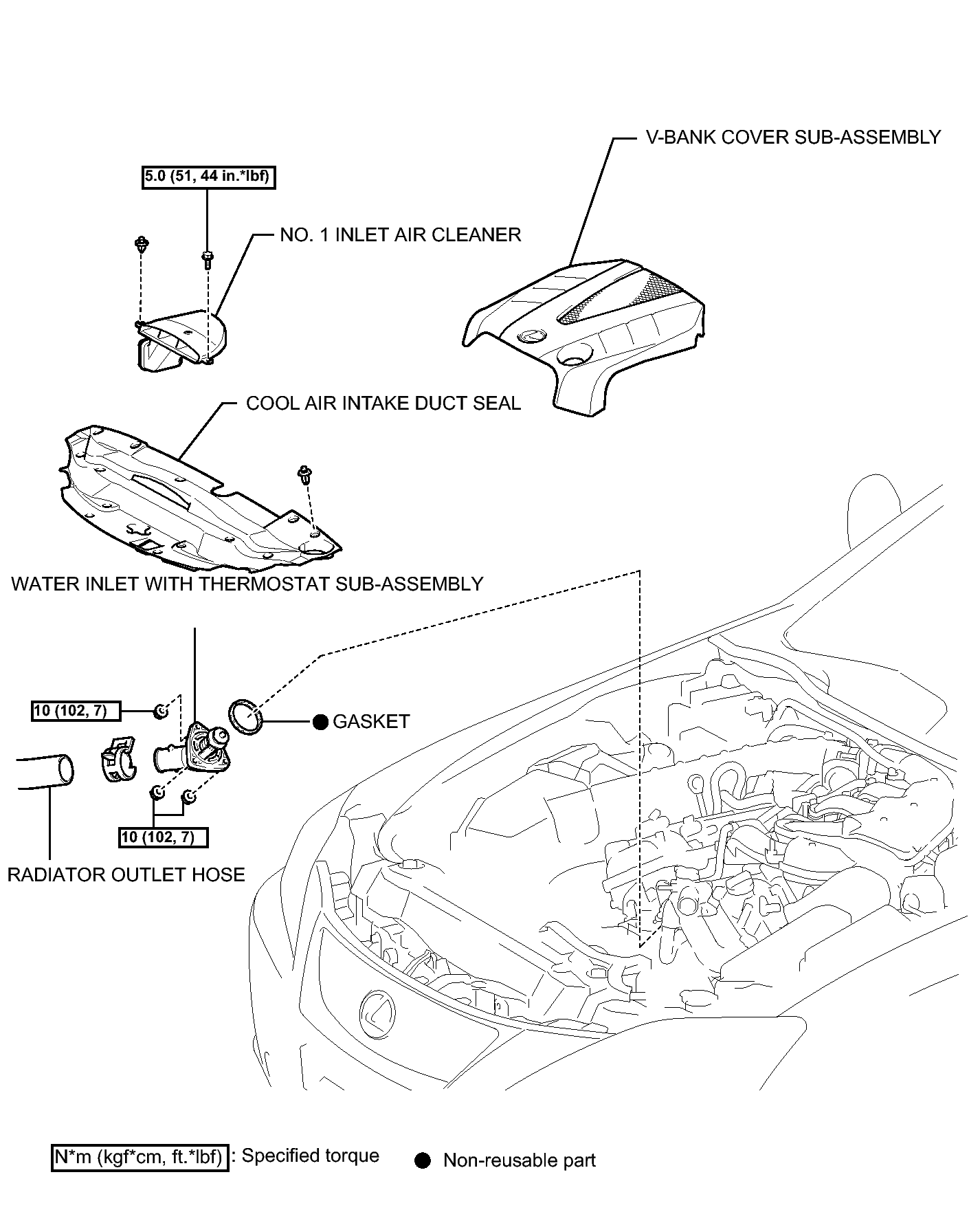

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications
GTY141760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
