Section 140 (Cooling (Service Information) (2GR-FSE)): Radiator: Removal: Removal

WARNING: This page is about a different car, the 2009 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 2
REMOVE ENGINE ROOM SIDE COVER RH . Refer to REMOVAL - Step 3
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE NO. 1 INLET AIR CLEANER . Refer to REMOVAL - Step 18
DISCONNECT NO. 2 VENTILATION HOSE . Refer to REMOVAL - Step 6
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE . Refer to REMOVAL - Step 6
REMOVE ENGINE UNDER COVER
DRAIN ENGINE COOLANT See step 4
REMOVE FRONT BUMPER ASSEMBLY . Refer to REMOVAL - Step 3
REMOVE FRONT BUMPER ENERGY ABSORBER
REMOVE RADIATOR SUPPORT OPENING COVER
1. Disengage the 2 clips and remove the radiator support opening cover.

  Fig 1: Identifying Radiator Support Opening Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) . Refer to REMOVAL - Step 4
REMOVE HOOD LOCK CONTROL CABLE COVER
1. Remove the 3 screws, clamp and the hood lock control cable cover.

  Fig 2: Identifying Screws And Hood Lock Control Cable Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT HOOD LOCK ASSEMBLY
1. Disconnect the connector.

  Fig 3: Identifying Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the hood lock nut cap and the hood lock nut.

  Fig 4: Installing Bolts And Hood Lock Assembly To Upper Radiator Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, and separate the hood lock assembly from the radiator support upper.
  NOTE:
  Do not forcibly bend the hood lock control cable.
REMOVE UPPER RADIATOR SUPPORT
1. Separate the 4 wire harness clamps and the 3 connectors.

  Fig 5: Identifying Wire Harness Clamps And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the clamp and the cooling fan motor connector.

  Fig 6: Identifying Clamp And Cooling Fan Motor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate the clamp and the No. 2 cooling fan motor connector.

  Fig 7: Identifying Clamp And Cooling Fan Motor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

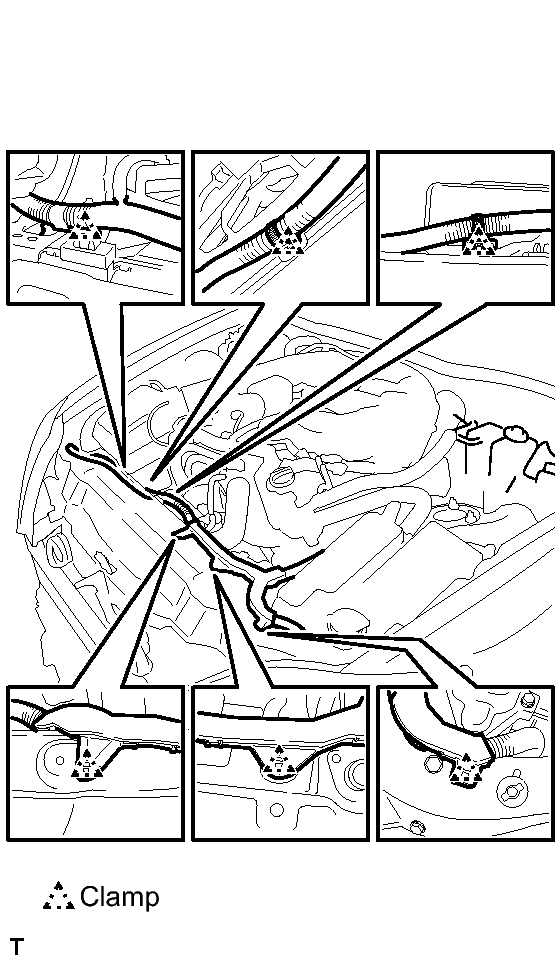

4. Separate the 6 clamps and the No. 2 engine room wire.

  Fig 8: Identifying Wire Harness Clamps & No. 2 Engine Room Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 5 bolts and the upper radiator support.

  Fig 9: Identifying Bolts And Upper Radiator Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR INLET HOSE
1. Remove the 2 clips and the radiator inlet hose from the radiator assembly.

  Fig 10: Identifying Clips And Radiator Inlet Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR OUTLET HOSE
1. Remove the 2 clamps and the radiator outlet hose from the radiator assembly.

  Fig 11: Identifying Clamps And Radiator Outlet Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE COOLER CONDENSER ASSEMBLY
1. Remove the 4 bolts, separate the cooler condenser assembly from the radiator assembly.

  Fig 12: Identifying Bolts And Cooler Condenser Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE ROOM ECU OUTLET DUCT
1. Remove the engine room ECU outlet duct from the engine room ECU box.

  Fig 13: Identifying Engine Room ECU Outlet Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RESERVE TANK CAP SUB-ASSEMBLY
1. Separate the reserve tank cap sub-assembly from the reserve tank.

  Fig 14: Identifying Reserve Tank Cap Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR ASSEMBLY
1. Remove the radiator assembly from the vehicle together with the cooling fan assembly.

  Fig 15: Removing Radiator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the cooler condenser assembly and radiator assembly do not come into contact with each other.
2. Remove the 3 claws and the cooling fan assembly from the radiator assembly.

  Fig 16: Installing Cooling Fan Assembly To Radiator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 radiator support cushions and the 2 lower radiator supports.

  Fig 17: Removing Radiator Support Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
