Rear Brake Flexible Hose: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

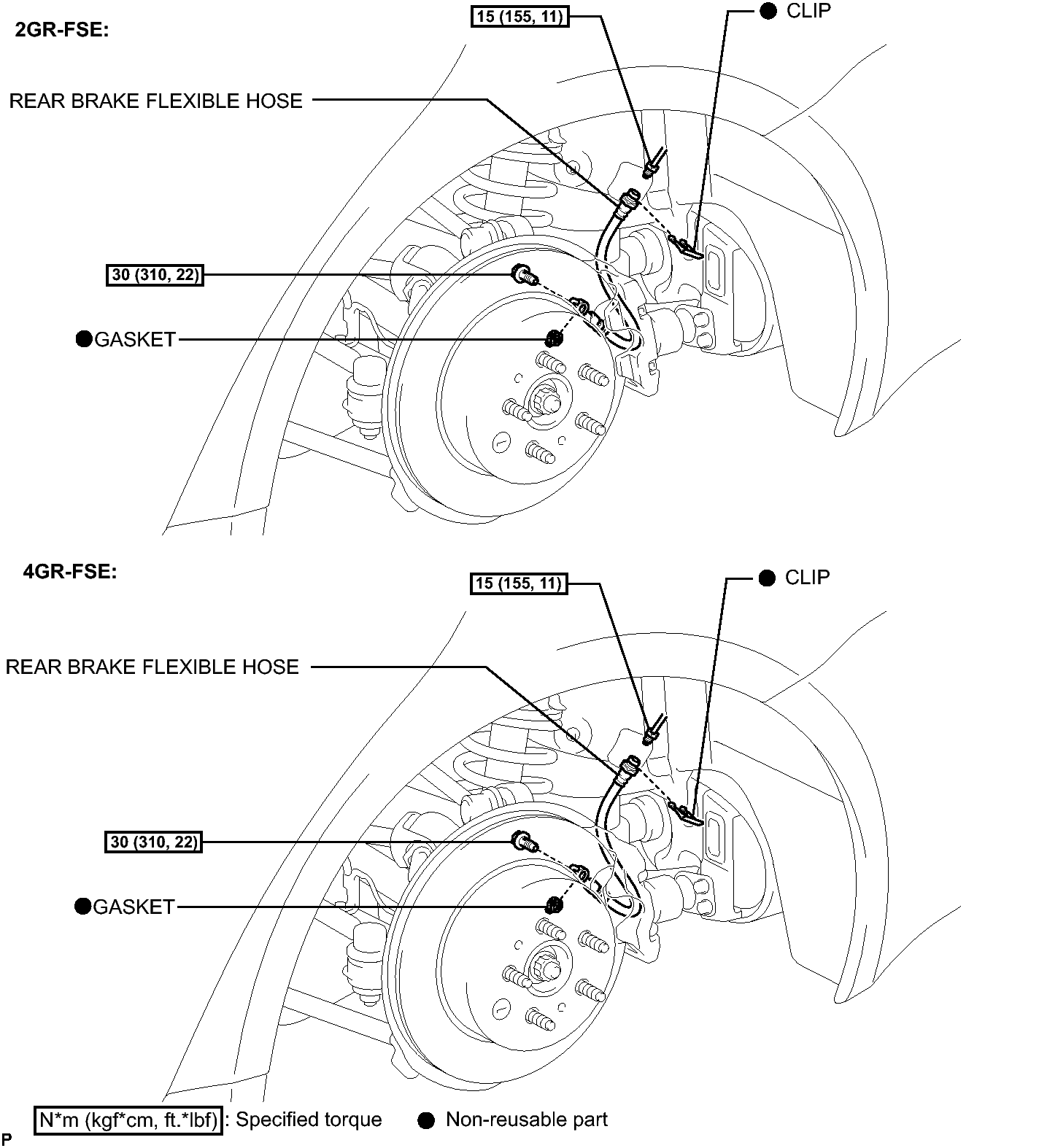

Fig 1: Rear Brake Flexible Hose Replacement Components With Torque Specifications
GTY113845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
