FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 4GR-FSE): Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

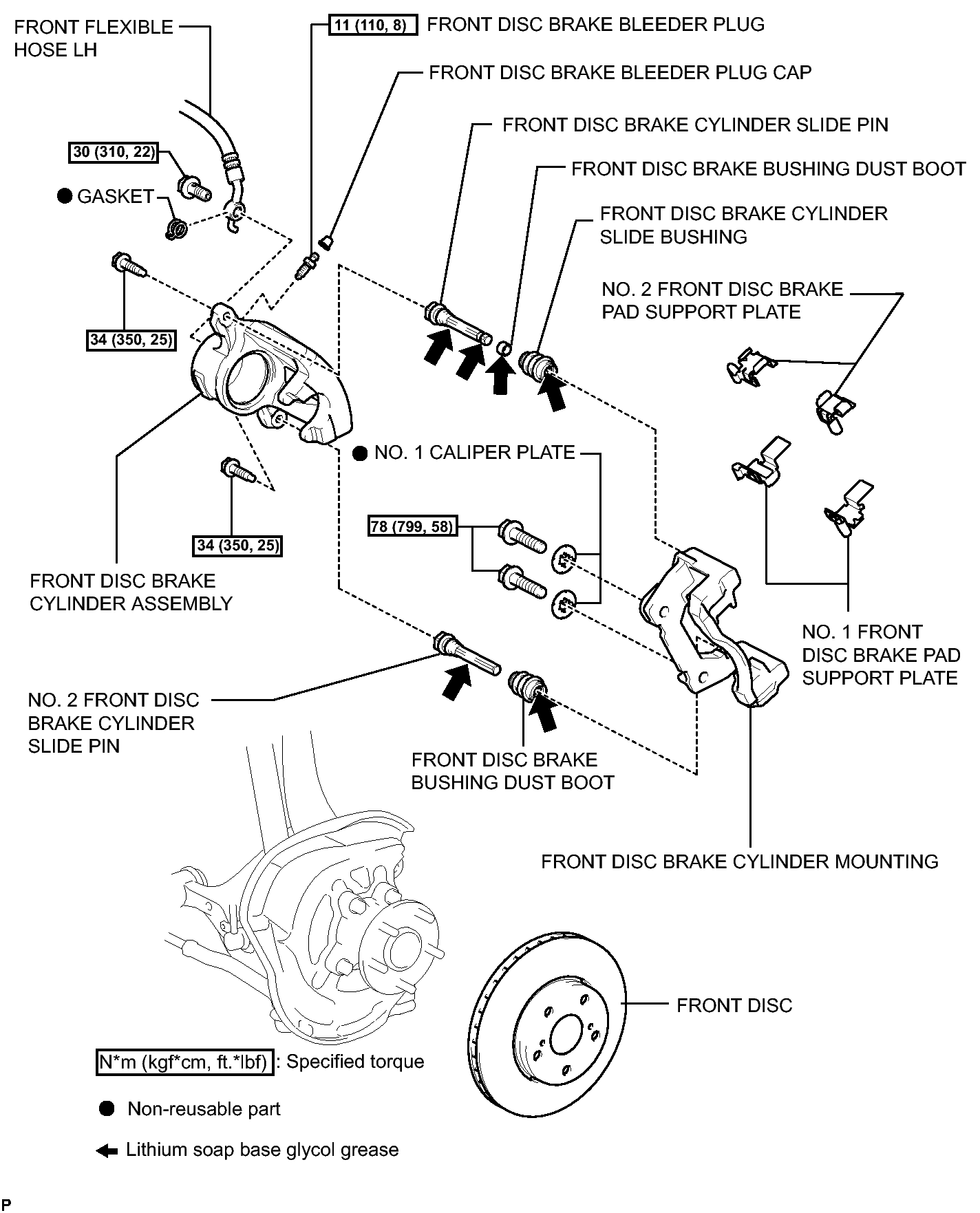

Fig 1: Identifying Front Brake (For 4GR-FSE) Replacement Components With Torque Specifications (1 Of 2)
GTY140973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

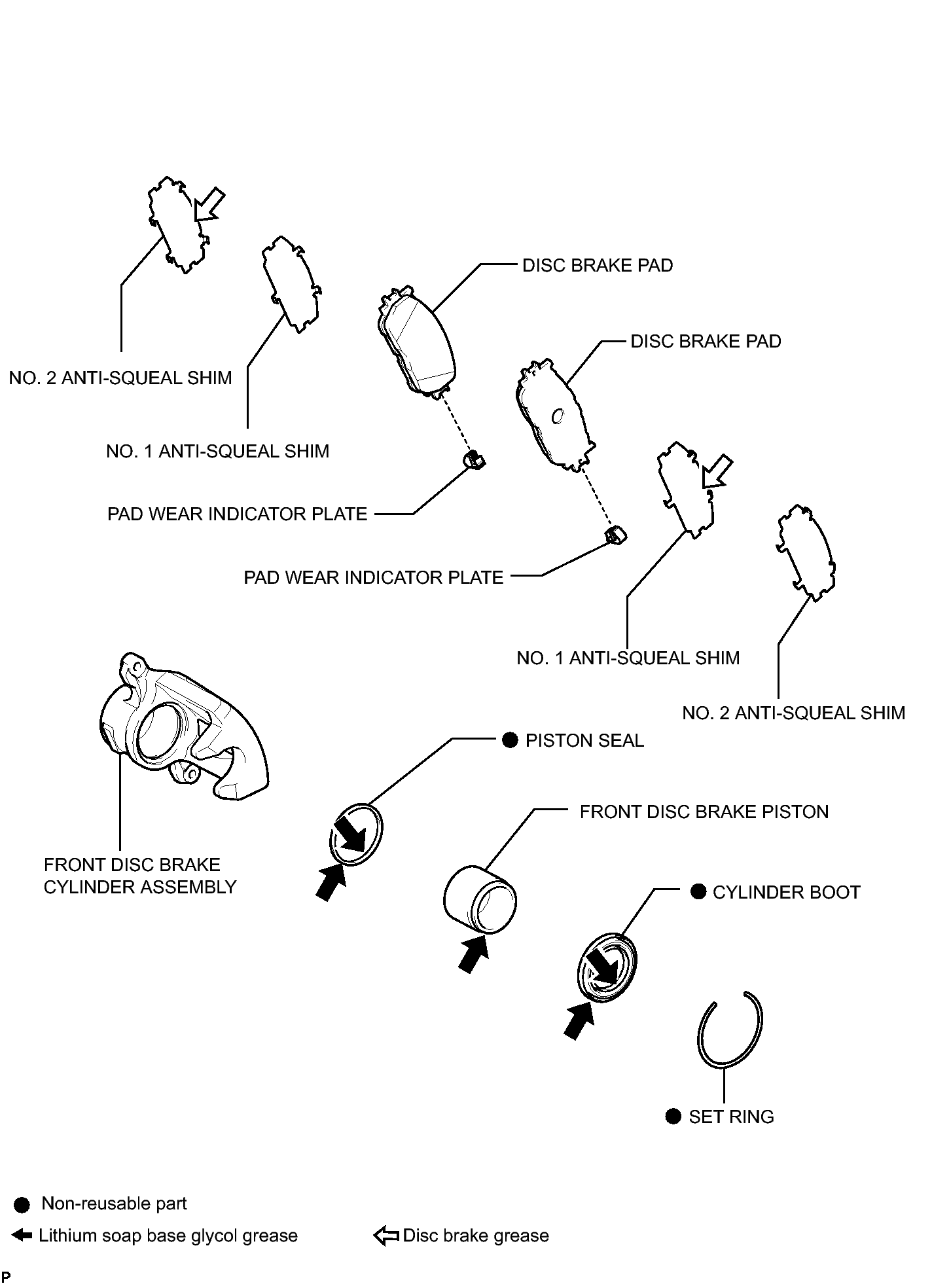

Fig 1: Identifying Front Brake (For 4GR-FSE) Replacement Components (2 Of 2)
GTY123610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
